Ultratek De

Dielectric full body padded harness with insulated hardware, designed for fall arrest protection in energized work environments.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Webbing Material	Polyester
Webbing Breaking Strength	23 kN (Minimum)
Safe Working Load Capacity	100 kg
Colour	Red and Black
Feature	Harness with insulated dielectric hardware
Weight	2.50 kg Approx. (Only Harness)

Key features

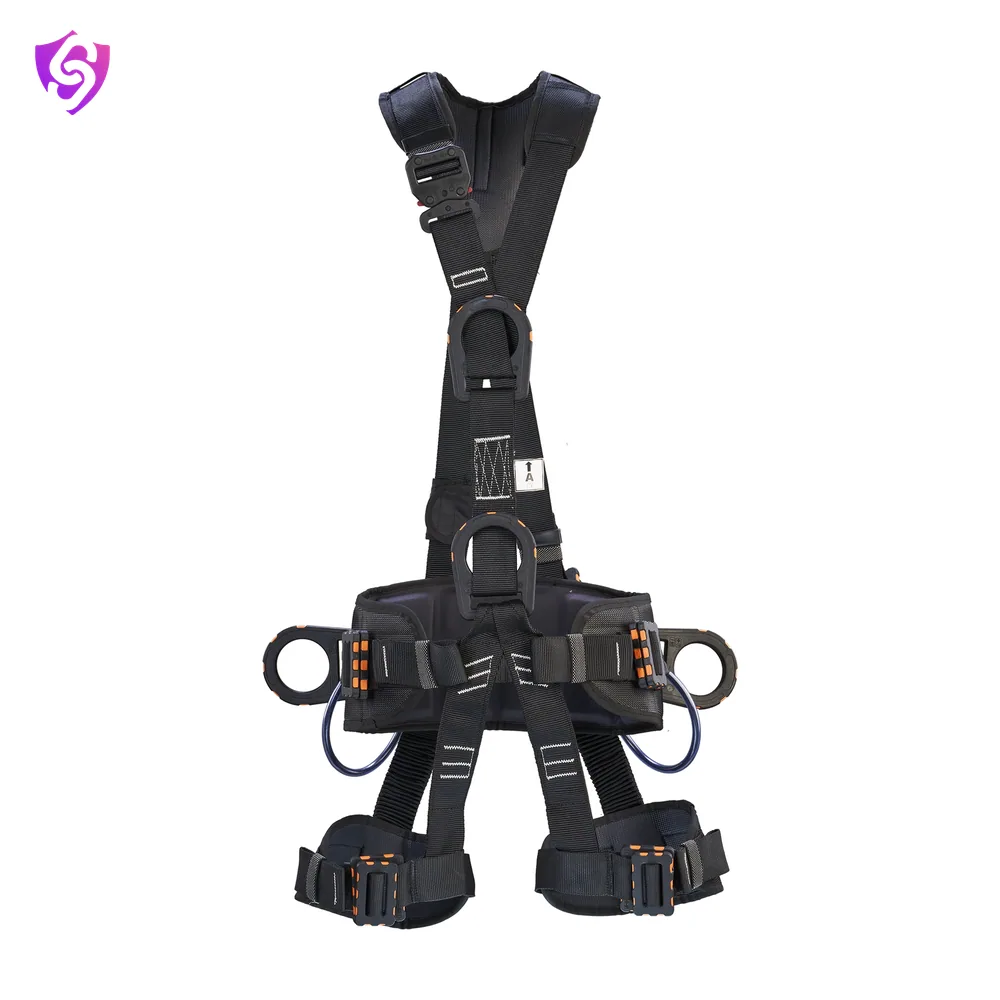

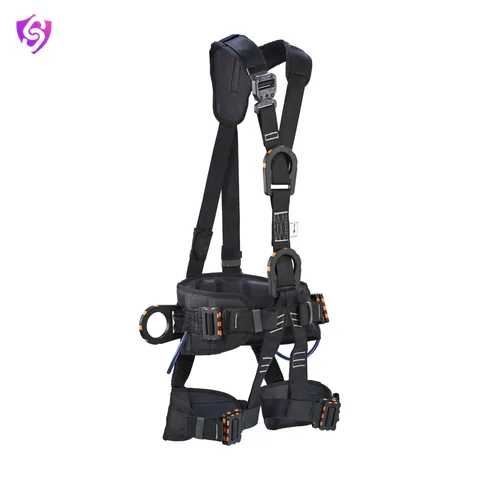

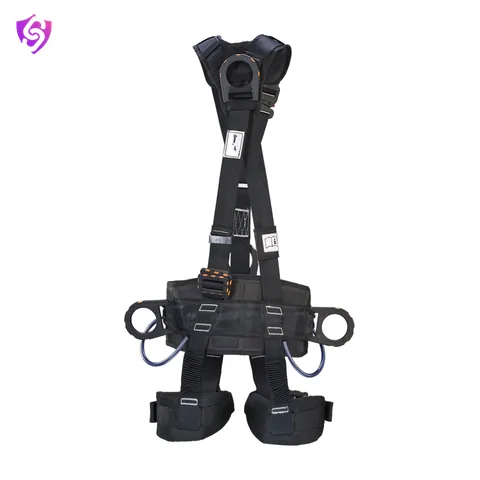

The harness comes with one dorsal D-ring and one sternal D-ring on chest for fall arrest two lateral D-rings on the waist for work positioning and one ventral D-ring at waist level for rope access.
Built-in fall indicator enables quick and easy post-fall inspection.
Padded waist with two lateral D rings for secure & comfortable work positioning.
Y-shaped padding on shoulder make it comfortable, simple, fast and easy access and donning.
Fully adjustable shoulder, chest, and thigh and waist straps for a secure & customized fit.
Insulated hardware makes it ideal for electrical applications and work in glass-lined reactors.
All metal parts are made of non-conductive Di-electric insulated (9kV) hardware, ensuring complete dielectric protection.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
