Honeywell

BW™ Flex

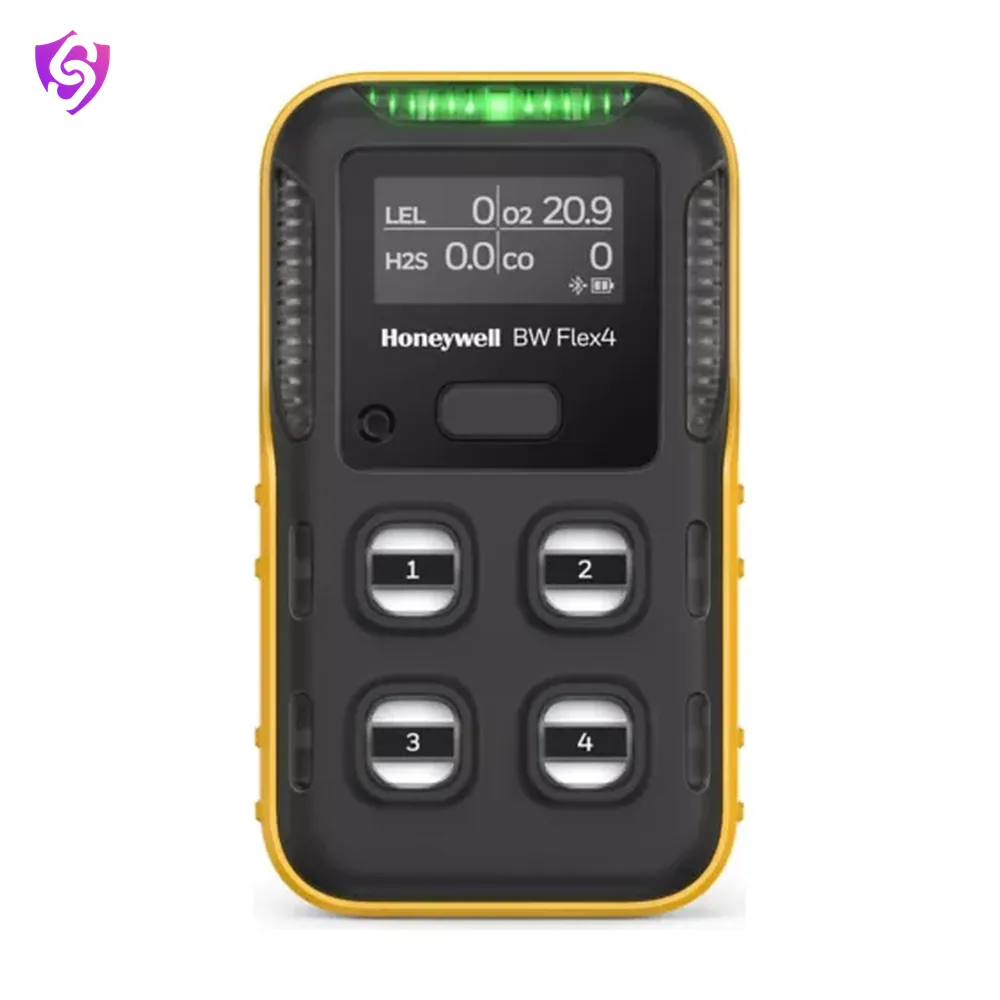

Name: Honeywell BW™ Flex
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	189 gram
Weight range	With Catalytic LEL: 189 g (6.7 oz) with Alligator Clip and 173 g (6.1 oz) with Klick Fast Stud gram / With IR LEL: 186 g (6.6 oz) with Alligator Clip and 170 g (6.0 oz) with Klick Fast Stud gram
Instrument Size	108.2mm x 61.5mm x 43.2mm (4.29in x 2.44in x 1.7in) with Alligator Clip
Sensor Range	CL2: 20 ppm / CO-H: 1000 ppm / CO: 1000 ppm / COSH Dual Toxic CO: 1,000 ppm / COSH Dual Toxic H2S: 100 ppm / H2S: 200 ppm / HCN: 50 ppm / LEL-CB-F: 100% LEL / LEL-CB-UF: 100% LEL / LEL-IR: 100% LEL / NDIR-CO2: 5% VOL (50000 ppm) / NO2: 20 ppm / NO: 100 ppm / O2: 25% VOL / SO2: 20 ppm
Humidity Range	0%-95% RH percent / 5 to 95% RH (Non-Condensing) percent
Minimum Temperature	-40 degree Celsius
Maximum Temperature	60 degree Celsius
Alarm Included	Yes
Series Name	Honeywell BW Flex 4/5 Series
Alarm Type	Audible (95 dB) / Vibrating / Visual
Alarm Settings	Low, High, TWA, STEL, Negative Drift, OL (Over Limit), Multi-Alarm, Low Battery
Battery Run Time	40 Days @8 Hours of Use/Day with NDIR CH4 Sensor hours / Up to 15 Hours with Catalytic LEL hours
Batteries Required	Yes
Batteries Included	Yes
Standards	ATEX, IEC Ex, CSA, FTZU, INMETRO, GOSST, CCCF, CPA, KRS, MED, DNV, SABS, FCCID, IC, UKCA, CE
Certifications - Hazloc	ATEX, IECEX
Datalogging	45 days of data at 15 sec interval, 8hrs/day
Filter Type	Catalytic Bead Filtered
Filter Required	Yes
Filter Included	Yes
User Options	Always ON / Apply Enforcement Policies / Assign Worker and Location Assignments / Change High, Low, TWA and STEL Alarm Set Points / Latching Alarms / Peak Hold Function / Set Calibration and/or Bump Test Reminders
Sensor Type	Catalytic, IR
Number of Sensors Included	4
Warranty	3 Years
Wireless Technology	BLE
Ingress Protection	IP66/68 / IP66/IP68
Gas Type	H2S, CO, O2, LEL, SO2
External Calibration	IntelliDox Instrument Management System
Decibels	95 decibel
Combustible Concentration	LEL-CB-F 100% LEL / LEL-CB-UF 100% LEL / LEL-IR 100% LEL

Key features

With Catalytic LEL: 189 g (6.7 oz) with Alligator Clip and 173 g (6.1 oz) with Klick Fast Stud gram
With IR LEL: 186 g (6.6 oz) with Alligator Clip and 170 g (6.0 oz) with Klick Fast Stud gram
