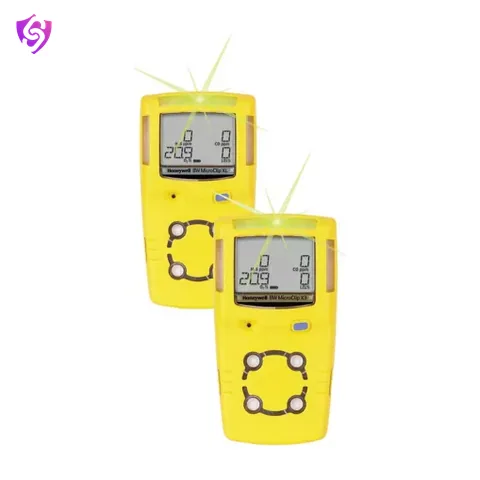

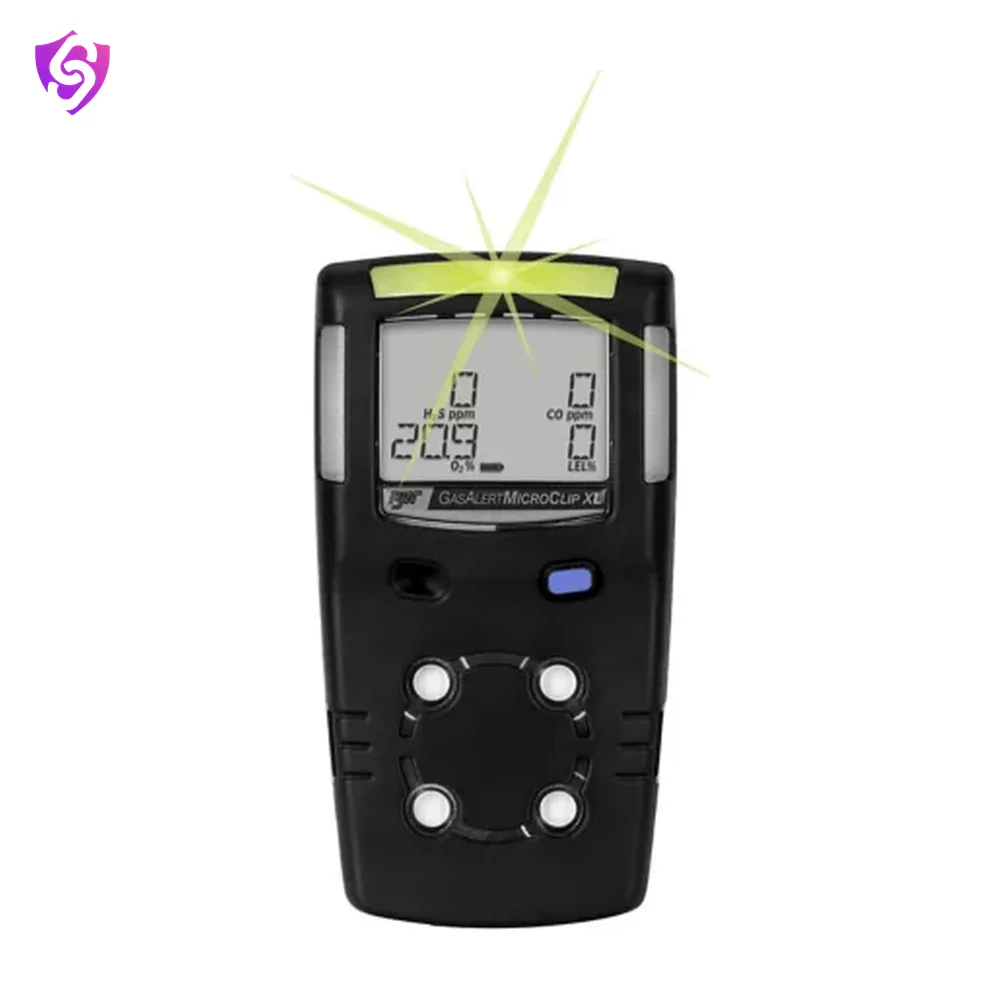

BW™ MicroClip Series Multi-Gas Detector

Name: Honeywell BW™ MicroClip Series Multi-Gas Detector
Brand: Honeywell

The industrial Honeywell BW™ MicroClip Series is the world’s most popular multi-gas portable detector, delivering long runtime and reliability – plus small size, low cost and the easiest user experience.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	190 gram / 6.7 ounce av
Weight range	Honeywell BW MicroClip X3: 179 g gram / Honeywell BW MicroClip XL: 190 g gram
Instrument Size	11.3 x 6.0 x 3.2 cm / 4.4 x 2.4 x 1.2 in
Sensor Range	CO: 0-500 ppm / H2S: 0-100 ppm / LEL: 0-100% and 0-5.0% v/v / O2: 0 to 30.0%
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	122 degree Fahrenheit / 50 degree Celsius
Alarm Included	Yes
Languages	English, French, German, Spanish, Portuguese
Housing Color	Black / Yellow
Alarm Type	Audible / Vibrating / Visual
Charging Time	6 hours
Battery Run Time	18 Hours; Recharges in Less than 6 Hours hours
Batteries Required	Yes
Batteries Included	Yes
Standards	ATEX: CE II 1 G. Ex ia IIC T4 Ga / CE European Conformity / CSA: Class I, Div 1, Group A, B, C, D / IECEx: Ex ia IIC T4 Ga
Datalogging	16 hours at 15-second intervals
Display Type	LCD
Display Readout	Real-Time Gas Concentrations Shown on LCD
Display Included	Yes
User Options	Auto Zero On Start Up / Calibration Lock / Combustible Gas Measurement (% LEL or % by Volume Methane) / Confidence Beep / Force Bump Test when Overdue / Force Calibration when Overdue / IntelliFlash™ Interval / Language Choices / Latching Alarms / Low Alarm Acknowledge / O2 Auto Calibration on Start Up / Safe Display Mode / Sensor On/Off / Set Bump Test Interval / Set Custom Start Up Message / Set STEL Interval / Stealth Mode / User-Settable Calibration Gas Level
Number of Gas Sensors Included	4
Operating Life	5 years
Warranty	2 Years on Honeywell BW MicroClip XL / 3 Years on Honeywell BW MicroClip X3
Wireless Technology	BLE
Software License	Device Management with Honeywell SafetySuite
Gas Type	H2S, CO, O2, LEL
External Calibration	Compatible with IntelliDox Docking Station for Automated Bump Tests and Calibration
Decibels	95 decibel
Combustible Concentration	0-100% LEL

Key features

NEW! Honeywell BW™ MicroClip X3 for extended reliability with 3-year warranty
Honeywell BW™ MicroClip XL for standard operation with 2-year warranty
Simultaneously monitor for up to four gases including O2, H2S, CO and combustibles
Battery runtime of 18 hours in normal temperatures: cold weather guarantee of at least 12 hour runtime for full warranty period.
Guaranteed to run an entire shift – even at -4°F (-20°C)
NEW! IP68 rating – unmatched water protection Compact, lightweight and easy to use – with one-button operation and no extensive training Device management with Honeywell Safety Suite.
Flashing green IntelliFlash™ light for compliance at a glance
Reflex™ Technology ensures sensor responsiveness for safety, uptime and worker confidence
Readily enables to communicate with Motorola MOTOTRBO
