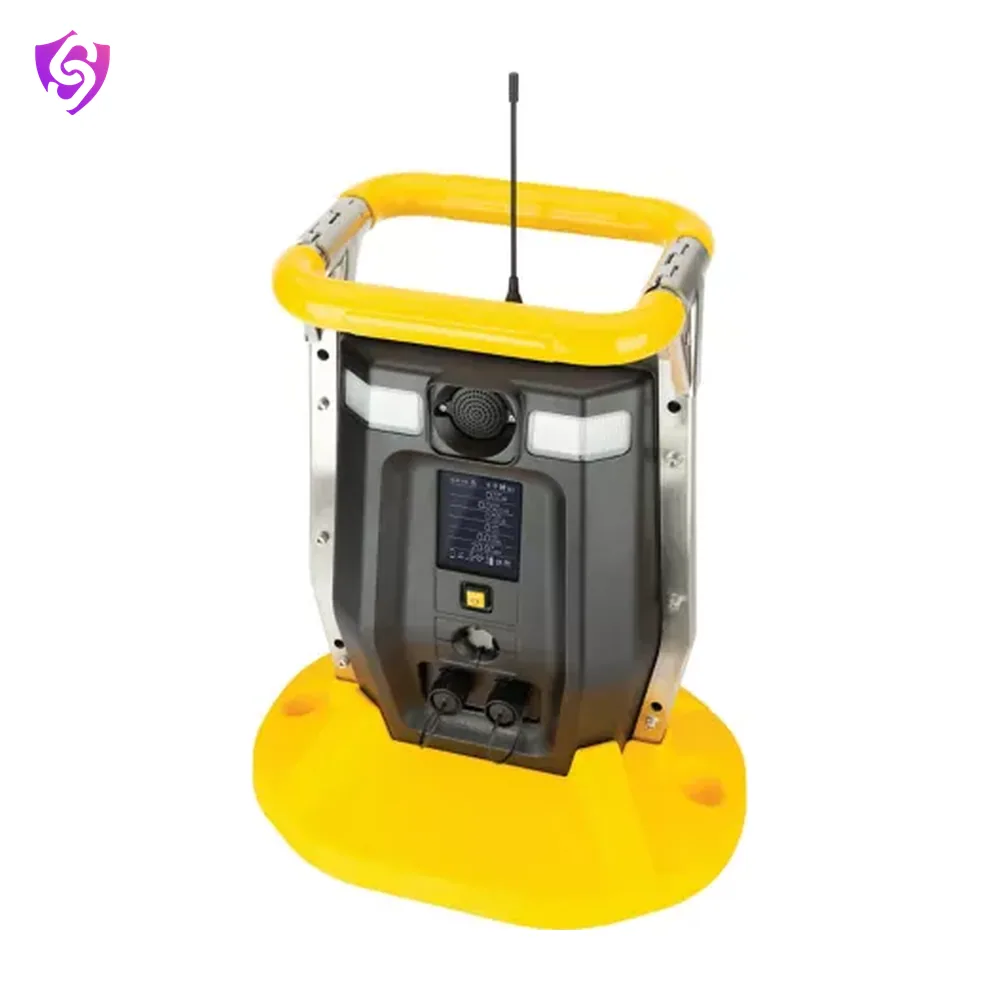

BW™ RigRAT Transportable Multi-gas Area Monitor

Elevate your gas detectors’ potential with Honeywell's expert maintenance services!

Specifications

Brand	Honeywell
Warranty	2 Years
Alarm Included	Yes
Alarm Type	Visual/Audible
Datalogging Interval	1 Min
Datalogging Capable	Yes
Datalogging	4 Months
Display Included	Yes
Display Type	TFT LCD
User Options	One-button operation and programing
Wireless Technology	BLE, MESH, WiFi
Series Name	BW™ RIGRAT
Instrument Size	H: 47 cm W: 40 cm D: 29 cm
Weight range	8 kg
Humidity Range	5 to 95% RH (Non-Condensing)
Sensor Range	LEL (0-100%LEL), CO2 (0-50000ppm), VOC (0-2000ppm), CO (0-2000ppm), H2S (0-1000ppm), SO2 (0-20ppm), O2 (0-30%vol), NO (0-250ppm), NO2 (0-20ppm), HCN (0-50ppm), NH3 (0-100ppm), Cl2 (0-50ppm)
Display Matrix	240 x 320 pixel
Sampling Pump Range	100ft (30m)
Sensor Ports	6
Wireless Communication	Bluetooth / Wi-Fi
Wireless Enabled	Yes
Gas Type	LEL, CO2, VOC, CO, H2S, SO2, O2, NO, NO2, HCN, NH3, Cl2
GPS	Yes
Wireless Approvals	IEEE 802.15.4 868
Outdoor Location	GPS and Wi-Fi
Communication	Bluetooth / Wi-Fi
Noise Sensor	60 to 125 dB
Model Number	BWRR100P/BWRR100D
Keypad Type	One Button
Minimum Temperature	-40 degree Celsius / -40 degree Fahrenheit / 20°C
Maximum Temperature	140 degree Fahrenheit / 60 degree Celsius / 60°C

Wireless Safety Perimeter
Honeywell TouchPoint Plus Compatible
Line Power for extended runtime in the field
Inert mode that prevents alarm in normal ambient air
Large, easy-to-read display
Rugged, weatherproof design, with optional protective cage
I/O ports providing additional input capabilities and local executive activation
