Honeywell

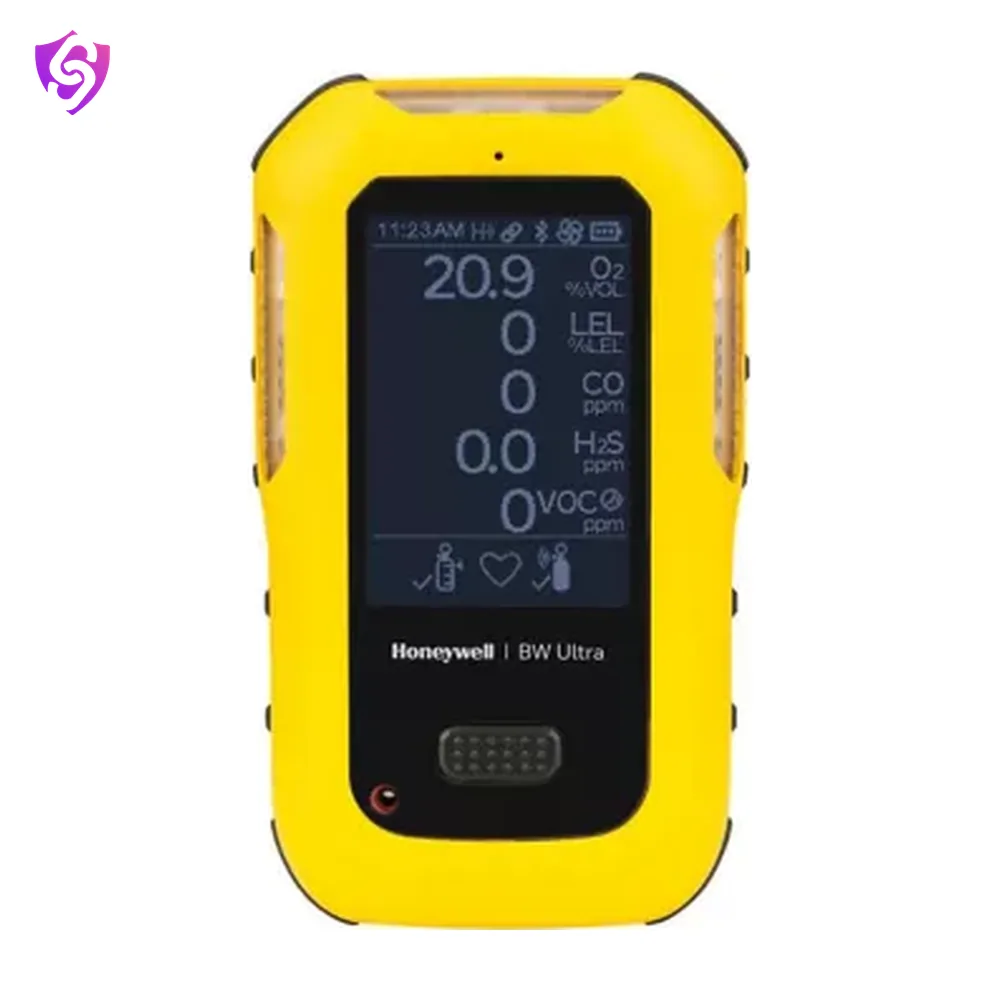

BW™ Ultra Multi Gas Detector

Name: Honeywell BW™ Ultra Multi Gas Detector
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	14.5 ounce av / 411 gram
Weight range	411 g gram
Instrument Size	5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm
Sensor Range	O2 (0-25%), LEL (0-100%LEL), H2S (0-100ppm), CO (0-2000ppm), SO2 (0-100ppm), H2 (0-2000ppm), CO2 (0-50000ppm), NH3 (0-100ppm), VOC (0-1000ppm), Cl2 (0-20ppm), NO2 (0-50ppm), HCN (0-100ppm), NO (0-200ppm)
Humidity Range	5 to 95% RH (Non-Condensing) percent / 5%-95% percent
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	131 degree Fahrenheit / 50 degree Celsius
Alarm Included	Yes
Series Name	Honeywell BW Ultra
Languages	English, French, German, Portuguese, Spanish, Simplified Chinese and Russian
Alarm Type	Audible (95 dB) / Vibrating / Visual
Alarm Settings	Low, High, STEL, TWA, OL (Over Limit)
Battery Run Time	14 Hours with PID or IR Sensor hours / 14-18 hours / 18 hours
Batteries Required	Yes
Batteries Included	Yes
Standards	ATEX: II 1G Ex ia IIC T4 Ga / CE European Conformity / IECEx: Ex ia IIC T4 Ga / UL: Class I, Div 1, Group A, B, C, D / UL: Class I, Zone 0, Group IIC
Datalogging Sessions	45 Days Based on 8 Hours Shifts Every 15 sec Logging
Datalogging Interval	15 sec
Datalogging Capable	Yes
Datalogging	45 days based on 8 hour shifts every 15 seconds logging
Display Type	Dot Matrix Display
Display Included	Yes
User Options	Adjust STEL Period (5-15 min in 1 min Intervals) / Bump Test Interval / Calibration Due Date (1 to 365 Days, or Set to Zero for Off) / Calibration Interval / Calibration Span Levels / Individual Sensor Enable/Disable / LEL and PID Correction Factors / Languages: English, French, German, Portuguese, Spanish, Simplified Chinese and Russian / Latching Alarms / Select Combustible Gases Measurement: 0-100% LEL or Methane Gas 0-5.0% v/v / Stealth Mode
Sampling Pump Range	75ft (23m) meter
Sampling Pump Location	Built-In Pump
Sampling Pump Included	Yes
Sensor Type	Infrared (IR)
Number of Sensors Included	15
Warranty	2 Years Battery / 3 Years on Instrument / Sensors: 3 Years (2 Years NH3, 1 Year PID and Cl2)
Wireless Technology	BLE / Bluetooth (BLE)
