Honeywell

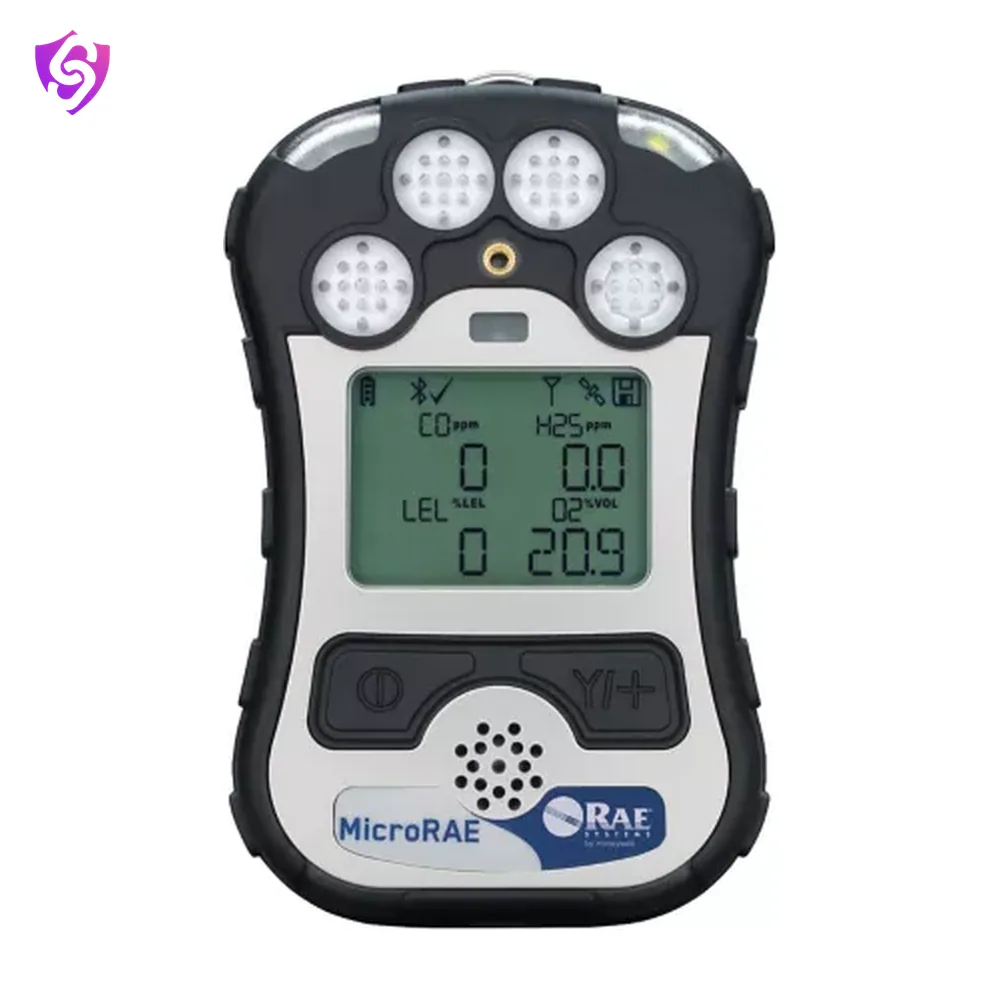

MicroRAE Wireless 4-gas monitor

Once signed in, you may be able to access additional documents for your account.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	206 gram / 7.03 ounce av
Instrument Size	4.6 in x 3.0 in (2.6 in) 3.0 in x 0.9 in [117 mm x 76 mm (66) 74 mm x 24 mm]
Weight range	206 g (Including Li-Ion Battery and Clip) gram
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Sensor Range	O2 (0-30%vol), LEL (0-100%LEL), CO(0-1000ppm), H2S (0-100ppm), HCN (0-50ppm)
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	140 degree Fahrenheit / 60 degree Celsius
Alarm Settings	Latching, Non Latching, Manual Override, Low Battery, Wireless Connectivity Alarm, Man Down Alarm
Alarm Type	Audible, Visual, Vibrating / Multi-Tone, Vibration, Flashing LEDs, Display
Alarm Included	Yes
Series Name	MicroRAE
Batteries Required	Yes
Batteries Included	Yes
Battery Run Time	12-15 hours / Continuous Non-Wireless: 15 hours / Continuous Wireless: 12 hours
Calibration Procedures	Bump Test
Calibration	Two-Point Calibration (Manual or Automatic with AutoRAE 2)
Standards	EX: I 2G Ex ia d IIC T4 Gb / EX: II M1 Ex ia I Ma / INMETRO Ex da ia IIc T4 Ga / Korea: Ex ia d IIC T4 / US and Canada: Class I, Div 1, Group A, B, C, and D
Datalogging Interval	Default: 1 min / User-Configurable: 1 to 3,600 sec
Datalogging Capable	Yes
Datalogging	Continuous datalogging (6 month for 4 sensors at 1-minute intervals)
Display Viewing Area	1.73 in x 1.29 in
Display Included	Yes
Display Readout	IntelliFlash™ and Policy Enforcement Indicators / Real-Time Reading of Gas Concentration and Man Down Indicators / STEL, TWA, Peak and Minimum Values / Wireless and GPS On/Off and Reception Quality
Display Type	Monochrome Graphic Display
Filter Included	No
Filter Type	Auxiliary Filter
User Options	Alarms: latching, non latching, or manual override / User-Configurable Datalogging Intervals
Sampling Pump Included	No
Sensor Type	Catalytic Bead / Electrochemical
Warranty	1 Year for HCN sensor / 2 Years Device and Sensors

Key features

Available with several wireless technology options: Mesh / Wi-Fi / NB-IoT
Real-time gas concentration reading, location, alarm and status enabled by state of-the-art wireless technology
Bluetooth® low energy connection to a Smart Phone device for uplink data communication and device configuration • Compact and lightweight design
IP-67 water- and dust-resistant case Strong, protective, concussion-proof design
Unmistakable five-way local and remote wireless notification of alarm conditions
Short bump test and calibration time
Filtered LEL sensor options to inhibit sensor poisoning
Global approval for worldwide acceptance.
