Honeywell

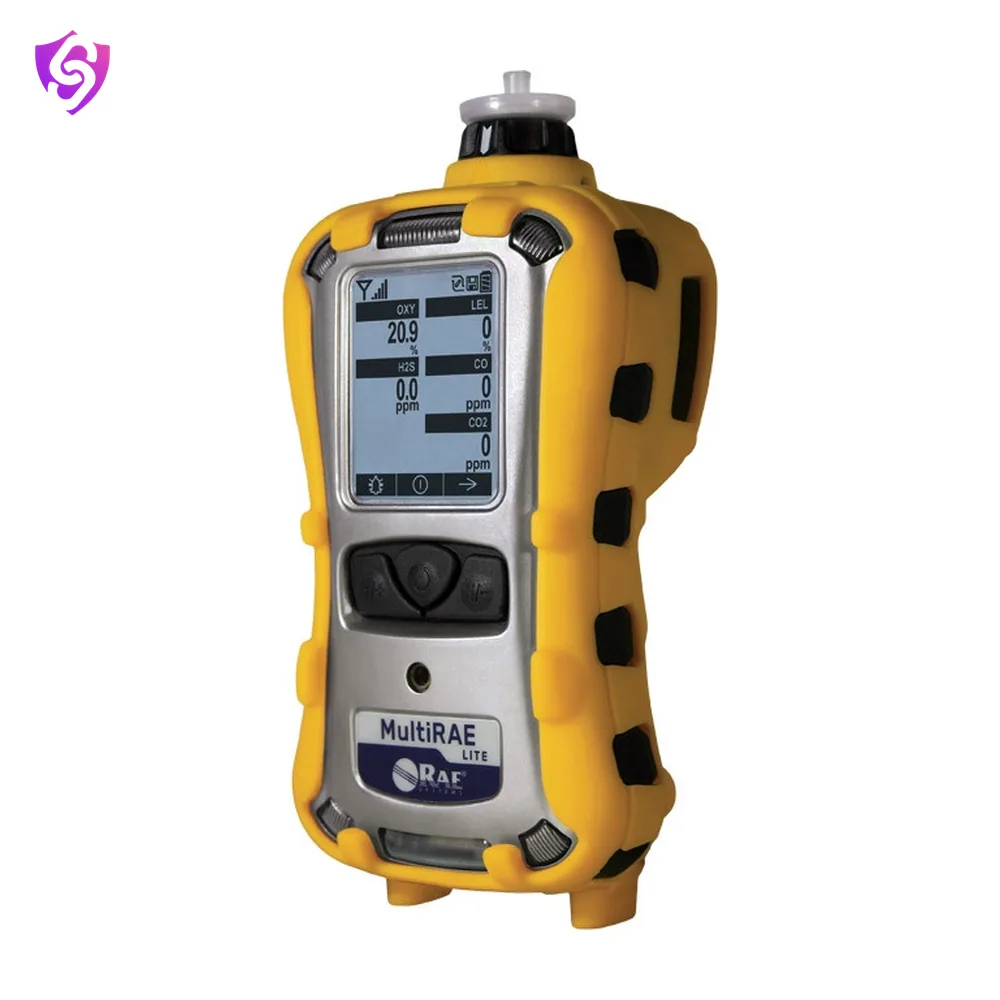

MultiRAE Lite Pumped ATX PID LEL Portable Multi Gas Monitor

Name: Honeywell MultiRAE Lite Pumped ATX PID LEL Portable Multi Gas Monitor
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	880 gram
Weight range	880 g gram
Instrument Size	7.6 in x 3.8 in x 2.6 in D / [193 mm x 96.5 mm x 66 mm]
Sensor Range	NH3 (0-100ppm)- CO (0-2000ppm)- H2S (0-200ppm)- CL2 (0-50ppm)- CLO2 (0-1ppm)- ETO (0-100ppm)- HCHO (0-10ppm)- HCN (0-50ppm)- CH3-SH (0-10ppm)- NO (0-250ppm)- NO2 (0-20ppm)- O2 (0-30%vol)- PH3 (0-20ppm)- SO2 (0-20ppm)- VOC (0-5000ppm)- LEL (0-100%LEL)- CO2 (0-50000ppm)
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Minimum Temperature	-20 degree Celsius
Maximum Temperature	50 degree Celsius
Alarm Included	Yes
Series Name	MultiRAE Lite Pumped ATX PMP PID LEL
Languages	Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish
Alarm Type	Audible (95 dB @30 cm) / Vibrating / Visual (Flashing Bright Red LEDs)
Charging Time	6 hours / 9 hours
Battery Run Time	Alkaline Adapter with 4 X AA Batteries 6 Hours hours / Extended Duration Li-Ion (18 Hours) hours / Rechargeable Li-Ion (12 Hours) hours
Batteries Required	Yes
Batteries Included	Yes
Calibration Procedures	Automatic with AutoRAE 2 Test and Calibration System or Manual
Calibration	Automatic with AutoRAE 2 Test and Calibration System or Manual
Standards	ATEX: 0575 II 1G Ex ia IIC T4 Ga / ATEX: 2G Ex ia d IIC T4 Gb with IR Sensor Installed / ATEX: I M1 Ex ia I Ma / CSA: Class I, Div 1, Group A, B, C, D, T4 / CSA: Class II, Div 1, Group E, F, G T85°C / IECEx/ANZEx: Ex ia I Ma / IECEx/ANZEx: Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor Installed / IECEx: Ex ia IIC T4 Ga / IECEx: Ex ia d IIC T4 Gb with IR Sensor Installed / IECEx: I M1 Ex ia I Ma
Certifications - Performance	ISA-12.13.01 / LEL CSA C22.2 No. 152
Datalogging Interval	1 min
Datalogging Capable	Yes
Datalogging	Continuous Datalogging (6 Months for 5 Sensors at 1 Min Intervals, 24/7) / User-Configurable Datalogging Intervals (from 1 to 3,600 Secs)
Display Type	Monochrome Graphical LCD Display with Backlighting and Automatic Screen “Flip” Feature
Display Readout	Man Down Alarm On/Off; Visual Compliance Indicator; Battery Status; Datalogging On/Off; Wireless On/Off and Reception Quality / Real-Time Reading of Gas Concentrations; PID Measurement Gas and Correction Factor / STEL, TWA, Peak and Minimum Values
Display Matrix	128 x 160
Display Included	Yes
User Options	3 operation and programming keys (Mode- Y/+- and N/-). Multiple User Options can be selected / User-Configurable Datalogging Intervals (from 1 to 3,600 Secs)
Sampling Pump Range	100ft (30m) meter
Sampling Pump Included	Yes
Sensor Type	PID Combustible LEL
