Honeywell

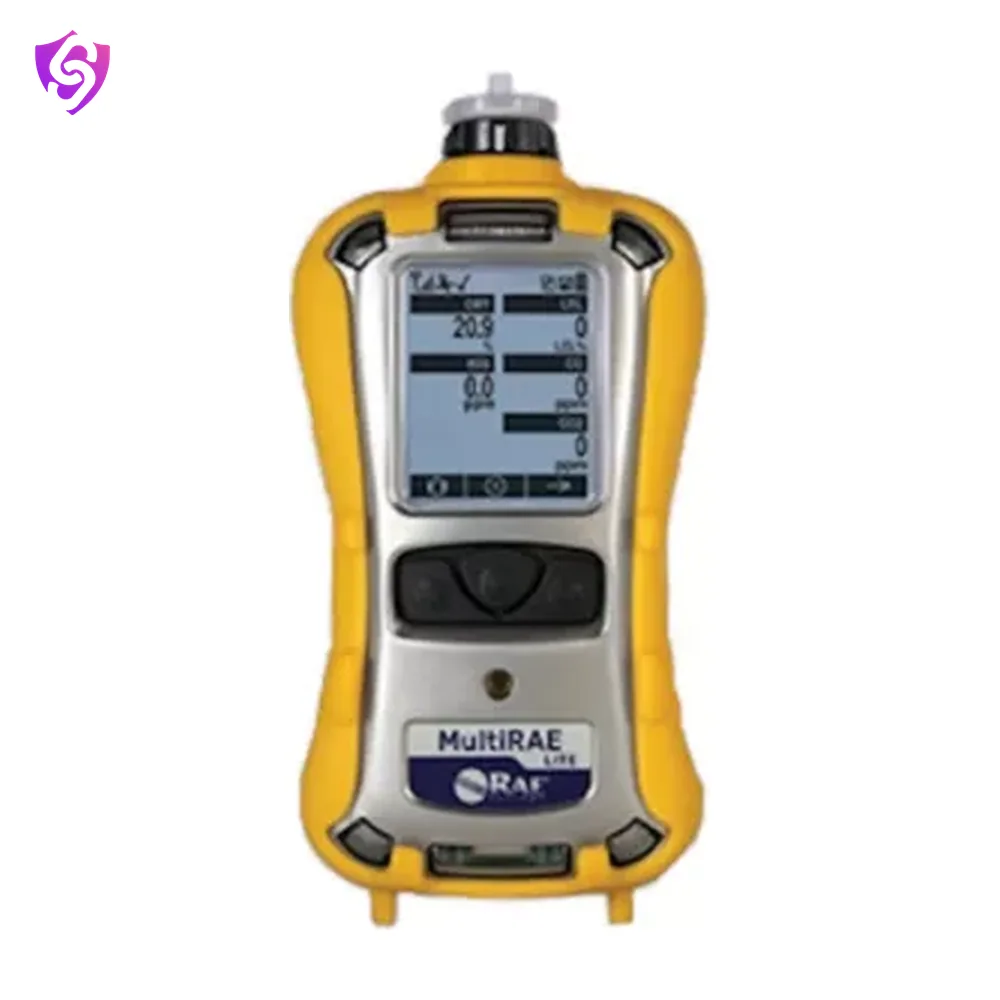

MultiRAE Lite Pumped Multi Gas Detector

Name: Honeywell MultiRAE Lite Pumped Multi Gas Detector
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	31 ounce av / 880 gram
Instrument Size	7.6 in x 3.8 in x 2.6 in D / [193 mm x 96.5 mm x 66 mm]
Weight range	880 g gram
Humidity Range	0 to 95% RH (Non-Condensing) percent / 0%-95% percent
Sensor Range	Carbon Dioxide (CO2) NDIR 0 to 50,000 ppm, Hydrogen Sulfide (H2S) 0 to 100 ppm, Carbon Monoxide (CO) 0 to 500 ppm, Sulfur Dioxide (SO2) 0 to 20 ppm, Oxygen (O2) 0 to 30% Vol / NH3 (0-100ppm), CO (0-2000ppm), H2S (0-200ppm), CL2 (0-50ppm), CLO2 (0-1ppm), ETO (0-100ppm), HCHO (0-10ppm), HCN (0-50ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), VOC (0-5000ppm), LEL (0-100%LEL), CO2 (0-50000ppm)
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	122 degree Fahrenheit / 50 degree Celsius
Alarm Included	Yes
Series Name	MultiRAE Lite Pumped
Languages	Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish
Alarm Type	Audible (95 dB @30 cm) / Vibrating / Visual (Flashing Bright Red LEDs)
Batteries Required	Yes
Batteries Included	Yes
Battery Run Time	12-18 hours / Alkaline Adapter with 4 X AA Batteries 6 hours / Extended Duration Li-Ion 18 hours / Rechargeable Li-Ion 12 hours
Charging Time	6 hours / 9 hours
Calibration Procedures	Automatic with AutoRAE 2 Test and Calibration System or Manual
Calibration	Automatic with AutoRAE 2 Test and Calibration System or Manual
Certifications - Performance	ISA-12.13.01 / LEL CSA C22.2 No. 152
Standards	ATEX: 0575 II 1G Ex ia IIC T4 Ga / ATEX: 2G Ex ia d IIC T4 Gb with IR Sensor Installed / ATEX: I M1 Ex ia I Ma / CSA: Class I, Div 1, Group A, B, C, D, T4 / CSA: Class II, Div 1, Group E, F, G T85°C / IECEx/ANZEx: Ex ia I Ma / IECEx/ANZEx: Ex ia IIC T4 Ga Ex ia d IIC T4 Gb with IR Sensor Installed / IECEx: Ex ia IIC T4 Ga / IECEx: Ex ia d IIC T4 Gb with IR Sensor Installed / IECEx: I M1 Ex ia I Ma
Datalogging Interval	1 min
Datalogging Capable	Yes
Datalogging	Continuous Datalogging (6 Months for 5 Sensors at 1 Min Intervals, 24/7) / User-Configurable Datalogging Intervals (from 1 to 3,600 Secs)
Display Included	Yes
Display Readout	Man Down Alarm On/Off; Visual Compliance Indicator; Battery Status; Datalogging On/Off; Wireless On/Off and Reception Quality / Real-Time Reading of Gas Concentrations; PID Measurement Gas and Correction Factor / STEL, TWA, Peak and Minimum Values
Display Matrix	128 x 160
Display Type	Monochrome Graphical LCD Display with Backlighting and Automatic Screen “Flip” Feature
User Options	3 operation and programming keys (Mode, Y/+, and N/-). Multiple User Options can be selected / User-Configurable Datalogging Intervals (from 1 to 3,600 Secs)
Sampling Pump Included	Yes
Sampling Pump Range	100ft (30m) meter
Number of Sensors Included	25
