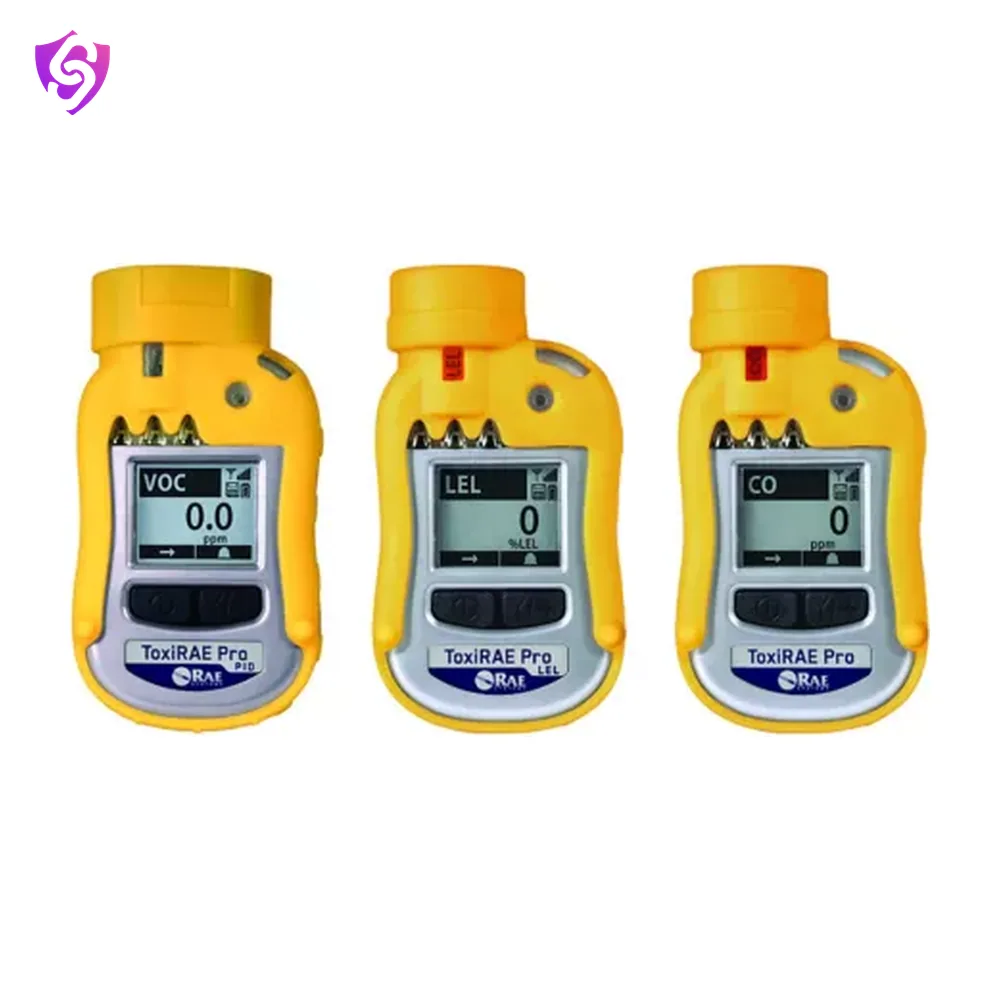

ToxiRAE Pro CO2 Safe Area Personal Monitor
Once signed in, you may be able to access additional documents for your account.
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Warranty | 1 Year on All Other Sensors, Battery, and Other Consumable Parts / 2 Years on Non-Consumable Components / Four years on O2 sensor |
| Maximum Temperature | 55 degree Celsius |
| Weight | 220 gram |
| Alarm Included | Yes |
| Alarm Type | Audible (95 dB) / Audible, Visual, Vibrating / Vibrating / Visual (Flashing Bright Red LEDs) |
| Datalogging Interval | 1 Min / 1 to 3,600 sec |
| Datalogging | Continuous (3 Months) |
| Display Readout | Real-Time Reading of Gas Concentrations in ppm or mg/m3; Battery Status; Data Logging ON/OFF; Wireless ON/OFF and Reception Quality / STEL, TWA, and peak values |
| User Options | Wireless remote alarm notification; audible (95 dB @ 30 cm) |
| Wireless Technology | MESH Network |
| Includes | AC Adapter (100 to 240 V, 50/60 Hz AC to 12 V DC) / CD with Documentation / Calibration Adapters / Calibration Card, Quality Certificate, and Warranty/Registration Card / Charging and PC Communication Cradle / PC Communication Cable / Quick Start Guide / ToxiRAE Pro CO2 Monitor with Sensor as Specified, Alligator Clip, Protective Rubber Boot, and Rechargeable Battery Installed |
| Instrument Size | 4.6 in H x 2.4 in W x 1.2 in D (118 x 60 x 30 mm) |
| Weight range | 220 g |
| Dimension | H: 118 mm W: 60 mm D: 30 mm |
| Humidity Range | 0 to 95% RH (Non-Condensing) |
| Sensor Range | 0 to 50,000 ppm |
| Calibration | Automatic with AutoRAE 2 Test and Calibration System or Manual |
| Sensor Type | Nondispersive Infrared Sensor. Range: 0 to 50,000 ppm. Resolution: 100 ppm |
| Gas Type | CO2 |
| Communication and Data Download | Data Download and Instrument Setup on PC via Charging and PC Communication Cradle / Data Download via AutoRAE 2 Automatic Test and Calibration System / Wireless Data and Status Transmission via Built-in RF Modem (Optional) |
| Wireless Frequency | ISM License-Free Bands |
| Wireless Network | Closed-Loop Network with the EchoView Host / ProRAE Guardian Real-Time Wireless Safety System |
| Wireless Range | ToxiRAE Pro to Mesh Router or EchoView Host - 660 ft (200m) / ToxiRAE Pro to RAELink3 Mesh or RAELink3 Z1 Mesh Modems - 330 ft (100m) |
| Battery Life | 11 Hours |
| Keypad Type | 2 Buttons for Operation and Programming |
| Resolution | 100 ppm |
| Sampling | Diffusion |
| Batteries Required | Rechargeable Li-Ion Battery |
| Batteries Included | Yes |
| Battery Run Time | 11 Hours |
Key features
- 1 Year on All Other Sensors, Battery, and Other Consumable Parts
- 2 Years on Non-Consumable Components
- Four years on O2 sensor
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
