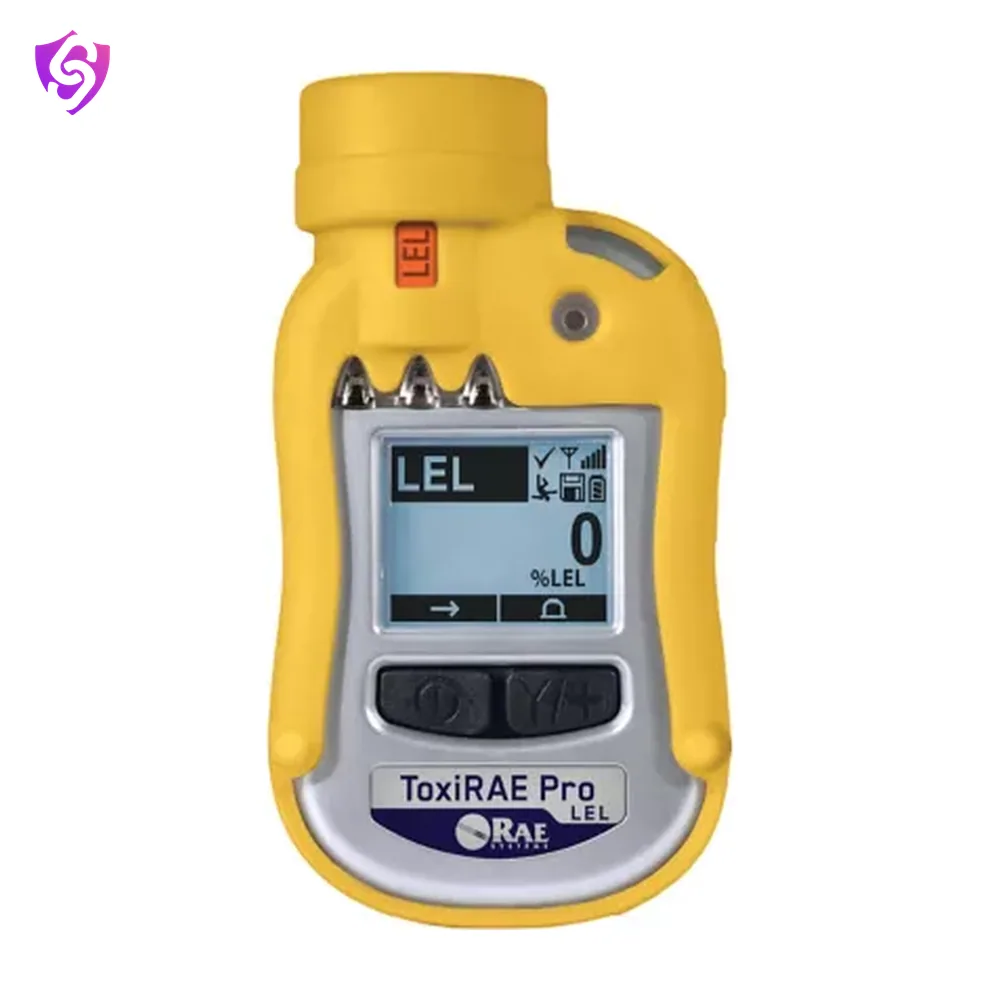

ToxiRAE Pro LEL Gas Monitor
Once signed in, you may be able to access additional documents for your account.
ATEXIECEX
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Warranty | Four years on O2 sensor |
| Weight | 235 gram / 8.29 ounce av |
| Maximum Temperature | 131 degree Fahrenheit / 55 degree Celsius |
| Alarm Included | Yes |
| Alarm Type | Audible (95 dB) / Vibrating / Visual (Flashing Bright Red LEDs) |
| Datalogging Interval | 1 to 3,600 sec |
| Datalogging | Three-month capacity |
| Display Type | Graphical LCD Display with White LED Backlighting |
| Display Readout | Real-Time Reading of % of LEL; Battery Status; Data Logging ON/OFF; Wireless ON/OFF and Reception Quality - Peak Values |
| Display Included | Yes |
| User Options | Wireless remote alarm notification; audible (95 dB @ 30 cm) |
| Wireless Technology | MESH Network |
| Includes | AC Adapter (100 to 240 V, 50/60 Hz AC to 12 V DC) / CD with Documentation / Calibration Adapters / Calibration Card, Quality Certificate, and Warranty/Registration Card / Charging and PC Communication Cradle / PC Communication Cable / Quick Start Guide / ToxiRAE Pro LEL Monitor with Sensor, Alligator Clip, Protective Rubber Boot, and Rechargeable Battery Installed |
| Weight range | 235 g |
| Instrument Size | 4.6 in H x 2.4 in W x 1.2 in D (118 x 60 x 30 mm) |
| Dimension | H: 118 mm W: 60 mm D: 30 mm |
| Sensor Range | LEL (0-100%LEL) |
| Humidity Range | 0%-95% |
| Calibration | Automatic with AutoRAE 2 Test and Calibration System or Manual |
| Sensor Type | Catalytic Bead LEL Sensor |
| Gas Type | LEL |
| Wireless Range | ToxiRAE Pro PID to Mesh Router, EchoView Host, or Mesh Reader2 - 330 ft (100m) / ToxiRAE Pro PID to RAELink3 Mesh or RAELink3 Z1 Mesh Modems - 33 ft (10m) |
| Wireless Network | Closed-Loop Network with the EchoView Host / ProRAE Guardian Real-Time Wireless Safety System |
| Wireless Frequency | ISM License-Free Bands |
| Sampling | Diffusion |
| Resolution | 0.01 ppm |
| Keypad Type | 2 Buttons for Operation and Programming |
| Communication and Data Download | Data Download and Instrument Setup on PC via Charging and PC Communication Cradle / Data Download via AutoRAE 2 Automatic Test and Calibration System / Wireless Data and Status Transmission via Built-in RF Modem (Optional) |
| Battery Life | 12 Hours |
| Battery Run Time | 12 Hours |
| Standards | ATEX, IECEX |
Key features
- Personal wireless monitor for combustible gases
- Delivers results as a percentage of the lower explosive limit (LEL)
- Most extensive on-board gas library in its class
- 55 built-in correction factors
- 5-way local and remote wireless alarm
- Water-, dust-, and shock-resistant
- Built-in man-down alarm
- Compatible with AutoRAE 2
- Fully automatic bump testing and calibration
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
