Udyogi

Fusion Pro

Name: Udyogi Fusion Pro
Brand: Udyogi

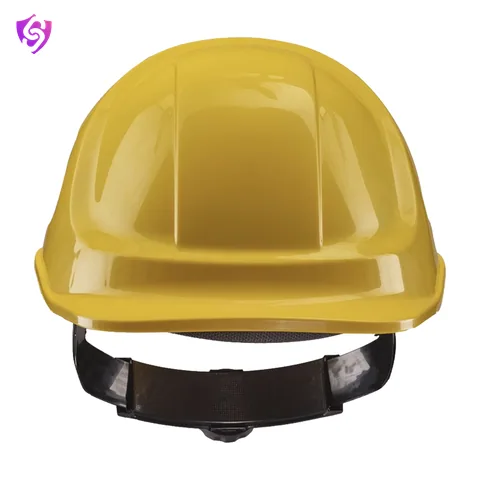

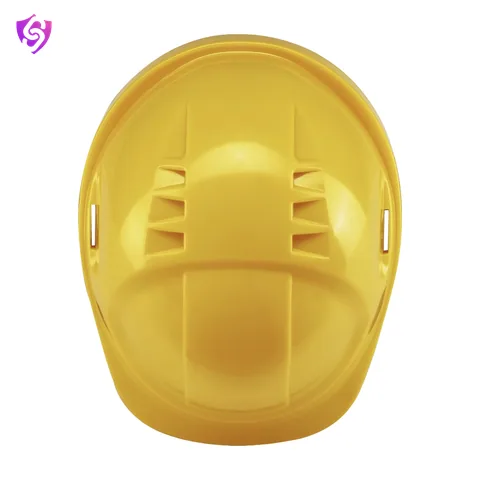

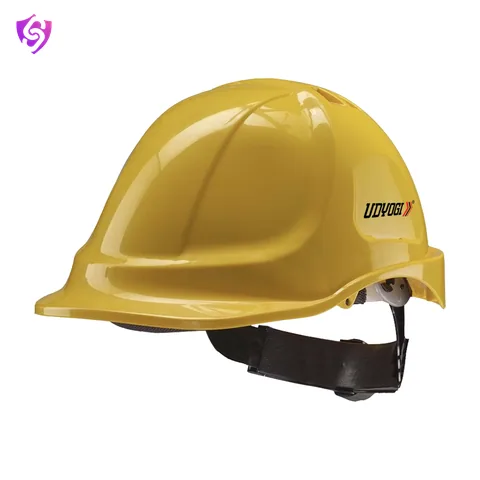

ABS safety helmet with unique ratchet mechanism- short peak, ventilated shell, 8-point textile suspension .

EN 397

Colour: Yellow

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Shell	ABS (Acrylonitrile Butadiene Styrene)
Ventilation	3-point Ventilation on both sides
Suspension	8-point textile suspension
Head adjustment	Ratchet fit
Peak size	20 mm
Accessories slot size	30 mm
Internal vertical clearance	40 mm
Wearing height	109 mm
Circumference of Headband	520 mm – 660 mm
Cradle width	20.2 mm
Chin strap width	19.85 mm
Weight	422 grams
Standards	EN 397:2012 + A1:2012
Colours	Yellow, Red, White, Blue, Green, Orange

Key features

This helmet features a robust and tough shell, providing exceptional impact resistance and durability.
Short Peak for enhanced vision

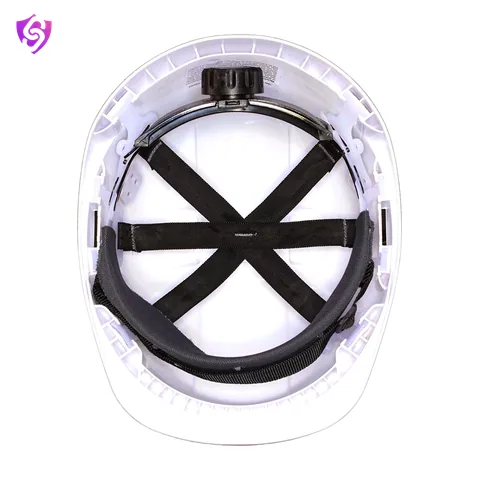

8-point textile suspension distributes the load perfectly while impact occurs
Ratchet- pull to loose and push to locking mechanism ensures the secure fit
This helmet is designed with Position adjustable and an extended nape section to offer greater neck coverage.
3-point ventilation on each side for air circulation
Premium, moisture-resistant, removable sweatband
Excellent water drainage system.
Adjustable chin strap for customized fit and comfort.

Applications

Cement
Automobile
Transmission and Distrinution
Telecom
Manpower service

Care and replacement

Inspect the shell and harness before each use. Replace the helmet after any significant impact, or if the shell is cracked, dented or discoloured. Replace within the service life marked by the manufacturer. Do not paint or apply solvents to the shell.
