Udyogi

Prithvi

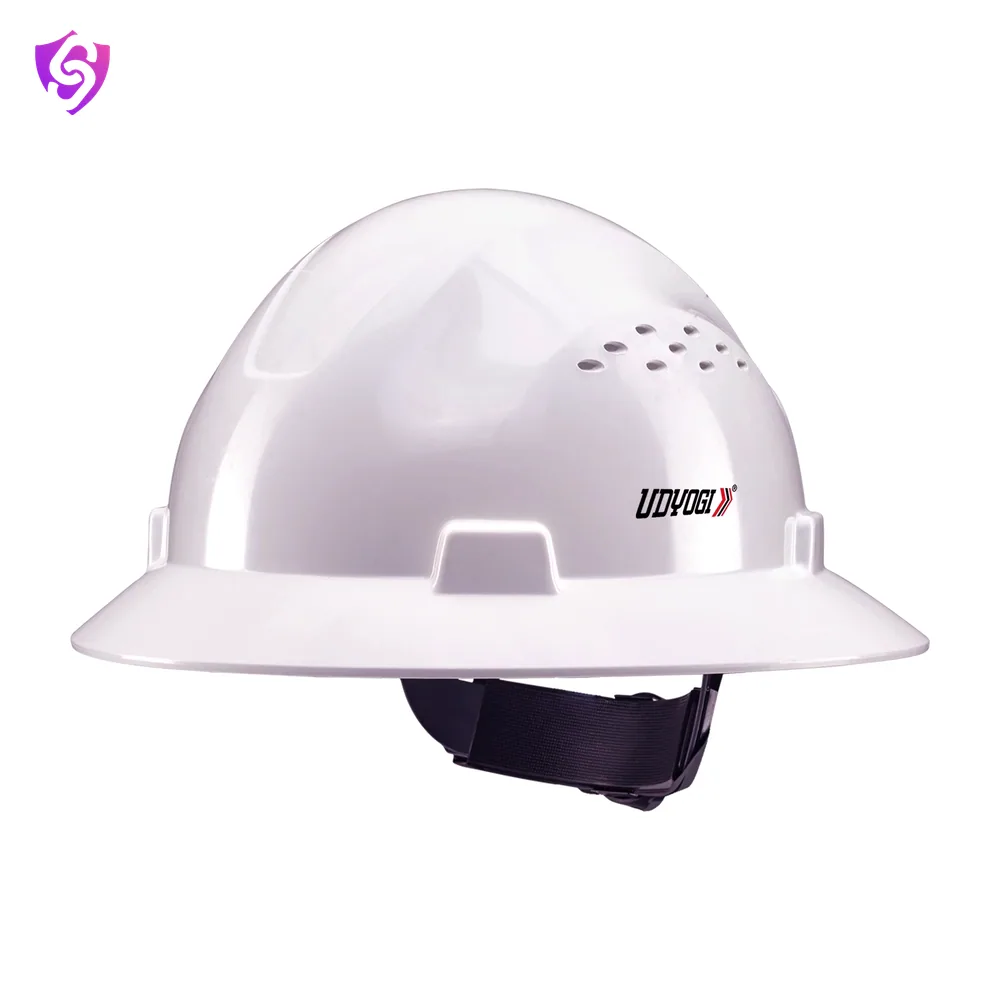

Name: Udyogi Prithvi
Brand: Udyogi

Full-brim safety helmet- unique vented shell with 4-point textile ratchet suspension system.

EN 397

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Shell	HDPE (High Density Polyethylene)
Ventilation	9-point ventilation
Suspension	4-point textile suspension
Head Adjustment	Ratchet fit
Brim width	40 mm.
Internal vertical clearance	47 mm.
Wearing height	80 mm.
Circumference of Headband	520-630 mm.
Cradle width	21 mm.
Chin Strap	Y-shape, width- 19 mm.
Weight	546 grams
Standards	EN397:2012+ A1:2012

Key features

This helmet features a robust shell providing exceptional impact resistance and durability.
Full brim for protection against the elements
Extended rear brim offers additional sun and rain protection, as well as a 360° lip to bead the rain

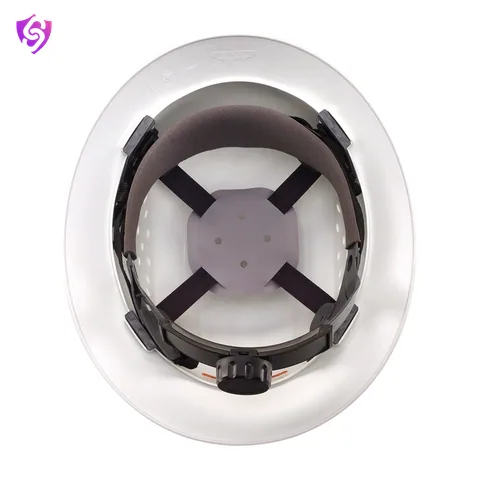

4-point textile suspension with ratchet fit adjustment cradle materials and secure fit ensure long-lasting comfort and stability, making it ideal for extended use.

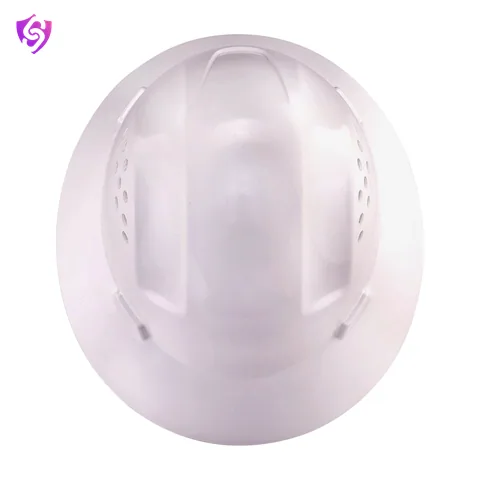

9-point ventilation on each side for air circulation.
Y shape chin strap holds the shell properly.
Full brim around the shell, drains rain water.

Applications

Construction & Civil
Service Utility
Oil & Gas

Care and replacement

Inspect the shell and harness before each use. Replace the helmet after any significant impact, or if the shell is cracked, dented or discoloured. Replace within the service life marked by the manufacturer. Do not paint or apply solvents to the shell.
