Ultra Tuff 2001 LRX

Name: Udyogi Ultra Tuff 2001 LRX
Brand: Udyogi

Toughest, non-vented, polycarbonate safety helmet with 4-point textile ratchet- tested as per ANSI class E (Electrical Test).

IS 2925ANSI Z89.1

Colour: Yellow

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Shell	Polycarbonate
Ventilation	Non-vented
Suspension	4-point textile suspension
Head adjustment	Ratchet fit
Peak size	44 mm
Accessories slot size	30 mm
Internal vertical clearance	35 mm
Wearing height	86 mm
Circumference of Headband	530 mm - 610 mm
Cradle width	25 mm
Chin strap width	19.58 mm
Weight	432 grams
Standards	IS 2925:1984 ANSI Z89.1-2014
Colours	Yellow, Red, White, Green, Orange, Black

Key features

Shell made of polycarbonate, 99.9 % UV protected.
Tested as per ANSI Class E (20,000 volt for 3 minutes).
Greater impact resistance, crack resistance with cross ribs and Glossy Finish.
More durable & heat resistant than HDPE & ABS helmets yet light weight.

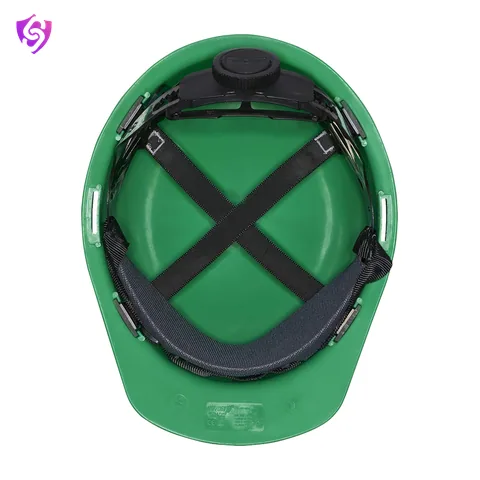

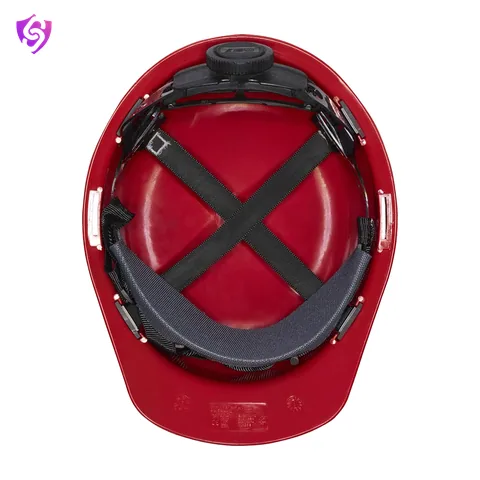

4-point textile suspension with ratchet fit adjustment.
Adjustable chin strap for customized fit and comfort.
High quality sweat band provides comfort.

Applications

Power, Transmission & distribution
Oil & Gas
Cement
Cellular Tower & Infrastructure
Transmission Cleaning
Maintenance

Care and replacement

Inspect the shell and harness before each use. Replace the helmet after any significant impact, or if the shell is cracked, dented or discoloured. Replace within the service life marked by the manufacturer. Do not paint or apply solvents to the shell.
