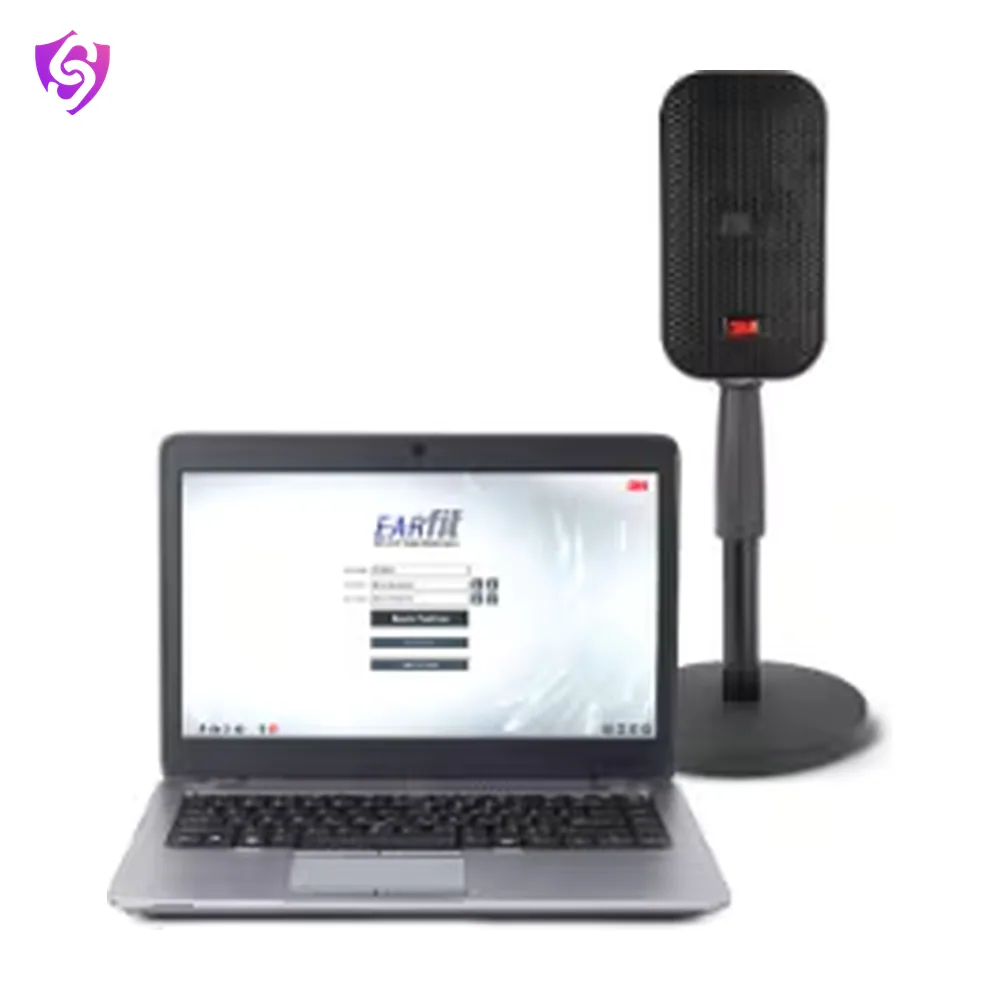

E-A-Rfit™ Dual-Ear Validation System 393-1100

Name: 3M E-A-Rfit™ Dual-Ear Validation System 393-1100
Brand: 3M

3M™ E-A-Rfit™ Dual-Ear Validation System helps determine whether workers are receiving adequate protection from their hearing protector by measuring across 7 standard frequencies in under five seconds, providing a detailed report on the noise attenuation performance of earplugs or earmuffs and a pass or fail rating for

Model 70071674116

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	3M
Model	70071674116
Case Quantity	1
Earplug Size	One Size Fits Most
Product Series	E-A-Rfit
Product Type	Fit Test Kit
Recommended Application	Assembly, Demolition, Facility Maintenance, Grinding, Health & Safety Testing, Sanding, Welding
Recommended Industry	Automotive, Food Processing, Food Safety, General Manufacturing, Metal Fabrication, Military Maintenance, Repair & Operation (MRO), Mining, Oil & Gas, Pharmaceutical, Transportation

Key features

Dual-element, dual-microphone assembly is the key to the system, measuring sound levels inside and outside the hearing protector
Science-based, quantitative testing gives accurate reports of hearing protection
Optional Cloud enables stored centralized data, multiple fit testing systems operating simultaneously across sites, and access restricted to authorized users.
System determines personal attenuation rating (PAR) of individual workers and helps remove measurement, fitting, and spectral uncertainty
Dual-ear design saves time by measuring both ears simultaneously in under five seconds
System tests across 7 standard frequencies (125, 250, 500, 1000, 2000, 4000, 8000 Hz)
Works with a large variety of 3M Hearing Protection Products; earplugs, banded hearing protectors, and earmuffs
Simple, easy-to-use intuitive software
Data can be exported into Excel templates for reports and provide insights to help identify products and techniques that might help improve fit testing efficiency.
Includes Software, Speaker And Impact Resistant Carrying Case.
Free online training and user support
Requires probed test plugs, pods, or cushions

Applications

Engineering and fabrication shops
Power plants and compressor rooms
Mining and quarrying
Textile and printing

Care and replacement

Insert plugs with clean hands. Replace disposable plugs after each use. Inspect ear muff cushions for cracks and replace the hygiene kit at the interval the manufacturer gives.
