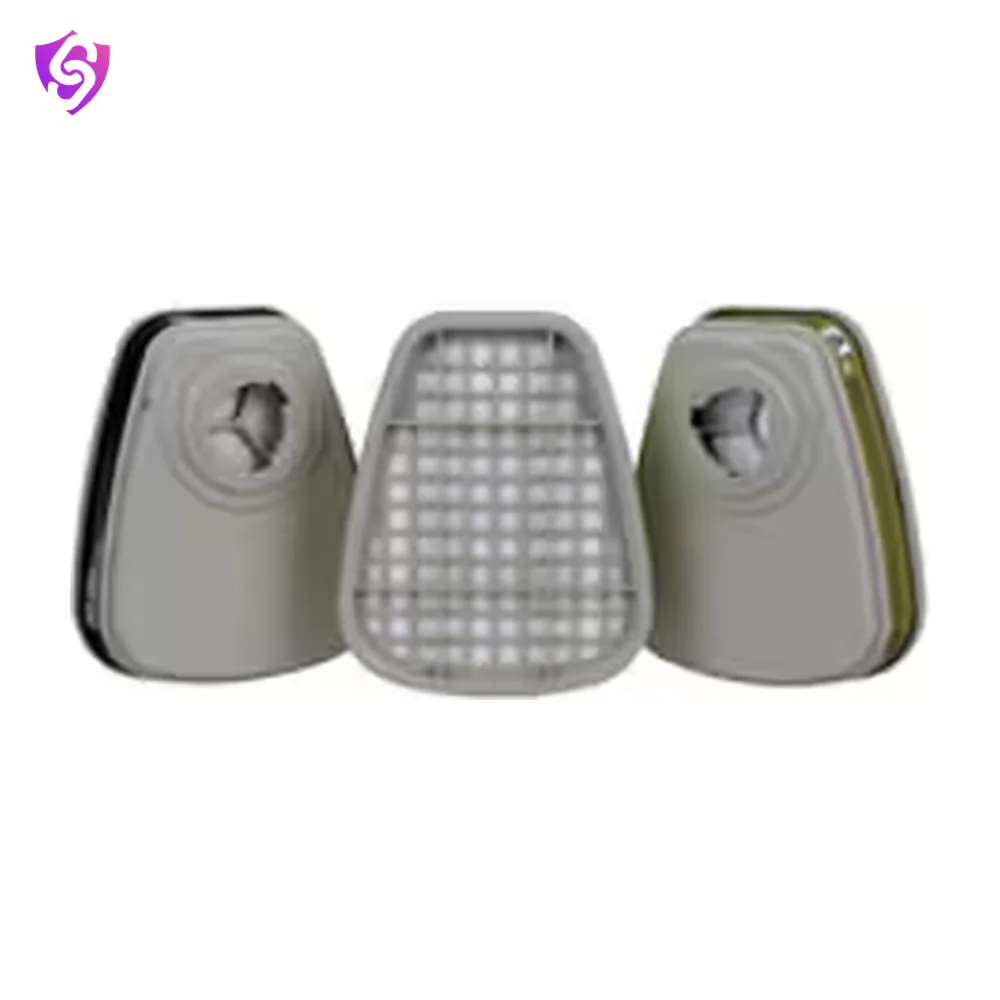

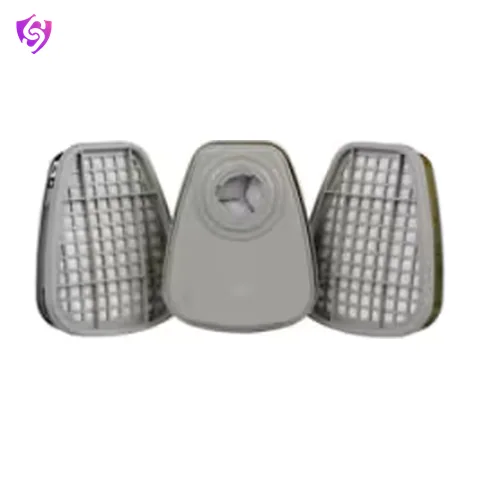

Bayonet Gas & Vapor Cartridges
3M™ Bayonet Gas & Vapor Cartridges have a bayonet-style connection that fits any half or full facepiece 3M™ Bayonet Reusable Respirator and they’re designed to optimize your field of vision.
Model B5005545002 NIOSH
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | 3M |
|---|---|
| Model | B5005545002 |
| Cartridge or Filter Type | Acid Gas, Mercury vapor, Multi-gas & Vapor, Organic Vapor |
| Case Quantity | 30/case, 60/case |
| Connection Type | Bayonet |
| Features | Low Profile |
| For Use With | Reusable Respirators |
| Gas & Vapor Protection Type | Ammonia, Certain Organic Vapors, Chlorine, Chlorine dioxide, Formaldehyde, Hydrogen Fluoride, Hydrogen chloride, Hydrogen sulfide, Mercury vapor, Methylamine, Sulfur dioxide |
| Maintenance Free | No |
| NIOSH Cartridge or Filter Assigned Color Coding | Olive, White, Yellow |
| Overall Height (Metric) | 8.63 cm |
| Overall Length (Metric) | 8.63 cm, 10.67 cm |
| Particulate Protection | Mercury, Organic Vapor |
| Product Code | 6002, 6003, 6006 |
| Product Series | FF-400, 6000, Rugged Comfort 6500, 7000, 7500, 7800S |
| Product Type | Cartridge |
| Protection Focus | Mercury vapor |
| Purpose | Cartridges & Filters |
| Recommended Application | Assembly & Mechanical, Batch-charging, Cleaning, Composite Finishing, Electro-plating, Fertilizing, Maintenance, Manufacturing, Paint Preparation, Painting, Parts Cleaning, Pesticide Application, Remediation, Seal Coatings, Welding |
| Recommended Industry | Construction, Facility Sanitation, Food Safety, General Manufacturing, Marine, Metal Production & Fabrication, Mining, Oil & Gas, Transportation |
| Respirator Compatibility | 3M™ Full Facepiece FF-400 Series, 3M™ Scott™ AV-3000 HT Full Facepiece, 3M™ Scott™ AV-3000 SureSeal Full Facepiece, 3M™ Full Facepiece 6000 Series, 3M™ Half Facepiece 6000 Series, 3M™ Rugged Comfort Half Facepiece 6500 Series, 3M™ Half Facepiece 7500 Series, 3M™ Full Facepiece 7800S Series |
| Specifications Met | Ammonia, Chlorine, Chlorine dioxide, Formaldehyde, Hydrogen Fluoride, Hydrogen chloride, Hydrogen sulfide, Methylamine, Organic Vapor, Sulfur dioxide |
| Standards | NIOSH |
Models
| Cartridge or Filter Type: Acid Gas |
|---|
| Cartridge or Filter Type: Mercury vapor |
| Cartridge or Filter Type: Multi-gas & Vapor |
| Cartridge or Filter Type: Organic Vapor |
| Gas & Vapor Protection Type: Ammonia |
| Gas & Vapor Protection Type: Certain Organic Vapors |
| Gas & Vapor Protection Type: Chlorine |
| Gas & Vapor Protection Type: Chlorine dioxide |
| Gas & Vapor Protection Type: Formaldehyde |
| Gas & Vapor Protection Type: Hydrogen chloride |
| Gas & Vapor Protection Type: Hydrogen Fluoride |
| Gas & Vapor Protection Type: Hydrogen sulfide |
| Gas & Vapor Protection Type: Mercury vapor |
| Gas & Vapor Protection Type: Methylamine |
| Gas & Vapor Protection Type: Sulfur dioxide |
| Connection Type: Bayonet |
Key features
- NIOSH approved for use against a wide range of gases and vapors depending upon the model selected
- Bayonet-style connection fits a wide range of compatible half and full facepiece 3M™ Reusable Respirators
- Use with NIOSH approved 3M™ Half and Full Facepiece Reusable Respirator 6000, 6500, 7500, 7800S or FF-400 Series; or the 3M™ Scott™ AV-3000 SureSeal or AV-3000 HT
- Swept-back, low profile design for optimized field of view and balance
- Lightweight with low breathing resistance
- Quarter turn for a quick and easy installation
- Wide range of applications may reduce inventory needs
- Use for protection in hazardous environments. For workplace/occupational use only
Applications
- Chemical and pharmaceutical plants
- Painting and spray booths
- Cement, mining and quarrying
- Welding and foundries
Care and replacement
Replace disposable respirators when damaged, soiled or hard to breathe through. Change gas filters on the schedule set for the exposure. Clean and store reusable masks away from contaminants.
