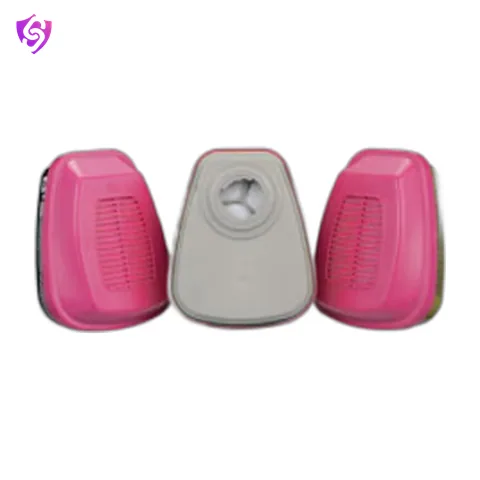

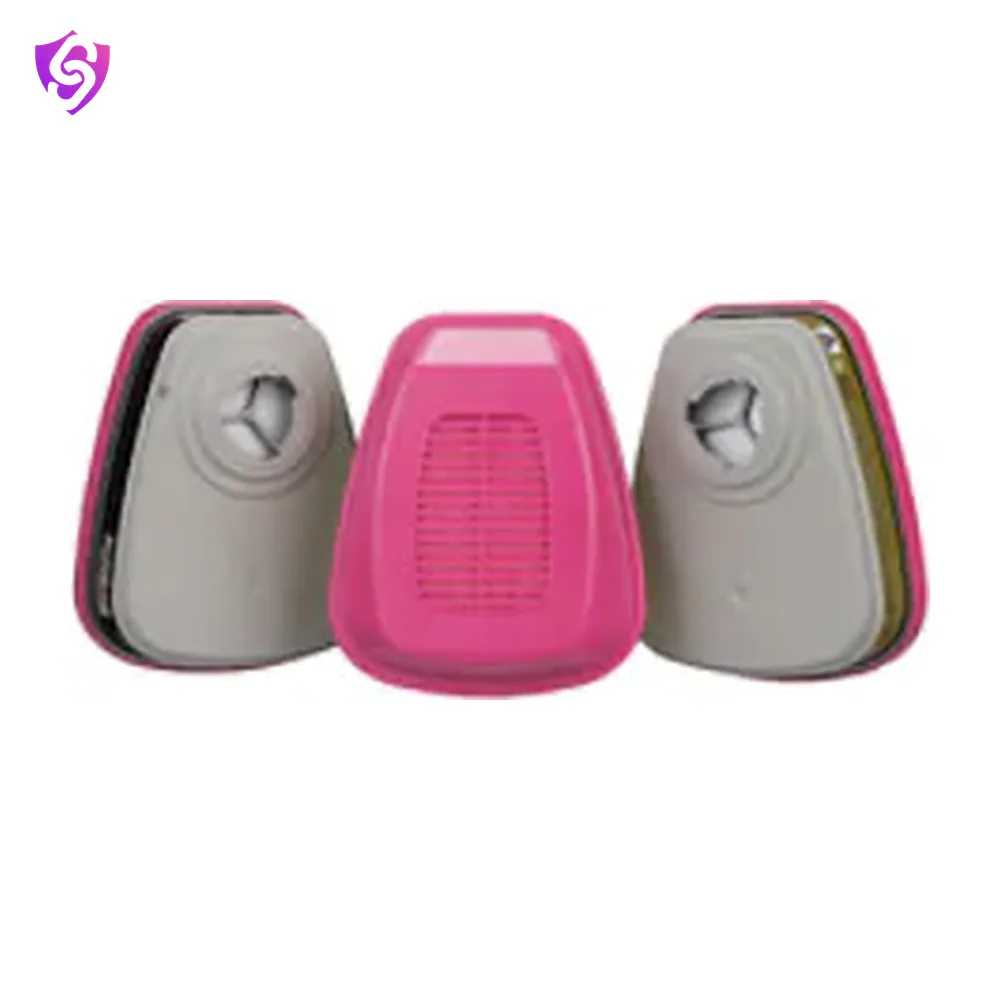

Bayonet Gas & Vapor Cartridges with Particulate Filters
3M™ Bayonet Gas & Vapor Cartridges with Particulate Filters are NIOSH approved and conveniently provide protection against a wide range of gases, vapors and particulates depending on the model selected.
Model B5005545003 NIOSH
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | 3M |
|---|---|
| Model | B5005545003 |
| Aerosol Type | Oil & Non-oil |
| Cartridge or Filter Type | Acid Gas, Ammonia, Formaldehyde, Inorganic Vapor, Mercury, Methylamine, Multi-gas & Vapor, Organic Vapor, Particulate |
| Case Quantity | 1/pack, 32, 60/case |
| Compatible with 3M™ PAPR Systems | No |
| Connection Type | Bayonet |
| Features | Particulate Filter Permanently Attached to Cartridge |
| Filter Class | P100 |
| For Use With | Reusable Respirators |
| Gas & Vapor Protection Type | Acid Gas, Ammonia, Certain Inorganic Vapors, Certain Organic Vapors, Certain Organic Vapors (b.pt. >65 °C), Chlorine, Chlorine dioxide, Formaldehyde, Hydrogen Fluoride, Hydrogen chloride, Hydrogen sulfide, Mercury, Methylamine, Sulfur dioxide |
| Media Material | Glass Fibre Paper |
| Media Type | Gas, Vapor & Particulate Filter |
| NIOSH Cartridge or Filter Assigned Color Coding | Magenta/Black, Magenta/Black/Olive, Magenta/Green, Magenta/Olive, Magenta/White, Magenta/Yellow |
| NIOSH Filter Approval Rating | P100 |
| Overall Height (Metric) | 8.63 cm |
| Overall Length (Metric) | 10.67 cm |
| Particulate Protection | Acid Gas, Ammonia, Asbestos, Chlorine, Formaldehyde, Methylamine, Mould, Organic Vapor, Particulate, Silica |
| Product Code | 60921, 60922, 60923, 60924, 60925, 60926 |
| Product Series | FF-400, 6000, Rugged Comfort 6500, 7000, 7500, 7800S |
| Product Type | Combined Filter, Filter & Cartridge Combo |
| Purpose | Cartridges & Filters |
| Recommended Application | Assembly & Mechanical, Batch-charging, Charging of Refrigeration Systems, Cleaning, Composite Finishing, Electro-plating, Fertilizing, Grinding, Maintenance, Manufacturing, Paint Preparation, Painting, Parts Cleaning, Pesticide Application, Pouring/Casting, Powder Charging, Powder Coating, Remediation, Seal Coatings, Spray Coating, Spray Painting, Torch Cutting, Welding |
| Recommended Industry | Construction, Facility Sanitation, Food Safety, General Manufacturing, Heavy Industrial, Heavy Infrastructure, Marine, Metal Production & Fabrication, Mining, Oil & Gas, Pharmaceutical, Transportation |
| Respirator Compatibility | 3M™ Full Facepiece FF-400 Series, 3M™ Scott™ AV-3000 HT Full Facepiece, 3M™ Scott™ AV-3000 SureSeal Full Facepiece, 3M™ Full Facepiece 6000 Series, 3M™ Half Facepiece 6000 Series, 3M™ Rugged Comfort Half Facepiece 6500 Series, 3M™ Half Facepiece 7500 Series, 3M™ Full Facepiece 7800S Series |
| Standards | NIOSH |
Models
| Cartridge or Filter Type: Acid Gas |
|---|
| Cartridge or Filter Type: Ammonia |
| Cartridge or Filter Type: Formaldehyde |
| Cartridge or Filter Type: Inorganic Vapor |
| Cartridge or Filter Type: Mercury |
| Cartridge or Filter Type: Methylamine |
| Cartridge or Filter Type: Multi-gas & Vapor |
| Cartridge or Filter Type: Organic Vapor |
| Cartridge or Filter Type: Particulate |
| Gas & Vapor Protection Type: Acid Gas |
| Gas & Vapor Protection Type: Ammonia |
| Gas & Vapor Protection Type: Certain Inorganic Vapors |
| Gas & Vapor Protection Type: Certain Organic Vapors |
| Gas & Vapor Protection Type: Certain Organic Vapors (b.pt. >65 °C) |
| Gas & Vapor Protection Type: Chlorine |
| Gas & Vapor Protection Type: Chlorine dioxide |
| Gas & Vapor Protection Type: Formaldehyde |
| Gas & Vapor Protection Type: Hydrogen chloride |
| Gas & Vapor Protection Type: Hydrogen Fluoride |
| Gas & Vapor Protection Type: Hydrogen sulfide |
| Gas & Vapor Protection Type: Mercury |
| Gas & Vapor Protection Type: Methylamine |
| Gas & Vapor Protection Type: Sulfur dioxide |
| Respirator Compatibility: 3M™ Full Facepiece 6000 Series |
| Respirator Compatibility: 3M™ Full Facepiece 7800S Series |
| Respirator Compatibility: 3M™ Full Facepiece FF-400 Series |
| Respirator Compatibility: 3M™ Half Facepiece 6000 Series |
| Respirator Compatibility: 3M™ Half Facepiece 7500 Series |
| Respirator Compatibility: 3M™ Rugged Comfort Half Facepiece 6500 Series |
| Respirator Compatibility: 3M™ Scott™ AV-3000 HT Full Facepiece |
| Respirator Compatibility: 3M™ Scott™ AV-3000 SureSeal Full Facepiece |
| Filter Class: P100 |
| Aerosol Type: Oil & Non-oil |
| Connection Type: Bayonet |
Key features
- NIOSH approved for use against a range of gases, vapors and particulates depending upon the model selected
- Bayonet-style connection fits a wide range of compatible half and full facepiece 3M™ Reusable Respirators
- Use with NIOSH approved 3M™ Half and Full Facepiece Reusable Respirator 6000, 6500, 7500, 7800S or FF-400 Series; or the 3M™ Scott™ AV-3000 SureSeal or AV-3000 HT
- Swept-back, low profile design for optimized field of view and balance
- Lightweight with low breathing resistance
- Quarter turn for a quick and easy installation
- Wide range of applications may reduce inventory needs
- Use for protection in hazardous environments. For workplace/occupational use only
Applications
- Chemical and pharmaceutical plants
- Painting and spray booths
- Cement, mining and quarrying
- Welding and foundries
Care and replacement
Replace disposable respirators when damaged, soiled or hard to breathe through. Change gas filters on the schedule set for the exposure. Clean and store reusable masks away from contaminants.
