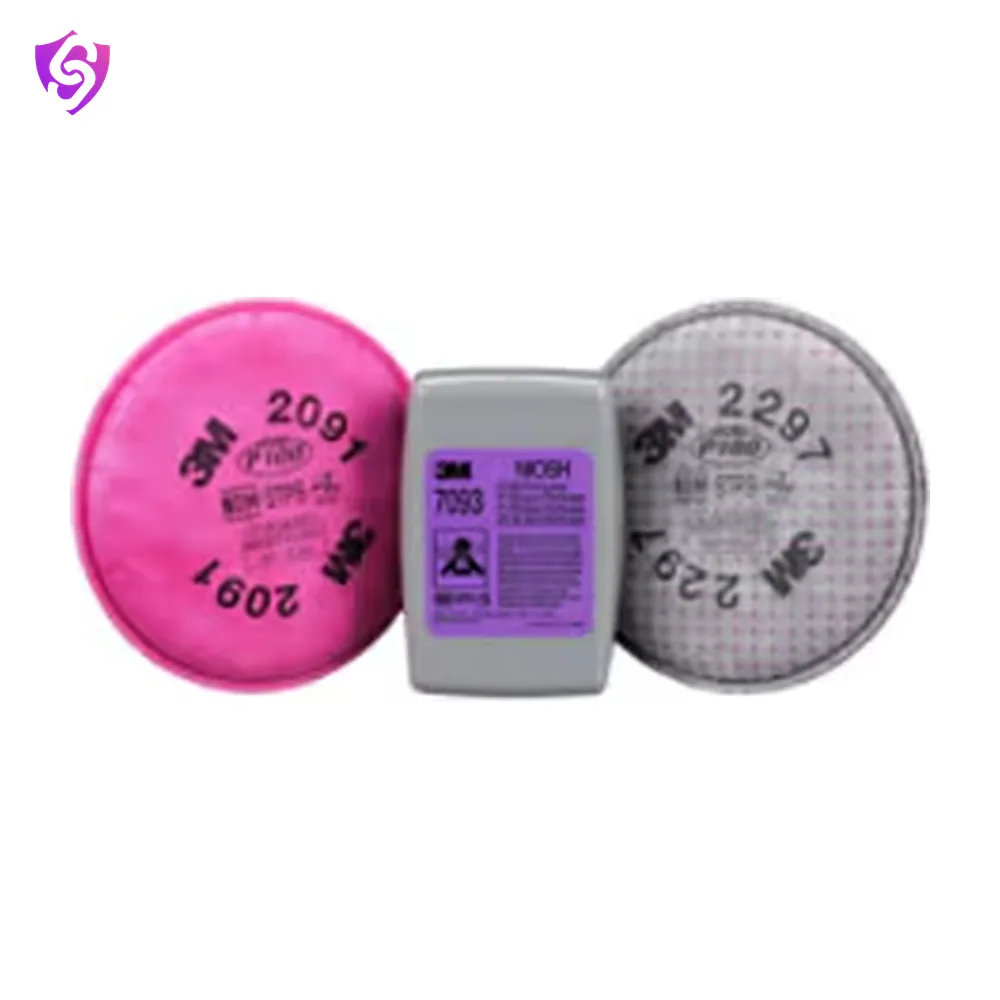

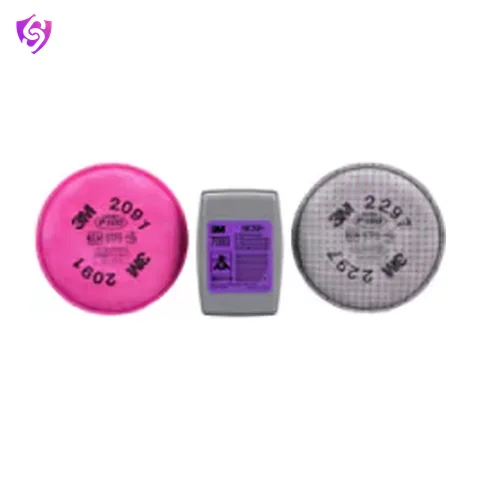

Bayonet Particulate Filters
3M™ Bayonet Particulate Filters are NIOSH approved and conveniently provide protection against a wide range of dusts, mists and other particulates.
Model B5005545004 NIOSH
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | 3M |
|---|---|
| Model | B5005545004 |
| Accessories | No |
| Aerosol Type | Oil & Non-oil |
| Cartridge or Filter Type | Hydrogen Fluoride, Particulate |
| Case Quantity | 60/case, 100/case, 144/case |
| Compatible with Welding Shield | Yes |
| Connection Type | Bayonet |
| Enhanced Durability | Yes |
| Features | Easy Breathing, Enhanced Field of View, Lightweight, Spring-loaded Filter Cover |
| Filter Class | P95, P100 |
| For Use With | 3M™ Adapter 502, 3M™ Cartridges 6000 Series, Reusable Respirators |
| Gas & Vapor Protection Type | Hydrogen Fluoride |
| Maintenance Free | No |
| Media Material | Glass Fibre Paper, Polypropylene |
| NIOSH Cartridge or Filter Assigned Color Coding | Magenta, Magenta/Olive, Olive |
| NIOSH Filter Approval Rating | P95, P100 |
| Nuisance Odor Relief (< OSHA PEL) | Acid Gas, N/A, Organic Vapor, Organic Vapor & Acid Gas |
| Overall Height (Metric) | 5.84 cm, 10.92 cm |
| Overall Length (Metric) | 8.64 cm, 10.92 cm |
| Particulate Protection | Asbestos, Hydrogen Fluoride, Mould, Organic Vapor, Particulate, Silica |
| Product Code | 2071, 2076HF, 2078, 2091, 2096, 2097, 7093, 7093B, 7093C |
| Product Series | FF-400, 5000, 6000, 6500, Rugged Comfort 6500, 7000, 7500, 7800S |
| Product Type | Filter, Filter & Cartridge Combo, Particulate Filter |
| Purpose | Cartridges & Filters |
| Recommended Application | Assembly & Mechanical, Batch-charging, Brazing, Cleaning, Composite Finishing, Grinding, Maintenance, Manufacturing, Paint Preparation, Painting, Pesticide Application, Pouring/Casting, Powder Charging, Powder Coating, Remediation, Sanding, Soldering, Spray Coating, Torch Cutting, Welding |
| Recommended Industry | Construction, Facility Sanitation, Food Safety, General Manufacturing, Heavy Industrial, Heavy Infrastructure, Marine, Metal Production & Fabrication, Mining, Oil & Gas, Pharmaceutical, Transportation |
| Respirator Compatibility | 3M™ Full Facepiece FF-400 Series, 3M™ Scott™ AV-3000 HT Full Facepiece, 3M™ Scott™ AV-3000 SureSeal Full Facepiece, 3M™ Full Facepiece 6000 Series, 3M™ Half Facepiece 6000 Series, 3M™ Rugged Comfort Half Facepiece 6500 Series, 3M™ Half Facepiece 7500 Series, 3M™ Full Facepiece 7800S Series |
| Welding | Yes |
| Standards | NIOSH |
Models
| Cartridge or Filter Type: Hydrogen Fluoride |
|---|
| Cartridge or Filter Type: Particulate |
| Filter Class: P100 |
| Filter Class: P95 |
| Nuisance Odor Relief (< OSHA PEL): Acid Gas |
| Nuisance Odor Relief (< OSHA PEL): N/A |
| Nuisance Odor Relief (< OSHA PEL): Organic Vapor |
| Nuisance Odor Relief (< OSHA PEL): Organic Vapor & Acid Gas |
| Respirator Compatibility: 3M™ Full Facepiece 6000 Series |
| Respirator Compatibility: 3M™ Full Facepiece 7800S Series |
| Respirator Compatibility: 3M™ Full Facepiece FF-400 Series |
| Respirator Compatibility: 3M™ Half Facepiece 6000 Series |
| Respirator Compatibility: 3M™ Half Facepiece 7500 Series |
| Respirator Compatibility: 3M™ Rugged Comfort Half Facepiece 6500 Series |
| Respirator Compatibility: 3M™ Scott™ AV-3000 HT Full Facepiece |
| Respirator Compatibility: 3M™ Scott™ AV-3000 SureSeal Full Facepiece |
| Aerosol Type: Oil & Non-oil |
| Gas & Vapor Protection Type: Hydrogen Fluoride |
Key features
- NIOSH approved for environments containing certain oil and non-oil based particles
- Bayonet-style connection fits a wide range of compatible half and full facepiece 3M™ Reusable Respirators
- Use with NIOSH approved 3M™ Half and Full Facepiece Reusable Respirator 6000, 6500, 7500, 7800S or FF-400 Series; or the 3M™ Scott™ AV-3000 SureSeal or AV-3000 HT
- Filters can help reduce inhalation exposures to certain airborne biological particles
- Advanced Electret Media (AEM) is designed to provide lightweight, easy breathing comfort
- Quarter turn twist for a quick and easy installation
- Flame resistant
- Use for protection in hazardous environments. For workplace/occupational use only
Applications
- Chemical and pharmaceutical plants
- Painting and spray booths
- Cement, mining and quarrying
- Welding and foundries
Care and replacement
Replace disposable respirators when damaged, soiled or hard to breathe through. Change gas filters on the schedule set for the exposure. Clean and store reusable masks away from contaminants.
