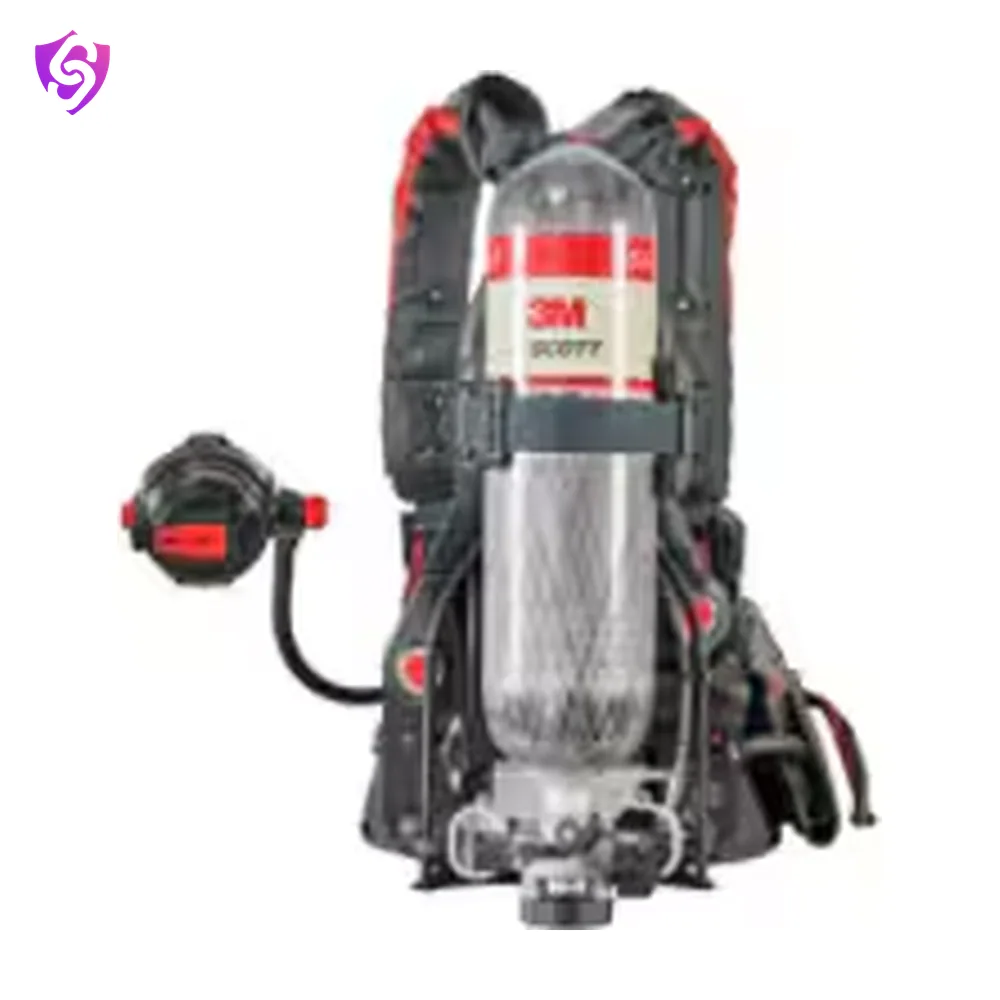

Scott™ Air-Pak™ X3 Pro SCBA

Name: 3M Scott™ Air-Pak™ X3 Pro SCBA
Brand: 3M

The 3M™ Scott™ Air-Pak X3 Pro SCBA is built on a foundation of redundant safety features, providing unparalleled performance to protect the family of firefighters who expect the best in the most demanding conditions.

Model B5005047169 NFPA 1981

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	3M
Model	B5005047169
Airline Connector Brand	None
Harness Material	Kevlar®
Product Type	Self-contained Breathing Apparatus
Recommended Application	Firefighting
Standards	NFPA 1981

Key features

Compliant to NFPA 1981, Standard on Open-Circuit Self-Contained Breathing Apparatus (SCBA) for Emergency Services, 2018 Edition
Compliant to NFPA 1982, Standard on Personal Alert Safety Systems (PASS), 2018 Edition
Advanced harness materials allows for reduced absorption of water and chemicals to help minimize contamination
Removable harness allows for cleaning and decontamination to help with exposure reduction efforts
Shoulder harness design improves the ease of donning and minimizes pressure points to help reduce user fatigue
Natural-Articulating Waist Pad promotes greater range of motion to the user, while transferring weight to the hips for a more balanced load
3M™ Scott™ E-Z Flo C5 Regulator offers enhanced breathing performance to help reduce user burden
Redundant safety features including the dual-redundant pressure reducer afford firefighters peace of mind knowing that the SCBA will perform
3M™ Scotchlite™ Reflective Material delivers enhanced visibility of the SCBA when operating in low-light conditions, improving safety and accountability on the fireground
Bluetooth® enabled electronics support wireless connectivity between devices for improved configurability, data transmission/retrieval, firefighter safety and fireground accountability
Electronic personnel accountability report (ePAR) provides wireless, bi-directional communication between the firefighter and incident command (using Monitor Pro telemetry software) to help improve fireground accountability and communications
System Integrity Alarm provides visual and audible alerts to notify SCBA wearer and incident command (using Monitor Pro telemetry software) of impending electronics degradation due to elevated temperature

Applications

Chemical and pharmaceutical plants
Painting and spray booths
Cement, mining and quarrying
Welding and foundries

Care and replacement

Replace disposable respirators when damaged, soiled or hard to breathe through. Change gas filters on the schedule set for the exposure. Clean and store reusable masks away from contaminants.
