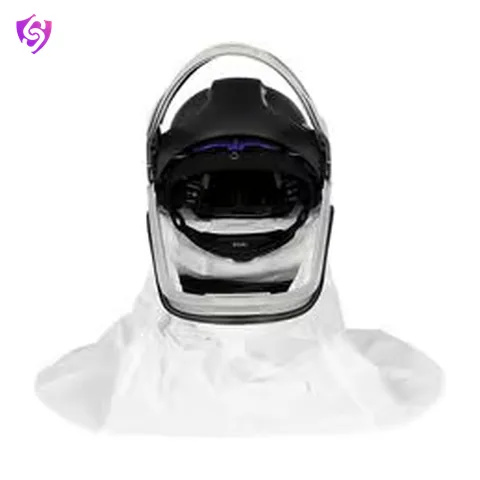

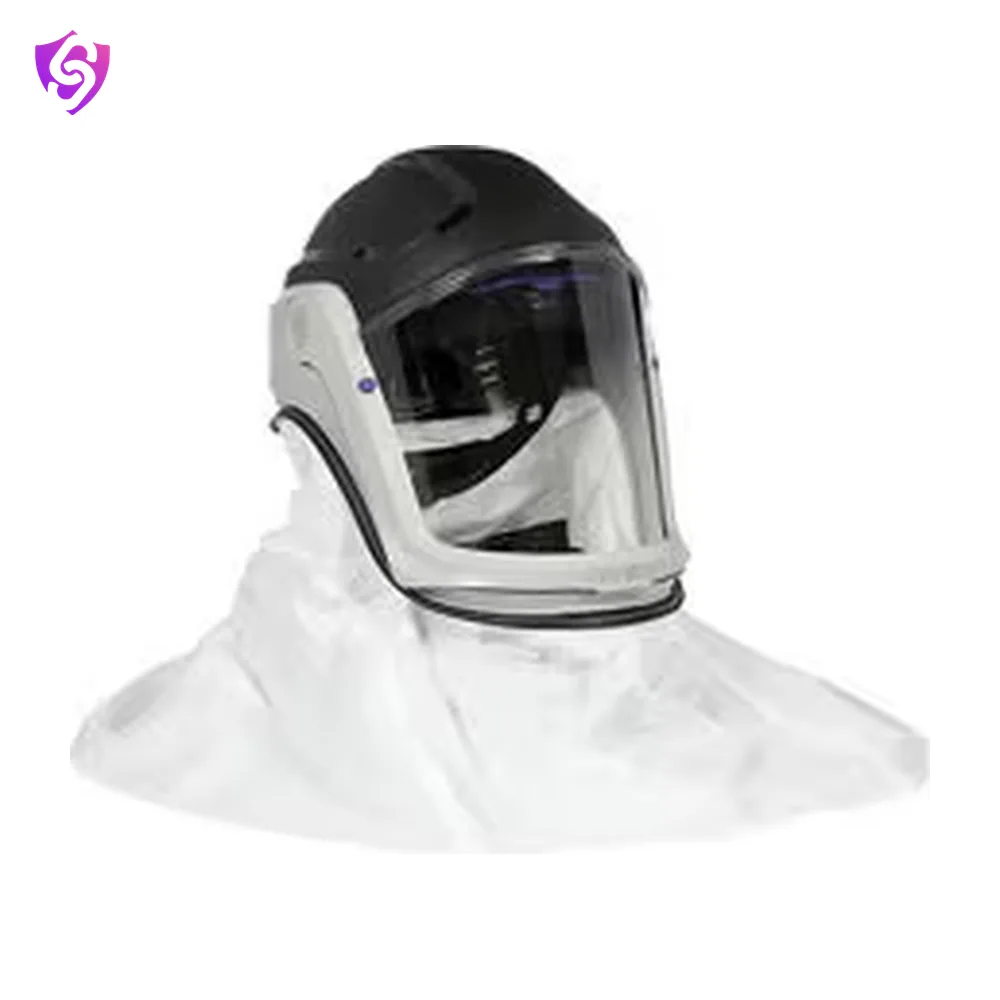

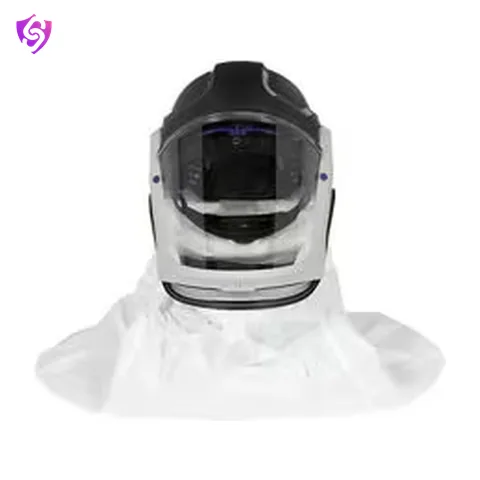

Versaflo™ Respiratory Helmet Assembly M-405, with Standard Visor and Shroud

Name: 3M Versaflo™ Respiratory Helmet Assembly M-405, with Standard Visor and Shroud
Brand: 3M

Used with an approved air source, M-400 Series helmets provide respiratory (OSHA APF=1000) and limited head (ANSI Z89.1-2003 Type 1 Class G) and eye (ANSI Z87.1-2010) protection.

Model 70071562055 ANSI Z89.1ANSI Z87.1

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	3M
Model	70071562055
Case Quantity	1
Compatible With	3M™ Versaflo™ M-400 Series Helmets
Flame Resistance (ASTM D2859-96)	No
Headgear Type	Helmet with Visor & Shroud
High Heat	No
Product Colour	Grey
Product Series	M-Series
Product Type	Headgear
Recommended Application	Composite Finishing, Final Finish, Paint Preparation, Painting, Welding
Recommended Industry	General Manufacturing, Transportation
Specifications Met	ANSI Z89.1 Type I, Class G, Assigned Protection Factor (APF) = 1000
Supplied Air Respirator Style	Versaflo™ AP-600 Portable Panels, Low-Pressure Portable Ambient Air Pump, MST Portable and Fixed Panels, W-Series Fixed Panels
Valve Type	Air Regulating Valve, Cooling / Heating Valve, Low Pressure Valve
Standards	ANSI Z89.1-2003, ANSI Z87.1-2010, ANSI Z89.1

Key features

Includes a standard visor and standard shroud.
Deflector allows users to direct the airflow inside the headtop to increase comfort
Fully-adjustable suspension for customized fit and weight distribution
Accessory options availalble for protection to help handle the environments you encounter
Visor combines good peripheral and downward vision
Can be used with a range of 3M™ Peltor™ hearing protection as well as an attachable microphone for ease of communication

Applications

Chemical and pharmaceutical plants
Painting and spray booths
Cement, mining and quarrying
Welding and foundries

Care and replacement

Replace disposable respirators when damaged, soiled or hard to breathe through. Change gas filters on the schedule set for the exposure. Clean and store reusable masks away from contaminants.
