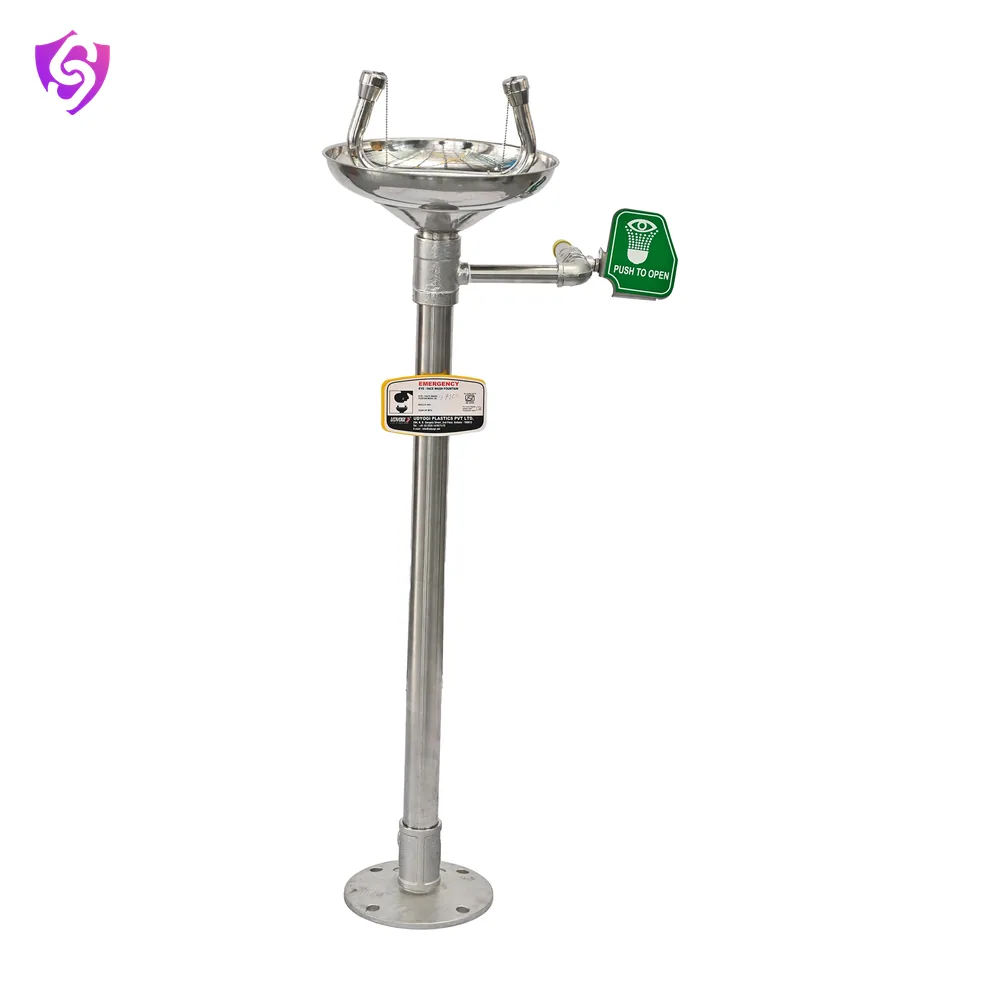

4220 SS eye wash
Emergency eye/face wash fountain operates independently by push lever
- Test certificate available on request
Specifications
| Brand | Udyogi |
|---|---|
| Model | 4220 SS |
| Material | SS 304 Material |
| Operating Pressure | 2-3 Kg/cm² |
| Water Flow | 12 LPM |
| Construction | 304 Stainless Steel |
| Also Available In | 316 Stainless Steel |
Key features
- Water inlet connections of 1/2’’ NB for eye / face wash.
- Water outlet connection – 1¼” NB.
- Eye wash discharge rate – 12 lpm (minimum).
- Manually operated valve with push plate for hazel free usage.
- Receptor bowl attached for minimize wastage of water.
- Welded base flange and drain outlet introduced for easy installation.
- Square base flange for better positioning on ground surface.
- External 1-1/4” BSP thread of drain outlet introduced.
Applications
- Chemical and fertiliser plants
- Battery rooms
- Laboratories
- Effluent treatment
Care and replacement
Activate plumbed units weekly to flush the line and confirm flow. Keep the area clear and signed.
