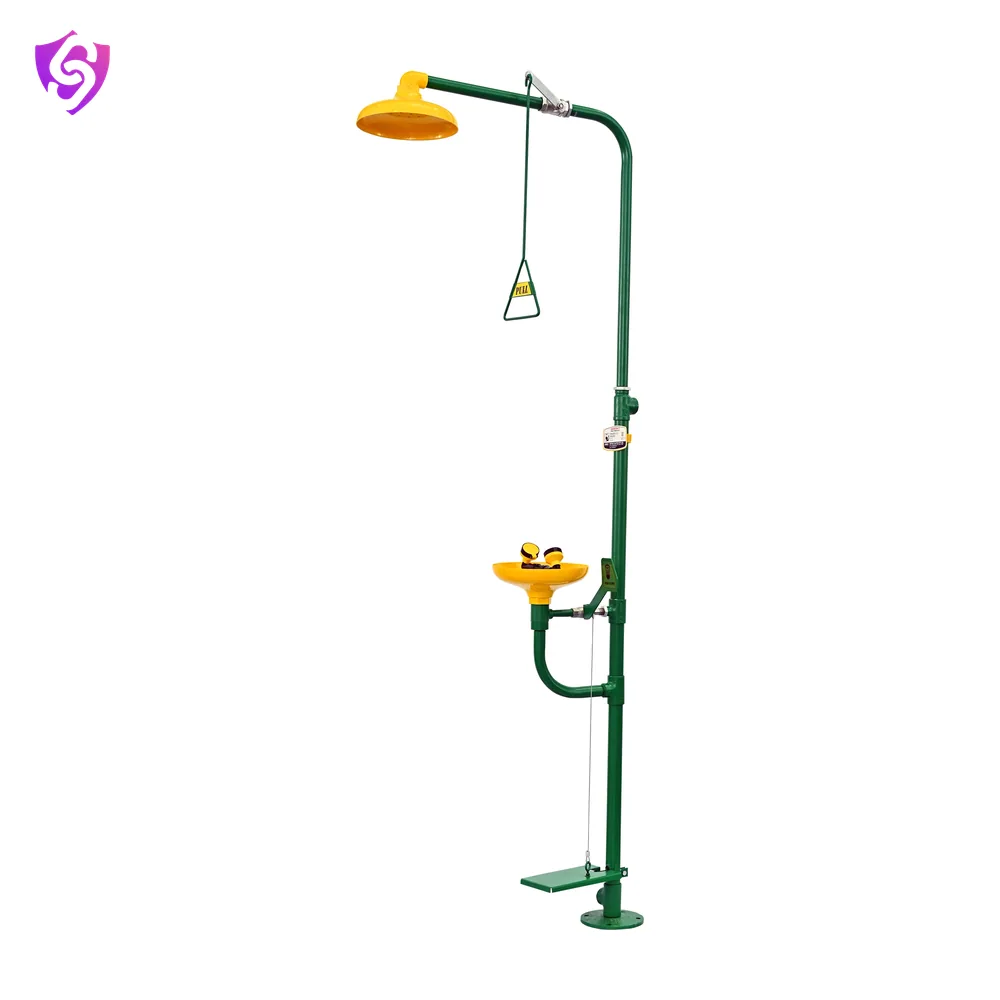

6250 GI safety showers

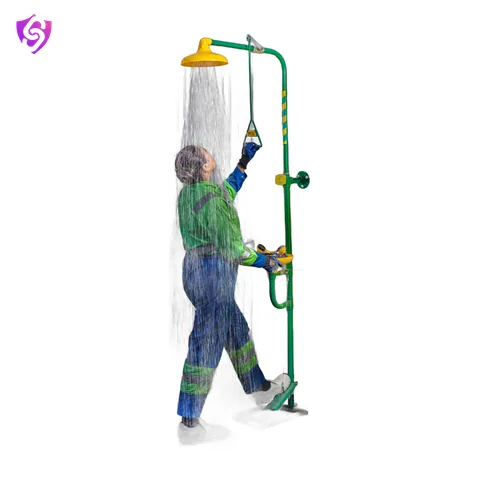

A combination of Safety Shower & Eyewash, operated independently by push lever foot pedal & pull rod
- Test certificate available on request
Specifications
| Brand | Udyogi |
|---|---|
| Model | 6250 GI |
| Material | GI Material |
| Finish | Powder Coated |
| Ball Valve | SS 304 Grade |
| Bowl & Eye Wash Pipe | ABS Grade |
| Receptor Bowl, Shower Head & Atomiser Sprinkler | Highly Visible Yellow ABS Plastic, Resistant to Damage from Most Acids, Alkalis, and Oils |
| Operating Pressure | 2-3 Kg/cm² |
| Water Flow | Shower: 76 LPM & Eyewash: 12 LPM |
Key features
- Water inlet connections of 1-¼” NB.
- Water outlet connection – 1¼” NB.
- Head shower discharge rate – 76 lpm (minimum).
- Eye wash discharge rate – 12 lpm (minimum).
- Powder coated materials for better protection and durability.
- Push to open valve - connects unit to uninterruptible water supply.
- Push plate for one hand operation.
- Base plate - to hold the shower structure in a stable position (Size-180 mm).
- Newly introduced straight model body for better flow of water in minimum time.
- With foot pedal for hands free operation to supply and control water flow through eye wash heads.
Applications
- Chemical and fertiliser plants
- Battery rooms
- Laboratories
- Effluent treatment
Care and replacement
Activate plumbed units weekly to flush the line and confirm flow. Keep the area clear and signed.
