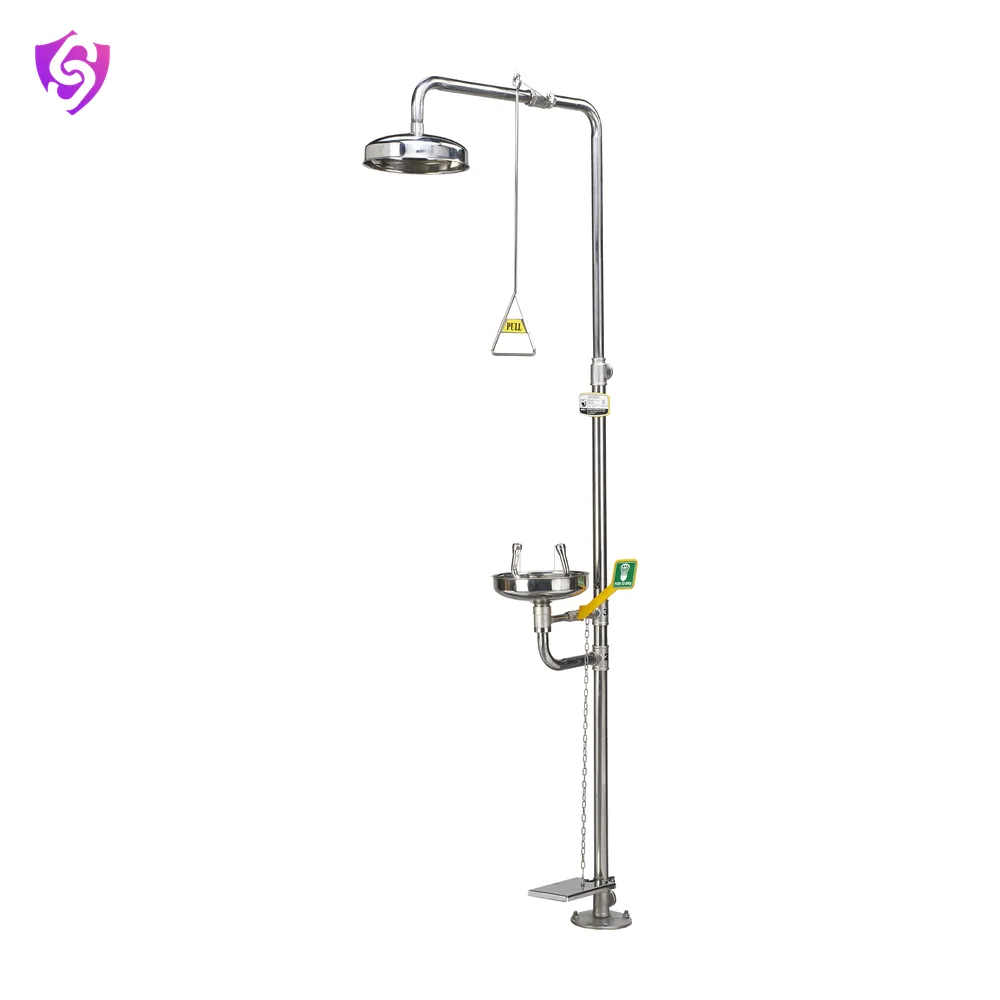

6250 SS safety showers

Specifications

Key features

• Water inlet connections of 1-¼” NB.
• Water outlet connection – 1¼” NB.
• Head shower discharge rate – 76 lpm (minimum).
• Eye wash discharge rate – 12 lpm (minimum).
• Push plate for one hand operation.
• Push to open valve - connects unit to uninterruptible water supply.
• Base plate - to hold the shower structure in a stable position (Size-180 mm).
• Newly introduced straight model body for better flow of water in minimum time.
• With foot pedal for hands free operation to supply and control water flow through eye wash heads.
• Welded base flange and drain outlet introduced for easy installation.
• Square base flange for better positioning on ground surface.
• External 1-1/4” BSP thread of drain outlet introduced.

Applications

• Chemical and fertiliser plants
• Battery rooms
• Laboratories
• Effluent treatment

Care and replacement

Activate plumbed units weekly to flush the line and confirm flow. Keep the area clear and signed.
