Karam

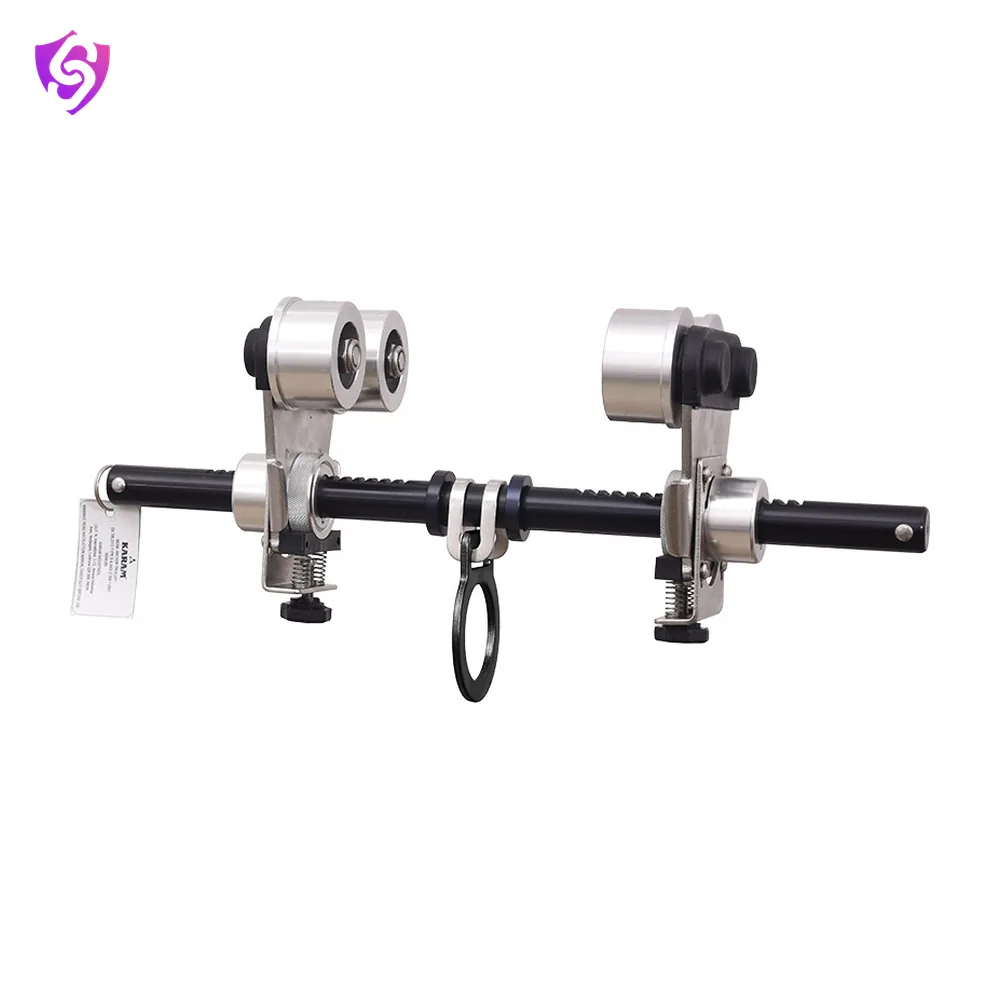

Beam Anchor Trolley

Name: Karam Beam Anchor Trolley
Brand: Karam

The SA15A is designed to provide safe and reliable anchorage for workers operating at height.

Model SA15A- Type B Anchor EN 795IS 3521AS/NZS 5532ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA15A- Type B Anchor
Material	Aluminium and stainless steel
Minimum Breaking Strength	23kN
Flange Width	80mm to 250mm
Net Weight	3.90kg ± 0.01kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Certified to EN 795:2012 Type B, IS 3521(Part 7):2021, SA15 is also certified to AS/NZS 5532:2013, ATEX 2014/34/EU Conforms to ANSI Z359.18-2017 Type A

Key features

Strong aluminium and steel body for lasting durability.
Adjustable jaws to fit different beam sizes with ease.
Provides horizontal mobility while ensuring secure anchorage.
Lightweight construction for effortless installation and use.
Reliable solution for height safety across multiple applications.

Applications

Construction
Work at Height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
