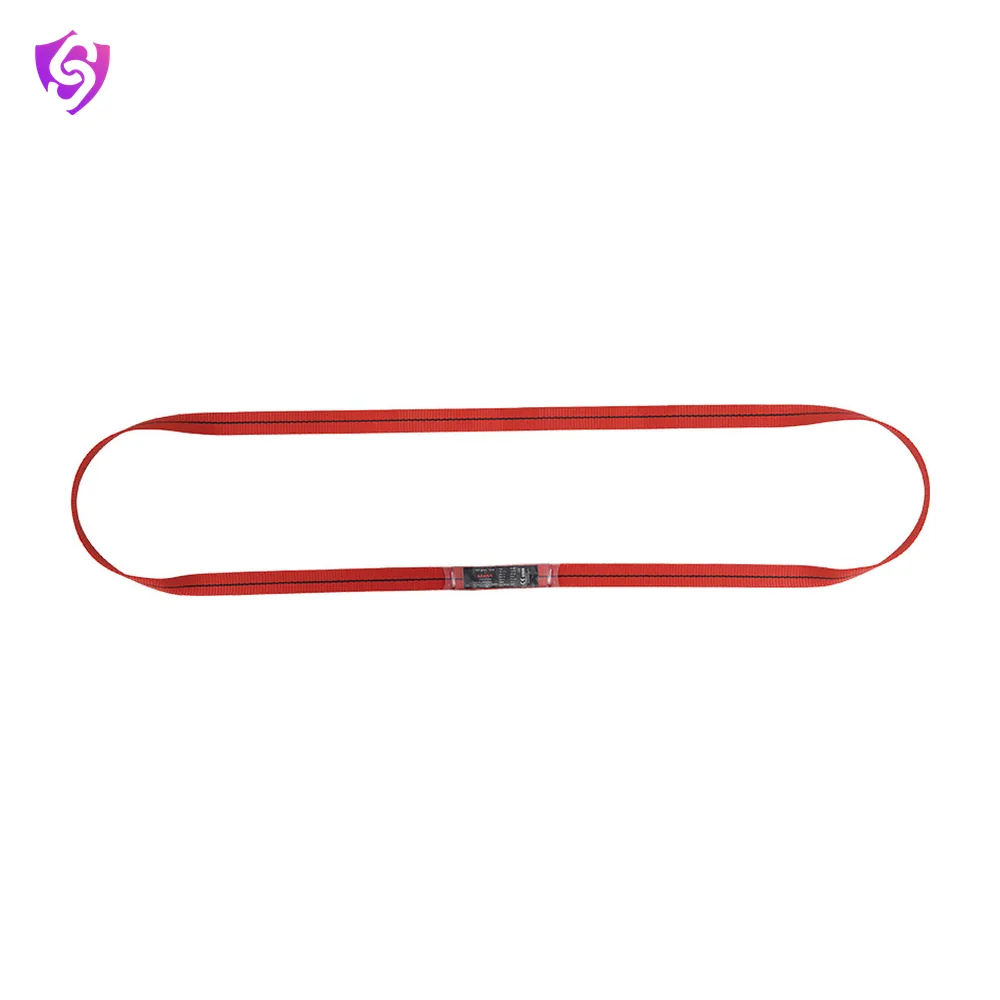

Cross Arm Anchor Strap

Name: Karam Cross Arm Anchor Strap
Brand: Karam

The PN 807 is a simple yet reliable anchorage solution designed to create a safe connection point when working at height.

Model PN807 Type B Anchor EN 795AS/NZS 5532EN 566IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN807 Type B Anchor
Material	25mm wide Polyester webbing
Length	0.6m, 1.0m, 1.5m or as requested
Minimum Breaking Strength	18kN for 3 minutes
Warranty	1 year from the date of invoice against any manufacturing defects
Standards	EN 795:2012 Type B, AS/NZS 5532:2013, EN 566:2017, IS 3521(Part 7):2021

Key features

Strong polyester webbing with reinforced stitching for durability
Lightweight and portable for easy transportation and use
Quickly wraps around beams, pipes, or suitable structures
Available in multiple lengths to suit varied applications
Provides dependable anchorage and enhanced hand protection at height

Applications

Work at Height
Concrete Structure

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
