Edge Anchor

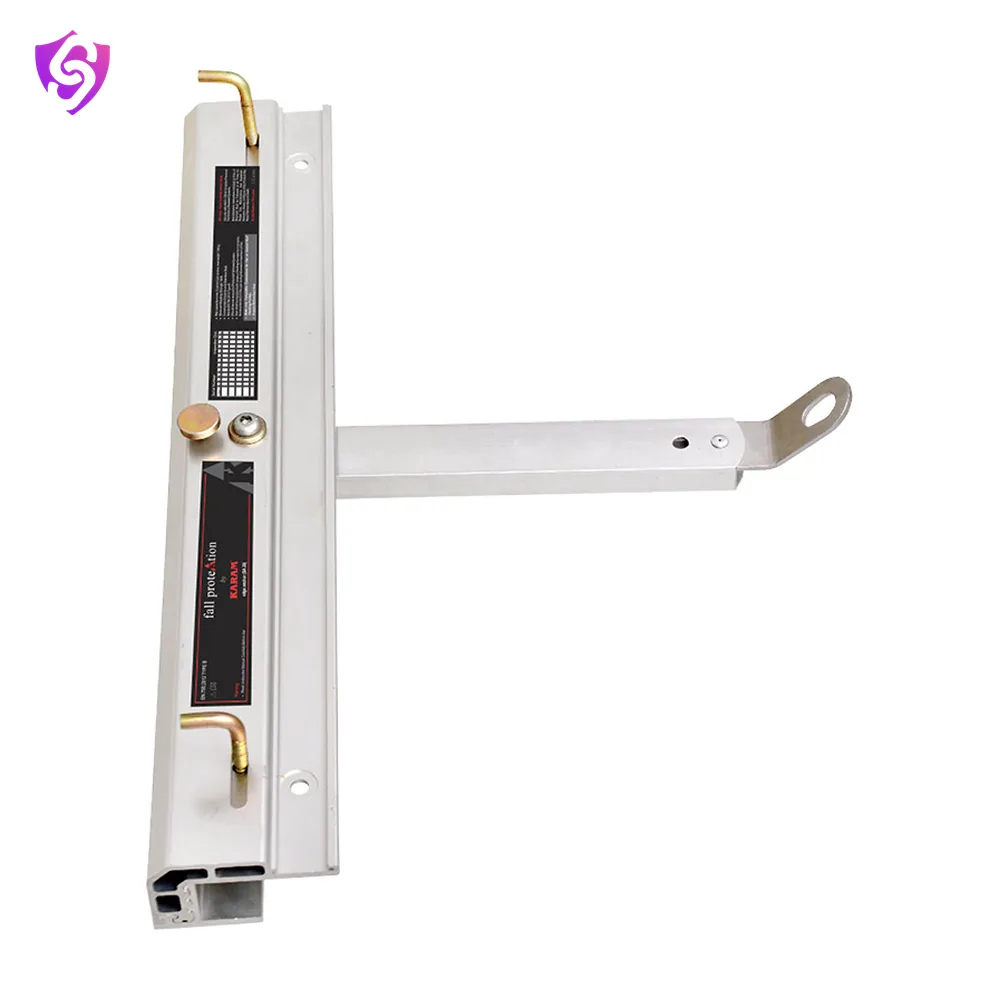

The SA 20 is a lightweight and collapsible anchorage solution designed to deliver dependable safety while working on metal roofs with varying depths.
Model SA20 Type B Anchor EN 795AS/NZS 5532IS 3521
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | Karam |
|---|---|
| Model | SA20 Type B Anchor |
| Material | Aluminium alloy |
| Minimum Breaking Strength | 15kN |
| Range of Cladding Profile | Upto 30mm |
| Net Weight | 3.0kg ± 0.1kg |
| Warranty | 1 year from the date of invoice against any manufacturing defects. |
| Standards | Certified to EN 795:2012 Type B, AS/NZS 5532:2013, IS 3521(Part 7):2021 |
Key features
- Lightweight, collapsible design for easy portability.
- Adjustable fit to suit multiple roof cladding profiles.
- Energy-absorbing arm for enhanced fall safety.
- Optional insert for deeper roof profiles.
- Made from high-strength aluminium alloy for lasting reliability.
Applications
- Rooftops
- Work at Height
Care and replacement
Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
