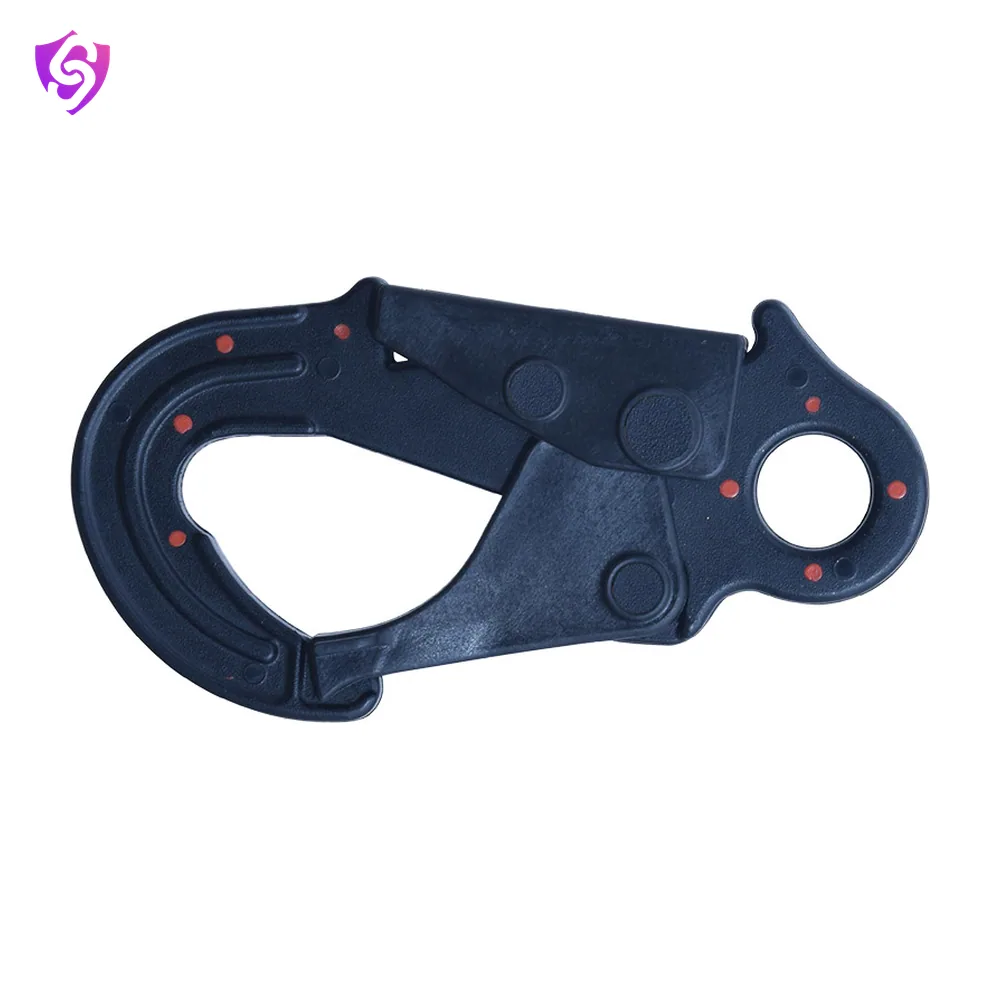

Dielectric Snap Hook

Name: Karam Dielectric Snap Hook
Brand: Karam

The PN 172 Di-Electric Snap Hook is designed to deliver reliable performance and electrical protection in high-risk work environments.

Model PN172 EN 362

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN172
Material	Specially compounded Polymer with Steel reinforcements
Gate Opening	15.0mm
Minimum Breaking Strength	23kN
Net Weight	350.0gm
Finish	Moulded
Minimum Dielectric Resistance	14kV
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 362:2004 Class T

Key features

Polymer body with steel reinforcement for durability
Auto-closing and auto-locking gate for user safety
20 mm gate opening for versatile anchorage points
Dielectric resistance up to 14 kV for electrical safety
Lightweight design at approx. 330 g for ease of use

Applications

Fall Protection
Rope Access
Mountaineering
Rescue

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
