Karam

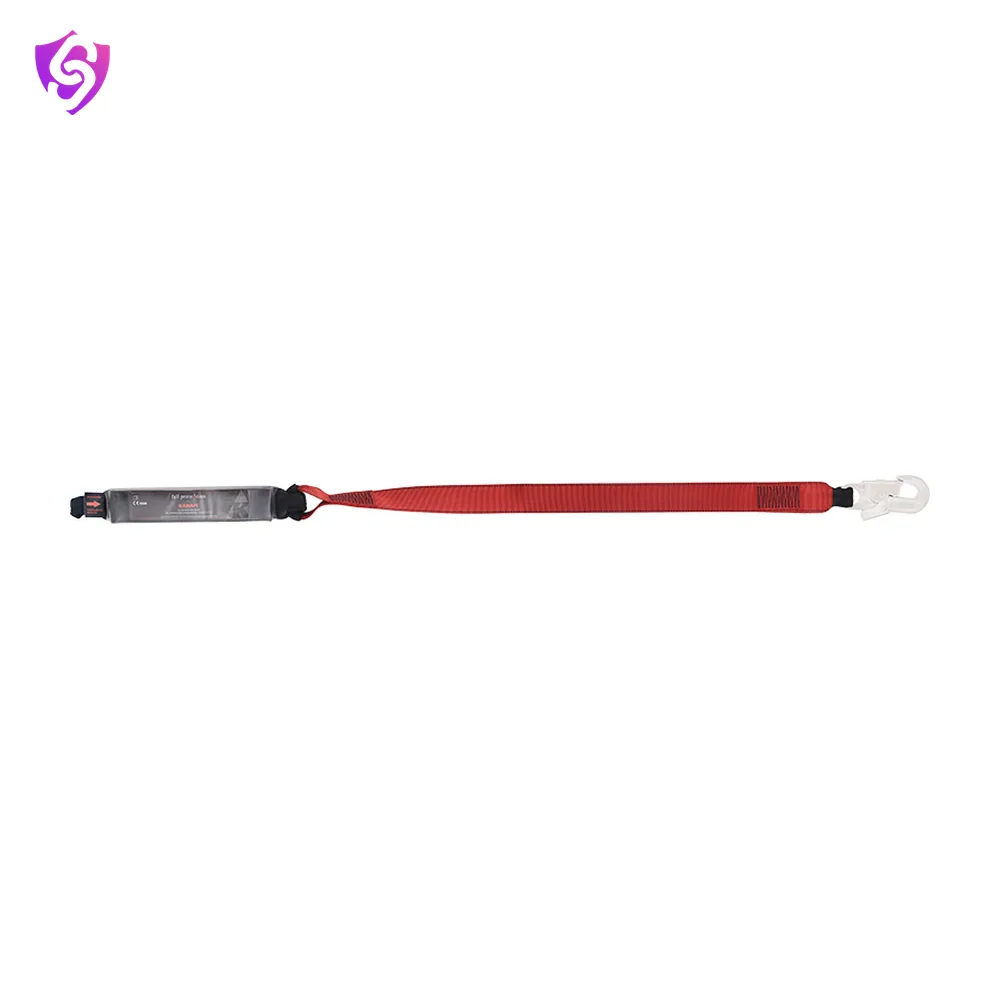

Energy Absorbing 44mm Webbing Lanyard One Side Loop and Other Side Hook PN121

Name: Karam Energy Absorbing 44mm Webbing Lanyard One Side Loop and Other Side Hook PN121
Brand: Karam

KARAM's energy absorbing twisted rope lanyards are commonly used in fall protection systems.

Model PN324 EN 355IS 3521

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN324
Rope/Webbing	Polyester webbing
Dia/Width	44mm
Attachment End	Loop
Anchorage End	PN121
Length	1.0m, 1.5m, 1.8m and 2.0m
Color	Red and black color Polyester webbing
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 355:2002, IS 3521(Part 2):2021

Key features

Made up of 44mm wide Polyester webbing from high tenacity Polyester yarn having a different configuration of connectors on the ends
The loops at the ends are protected by an abrasion resistant covering. This prevents the webbing from being damaged by the metallic contact of the connector
Available in length 1.0m, 1.5m, 1.8m, and 2.0m
All KARAM lanyards are also supplied with any other hook on special request
All lanyards with different combinations of connectors mentioned below are individually certified as per EN 355:2002 and IS 3521(part 2): 2021

Applications

Work at Height
Fall Protection

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
