Karam

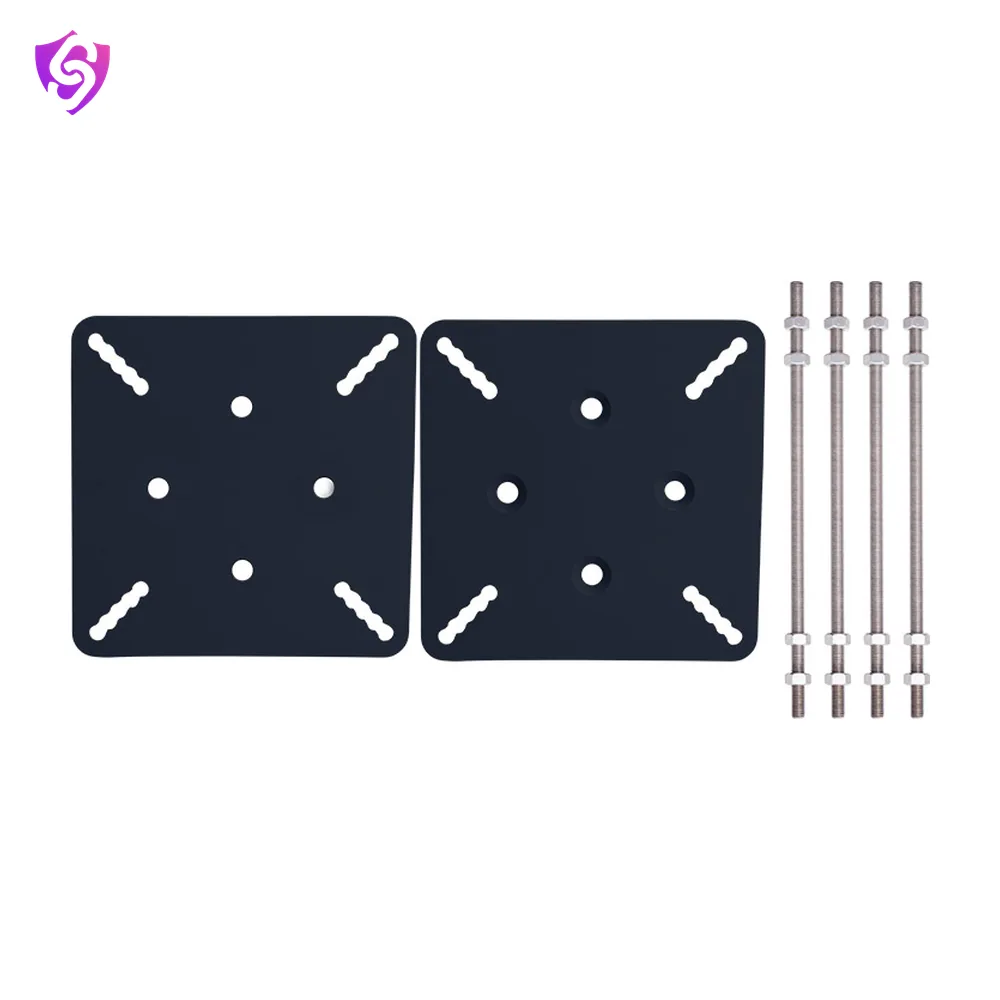

Extremity Anchor Plate

Name: Karam Extremity Anchor Plate
Brand: Karam

These are anchor points strategically placed at the edges or extremities of the structure.

Model SA22 EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA22
Material	Alloy steel/stainless steel
Finish	ED coated
Breaking Strength	15kN
Weight	12.45kg
Min Adjustable Opening	150.0mm
Max Adjustable Opening	220.0mm
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type A TS 16415:2013 (for upto 4 users)

Key features

MOC: ED coated black in alloy steel
ED coated grey in stainless steel
Compatible with universal extremity plate; Ref. PN4000(09)

Applications

Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
