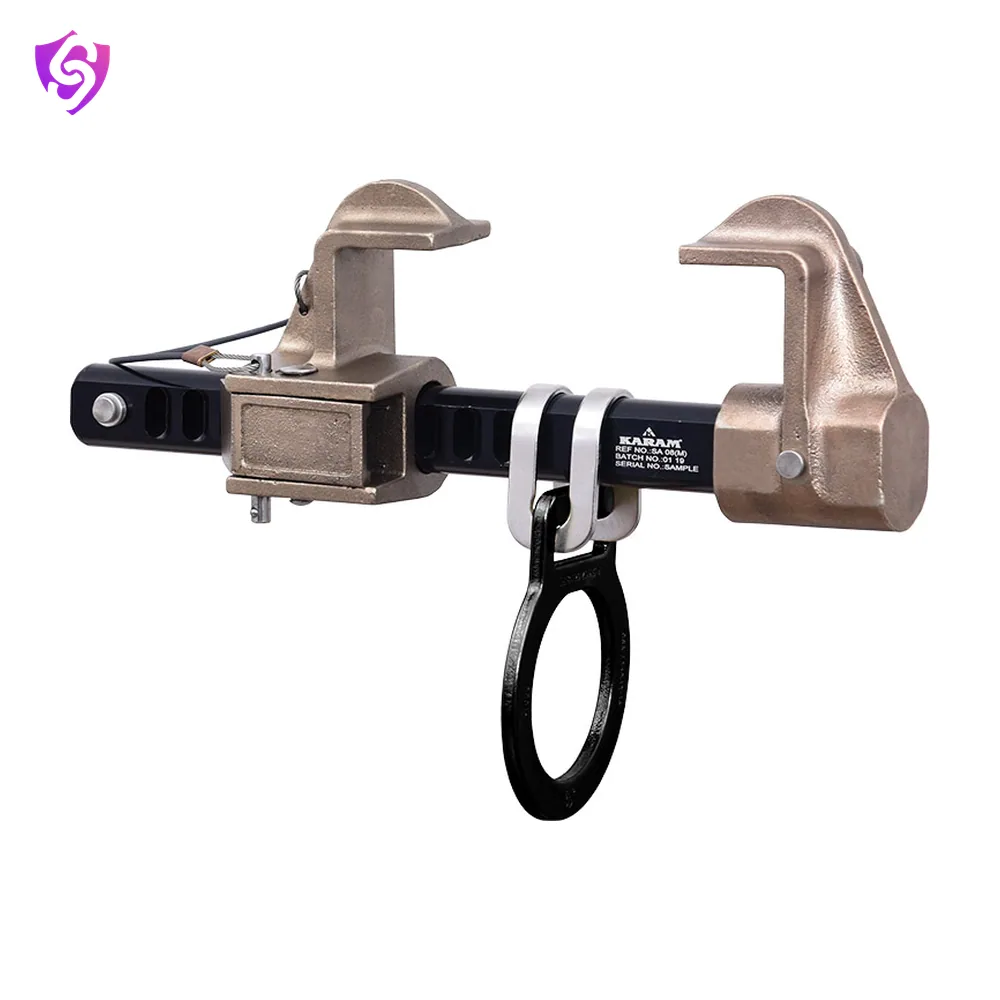

Beam Anchor
The SA 08M is a lightweight yet durable anchorage solution designed for secure connection on steel beams.
Model SA08M- Type B Anchor EN 795ATEXIS 3521AS/NZS 5532
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | Karam |
|---|---|
| Model | SA08M- Type B Anchor |
| Material | Alloy steel with ED coated Black |
| Minimum Breaking Strength | 23kN |
| Flange Width | 75mm to 150mm |
| Net Weight | 1.56kg ± 0.1kg |
| Warranty | 1 year from the date of invoice against any manufacturing defects. |
| Standards | Certified to EN 795:2012 Type B, ATEX 2014/34/EU, IS 3521(Part 7):2021, SA08 is also certified to AS/NZS 5532:2013 Conforms to ANSI Z359.18-2017 Type A |
Key features
- Adjustable design for varying flange widths
- Lightweight and portable for easy handling
- Strong build with aluminium alloy and brass
- High system strength
- Compact anchor ideal for multiple applications
Applications
- Construction
- Work at Height
Care and replacement
Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
