Girder and Concrete Steel Anchor

Name: Karam Girder and Concrete Steel Anchor
Brand: Karam

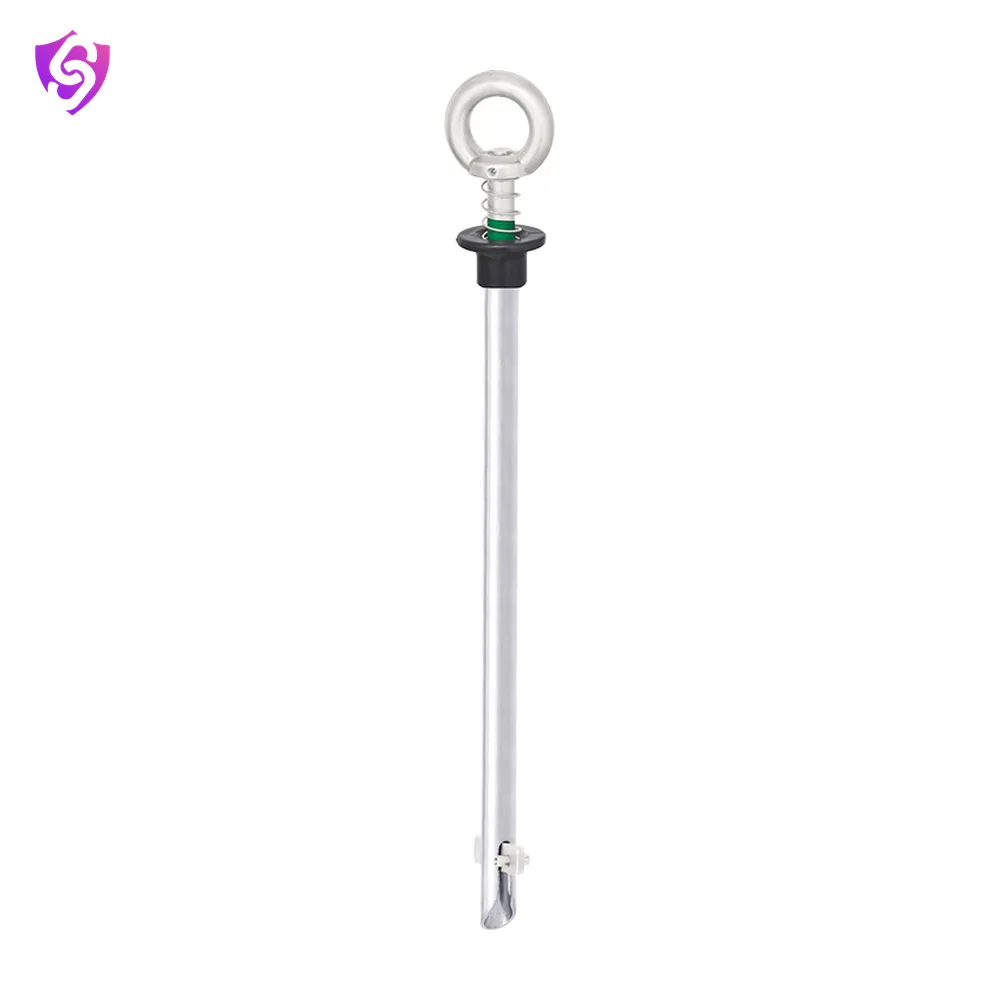

The SA13A is a robust and reusable anchorage solution designed for mounting on solid steel structures, girders, and I-beams.

Model SA13A Type B Anchor EN 795IS 3521AS/NZS 5532ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA13A Type B Anchor
Material	Stainless steel and alloy steel
Minimum Breaking Strength	23kN
Preformed Hole of Dia	21mm to 30mm
Thickness of Structure	Upto 340mm
Net Weight	1.25kg ± 0.01kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	Certified to EN 795:2012 Type B, IS 3521(Part 7):2021 SA13 also Certified to AS/NZS 5532:2013, ATEX 2014/34/EU Conforms to ANSI Z359.18-2017 Type A

Key features

Strong and reusable girder anchor for fall protection
Static strength greater than 23 kN for reliable safety
Quick and simple single-handed installation
Built from alloy steel and stainless steel with polymer moulding
Lightweight at just 1.25 kg for ease of handling

Applications

Steel Structure
Concrete Structure

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
