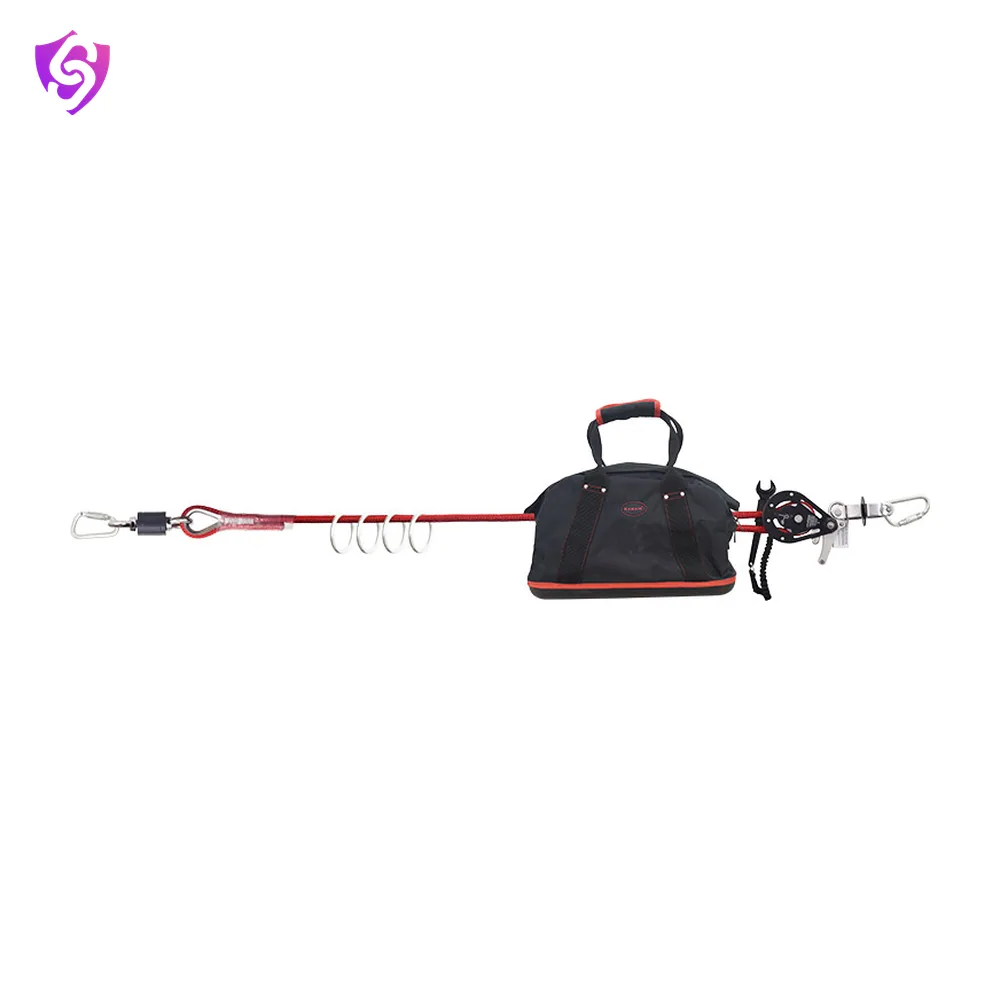

Horizon 4 Man Temporary Horizontal Rope Anchorage Line

Name: Karam Horizon 4 Man Temporary Horizontal Rope Anchorage Line
Brand: Karam

The PN3001 is a versatile temporary horizontal rope lifeline designed to support up to four users working simultaneously.

Model PN3001 EN 795

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN3001
Rope Type	Kernmantle rope of dia 16mm
Material of Tensioner	Aluminium and stainless steel
Attachment Ends	One end-swivel connector with PN113 other end-tension indicator with PN113
Anchorage Type	Forged galvanized steel O-rings. Qty-4 nos
Max. No. of Users	4 Users
Max Span Length	5m to 25m
Weight	9.28kg ± 0.10kg
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 795:2012 Type C, TS 16415:2013 Type C

Key features

Supports up to four users at once
Smooth cross-over movement without detachment
Tension indicator ensures correct setup
Comes packed in a portable storage bag

Applications

Anchorage

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
