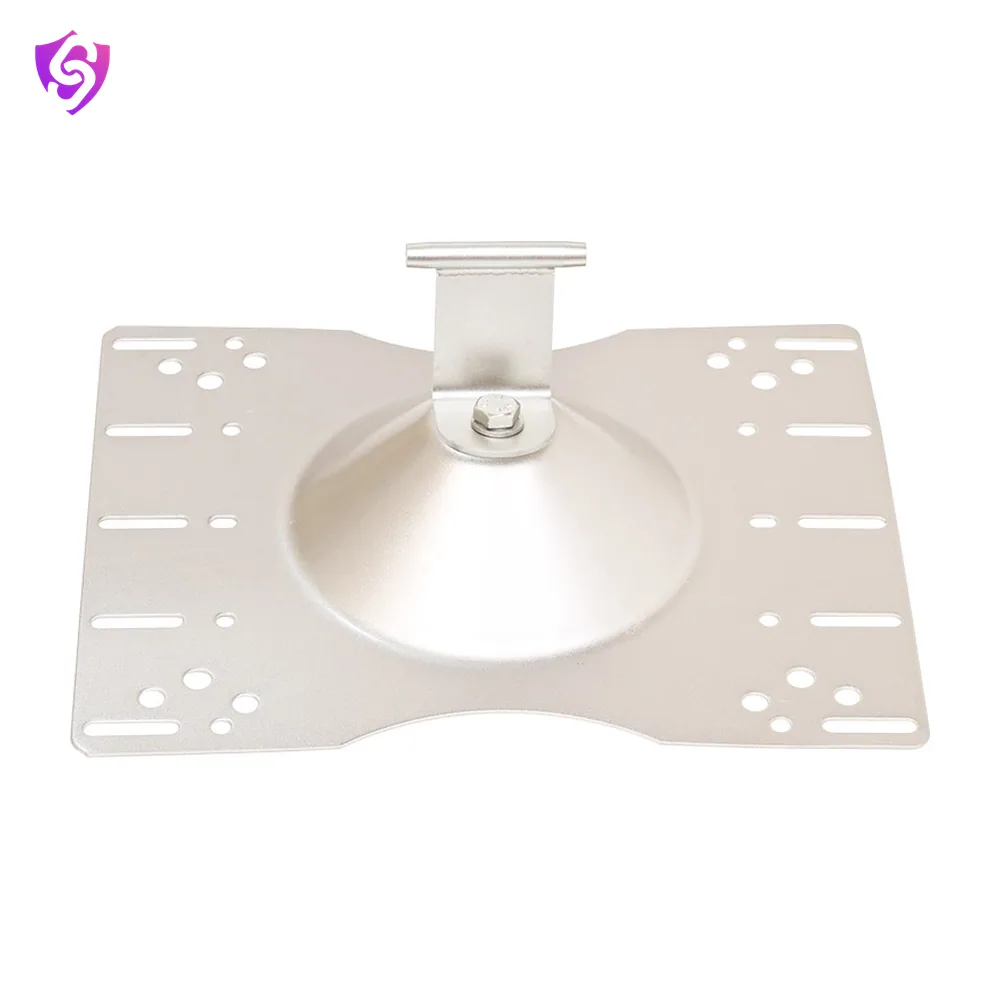

Intermediate Anchor Post for Trapezoidal Roof

Name: Karam Intermediate Anchor Post for Trapezoidal Roof
Brand: Karam

The SA 87A(I) 350 Intermediate Anchor Post provides secure fall protection for trapezoidal roofs, offering essential support for safety harnesses in elevated workspaces.

Model SA87A(I) 350 EN 795AS/NZS 5532

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	SA87A(I) 350
Material	Stainless Steel 316
Finish	Body: ED coated Grey Intermediate: Electropolished
Weight	1.96 kg
Minimum Breaking Strength	15kN
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 795:2012 Type C, AS/NZS 5532:2013

Key features

Intermediate Anchor post designed to be fixed on the Trapezoidal Roof with help of rivets and self drilled screws supplied with anchor posts.
Anchor to be fixed on the roof sheets peak to prevent water clogging.
Centre holes to be fixed on purling by using screw.
It is compatible with pitch from 240mm, 284 to 350mm on trapezoidal sheets.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
