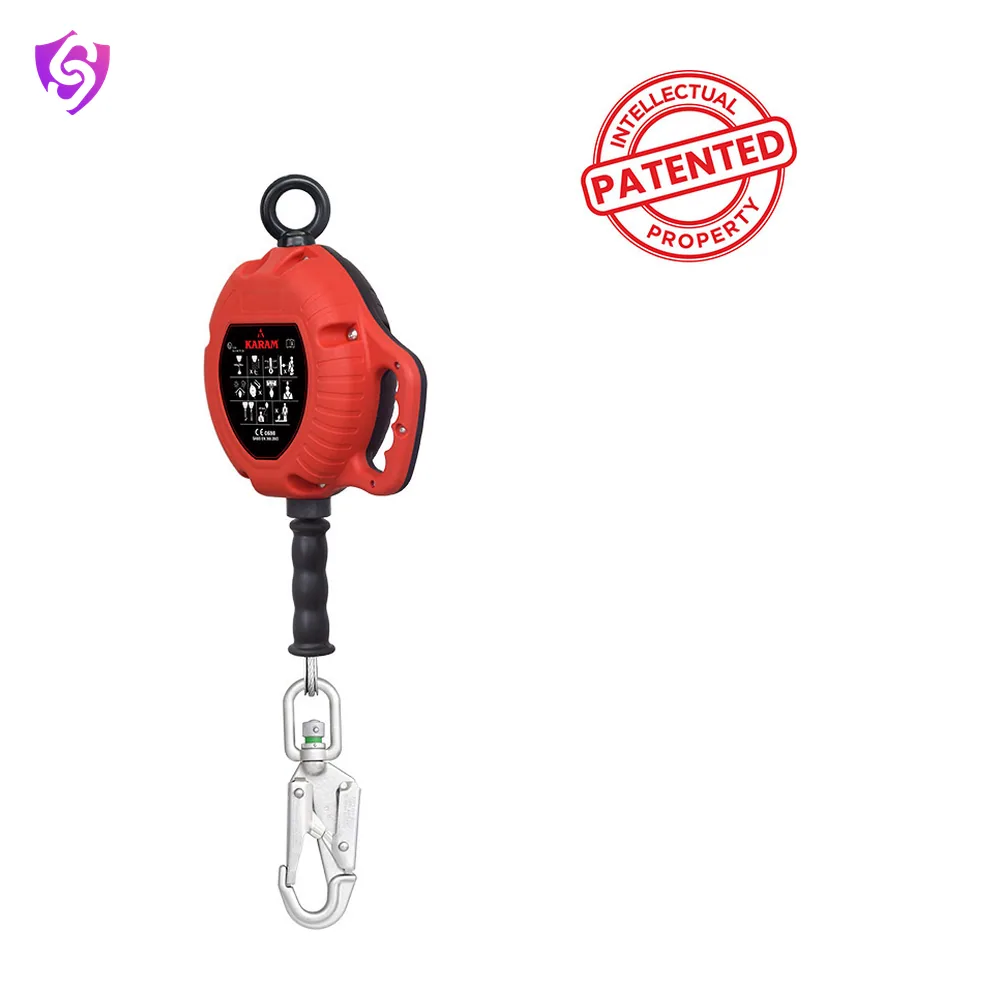

Retractable Fall Arrester SS Wire Rope Block

Name: Karam Retractable Fall Arrester SS Wire Rope Block
Brand: Karam

The KARAM TPGS 07 SS Retractable Fall Arrester Block is engineered to deliver reliable fall protection with smooth and controlled movement at height.

Model TPGS07SS EN 360ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	TPGS07SS
Casing Type	Plastic casing.
Rope Type and Dia	Stainless steel wire rope Ø4.8mm.
Static Strength	13kN for 3 minutes
Attached Hook	PN 162SS
Wire Rope Length	07 Meters
Weight	3.40 kgs
Warranty	6 months from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Conforms to EN 360:2023, ATEX 2014/34/EU

Key features

Retractable stainless steel wire rope for smooth movement
Robust and durable plastic casing for long lasting performance
Swivel stainless steel snap hook with load indicator
Anchorage eye for secure connection
7 meter working length supporting height safety applications

Applications

Fall Protection
Oil and Gas Industries
Rainy Areas
Work at Height
Industrial Sites

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
