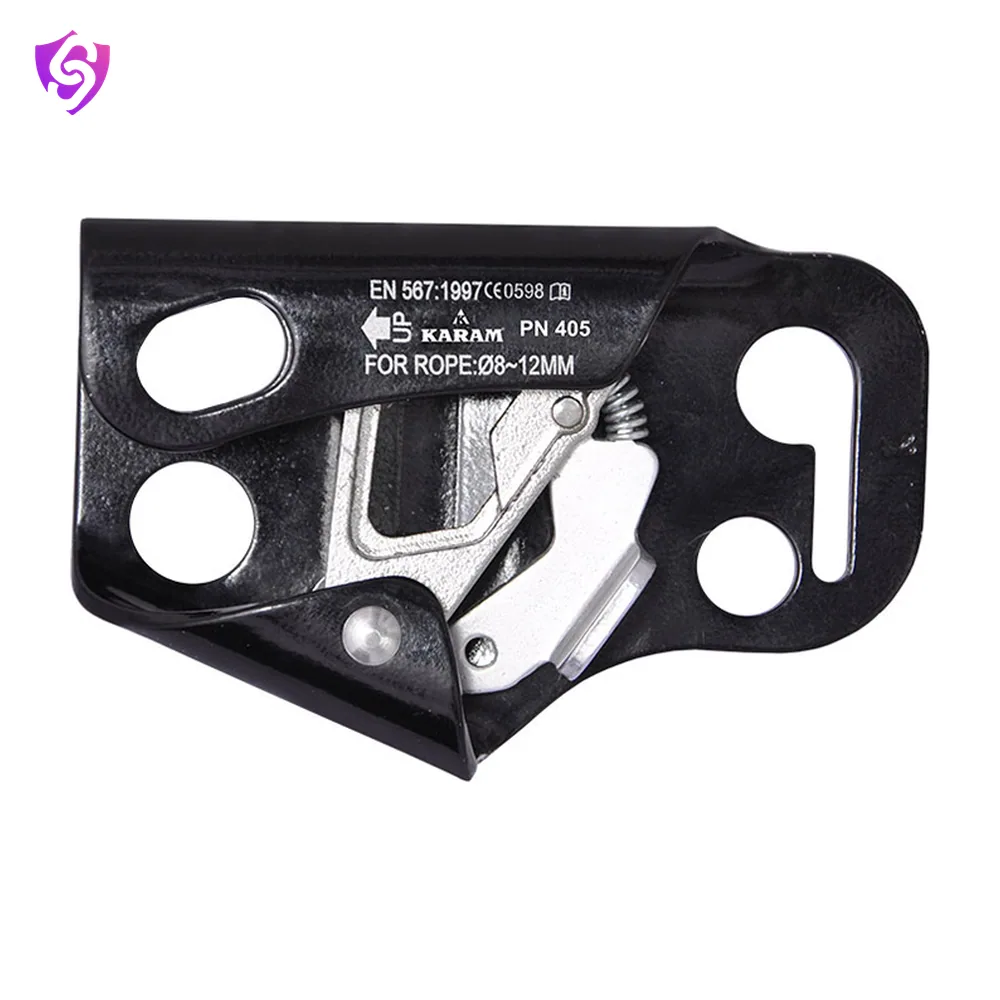

Rope Clamp

Name: Karam Rope Clamp
Brand: Karam

The PN405 Rope Clamp is a dependable device designed to grip and secure a rope during rope-intensive tasks such as climbing, caving, and rescue work.

Model PN405 EN 567EN 12841EN 341

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN405
Material	Aluminium alloy
Weight	157.0gm
Works on	10.0mm to 12.0mm dia kernmantle rope
Finish	Coloured, anodized
Certified to	EN 341 Type 2 Class B, EN 12841:2006
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 567:2013, EN 12841:2006 Type B

Key features

Grips the rope securely during climbing and rescue tasks
Can be attached to a harness using a webbing strap or connector
Locks under load in one direction and moves freely in the other
Includes a camming mechanism with spring or lever for firm engagement

Applications

Fall Arrest
Rope Access

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
