Winches

Name: Karam Winches
Brand: Karam

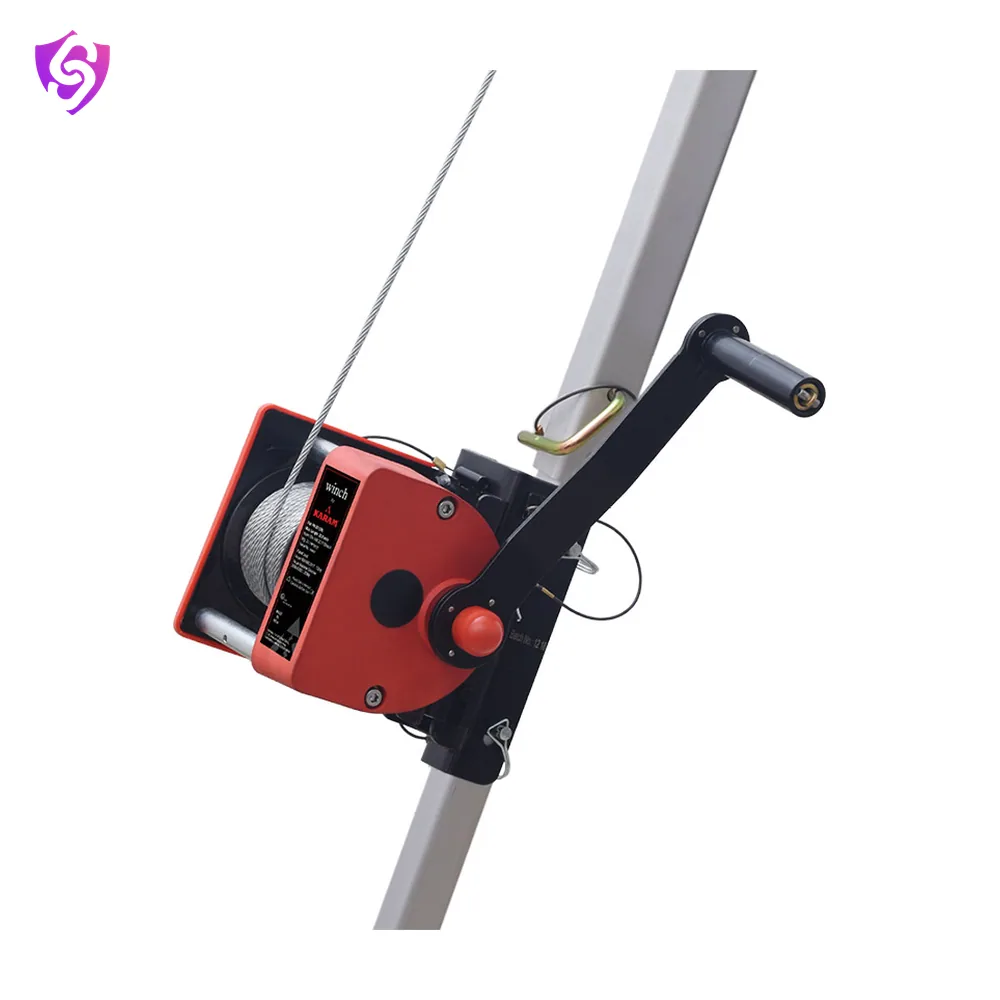

The PN801(DP) Winch is a reliable manual lifting system engineered for safe raising or lowering of personnel and materials into confined spaces.

Model PN801(DP) EN 1496ATEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN801(DP)
Winch Line Material	Galvanized steel wire rope of dia 4.8mm
Length of Cable	20.0m and 25.0m
Connector	Steel screw locking karabiner PN112
Compatibility	Can be mounted on megapod, tripods and K-pod with the help of their universal mounting brackets respectively
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 1496:2017 Class A, Atex 2014/34/EU

Key features

Enables controlled lifting and lowering in confined spaces
Supports safe personnel and material handling
Designed for vertical access in restricted environments
Integrates easily with KARAM confined space setups

Applications

Construction
Electricity
Oil and Gas Industry
Telecom
Chemical Industry
Civil Industry

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
