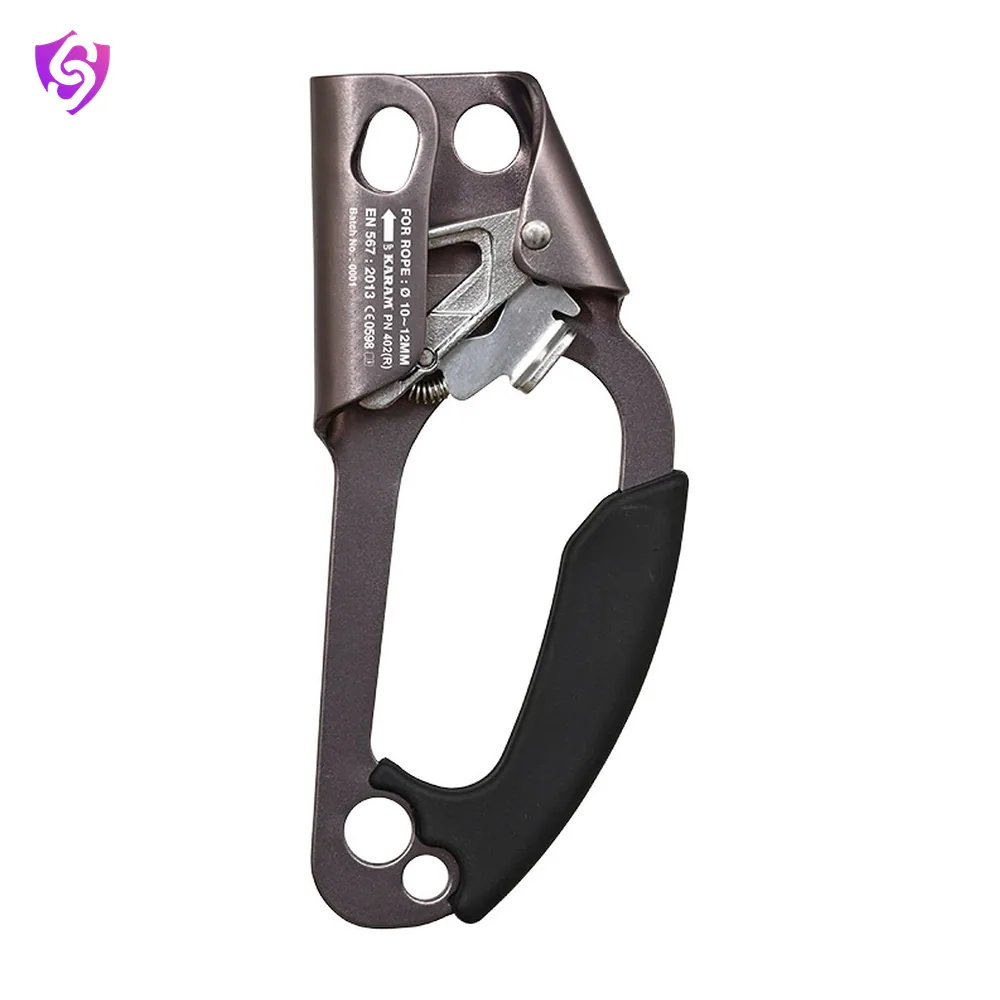

Rope Clamp (Right Hand)

Name: Karam Rope Clamp (Right Hand)
Brand: Karam

The PN402(R) Rope Clamp is a dependable right-hand device designed to grip and secure a rope during demanding vertical activities.

Model PN402(R) EN 567EN 12841EN 341

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN402(R)
Material	Aluminium alloy
Weight	195.0gm
Works on	10.0mm to 12.0mm dia kernmantle rope
Finish	Coloured, anodized
Certified to	EN 341 Type 2 Class B, EN 12841:2006
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	EN 567:2013, EN 12841:2006 Type B

Key features

Grips and secures the rope to support safe ascent and rope-based movement
Used widely in climbing, caving, mountaineering, and rescue operations
Built with a frame, camming mechanism, and spring/lever for controlled engagement
Prevents the rope from sliding in one direction, ensuring reliable performance

Applications

Fall Arrest
Rope Access

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
