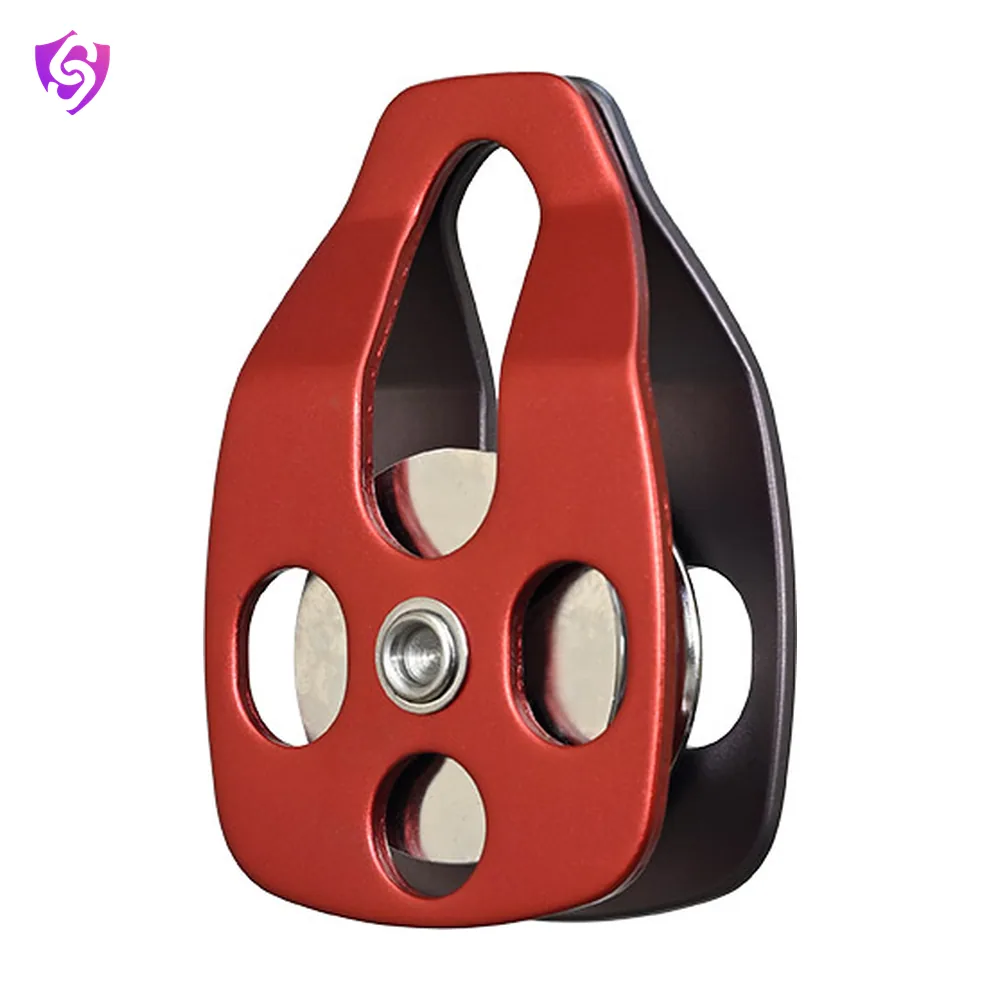

Single Pulley on Ball Bearing with One Side Attachment

Name: Karam Single Pulley on Ball Bearing with One Side Attachment
Brand: Karam

A single pulley on a ball bearing with one side attachment is a pulley system that incorporates a single pulley equipped with a ball bearing for smooth rotation and features a fixed attachment point on one side.

Model AP012(SS)(BB) EN 12278

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	AP012(SS)(BB)
Bearing Type	Ball bearing
Sheave Material	Stainless steel
Weight	410.0gms
Warranty	1 year from the date of invoice against any manufacturing defects. For more details on the terms and conditions, click here .
Standards	Certified to EN 12278:2007

Key features

Minimum breaking strength: 36kN
Finish: Body-anodized; pulley: polished
Can be used on a rope of dia 16mm

Applications

Fall Arrest
Rope Access

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
