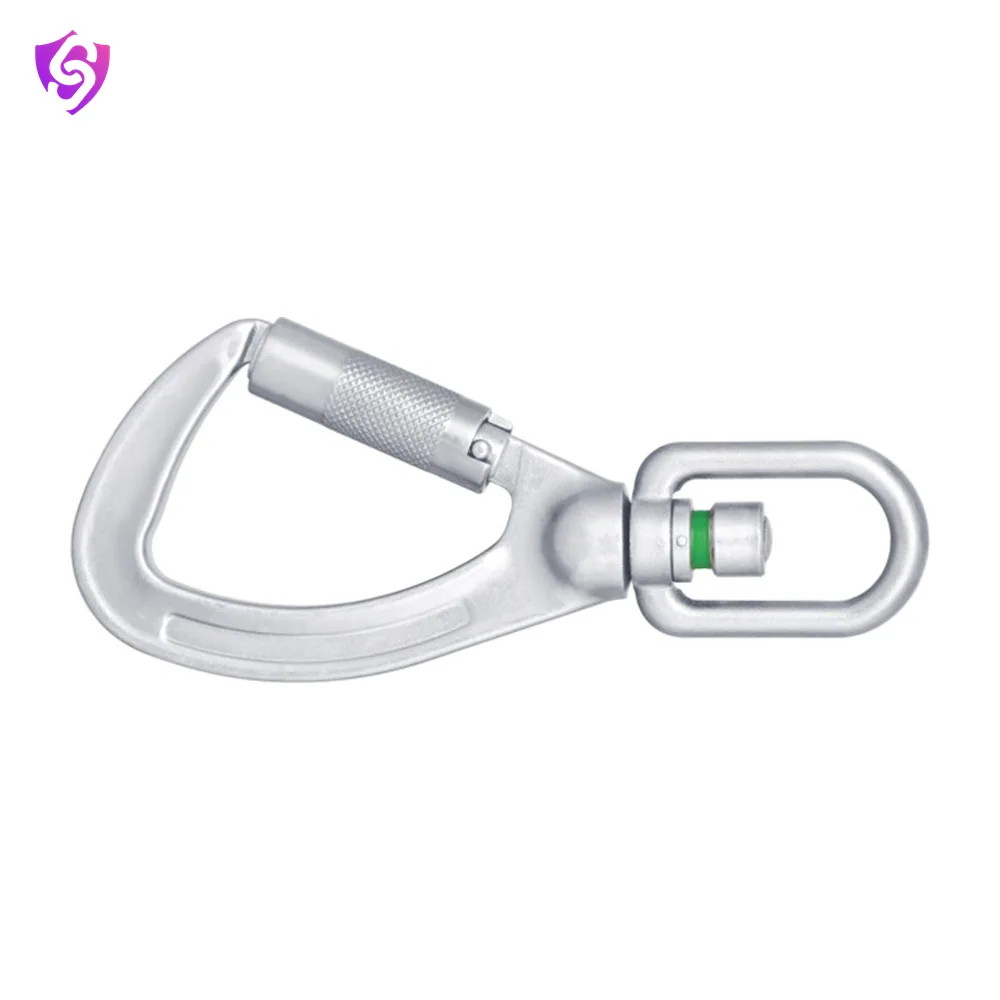

Steel Swivel Quarter Turn Locking Bulb type Snap Hook with Load Indicator

Name: Karam Steel Swivel Quarter Turn Locking Bulb type Snap Hook with Load Indicator
Brand: Karam

The PN165 is a heavy-duty swivel snap hook designed to provide secure and reliable connections in height safety systems.

Model PN165 EN 362

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Karam
Model	PN165
Material	Alloy steel
Gate Opening	22.0mm
Minimum Breaking Strength	23kN
Net Weight	400.0gm
Finish	Silver/golden yellow galvanized, shot blasted on request
Warranty	1 year from the date of invoice against any manufacturing defects.
Standards	EN 362:2004 Class T

Key features

Forged alloy steel body for strength and durability
Quarter-turn locking nut for quick and secure fastening
Self-closing, anti-snag gate enhances safety and ease of use
Swivel ring captive eye prevents rope or lanyard twisting
Built-in load indicator signals if a fall has been arrested

Applications

Fall Protection
Rope Access
Mountaineering
Rescue

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
