Udyogi

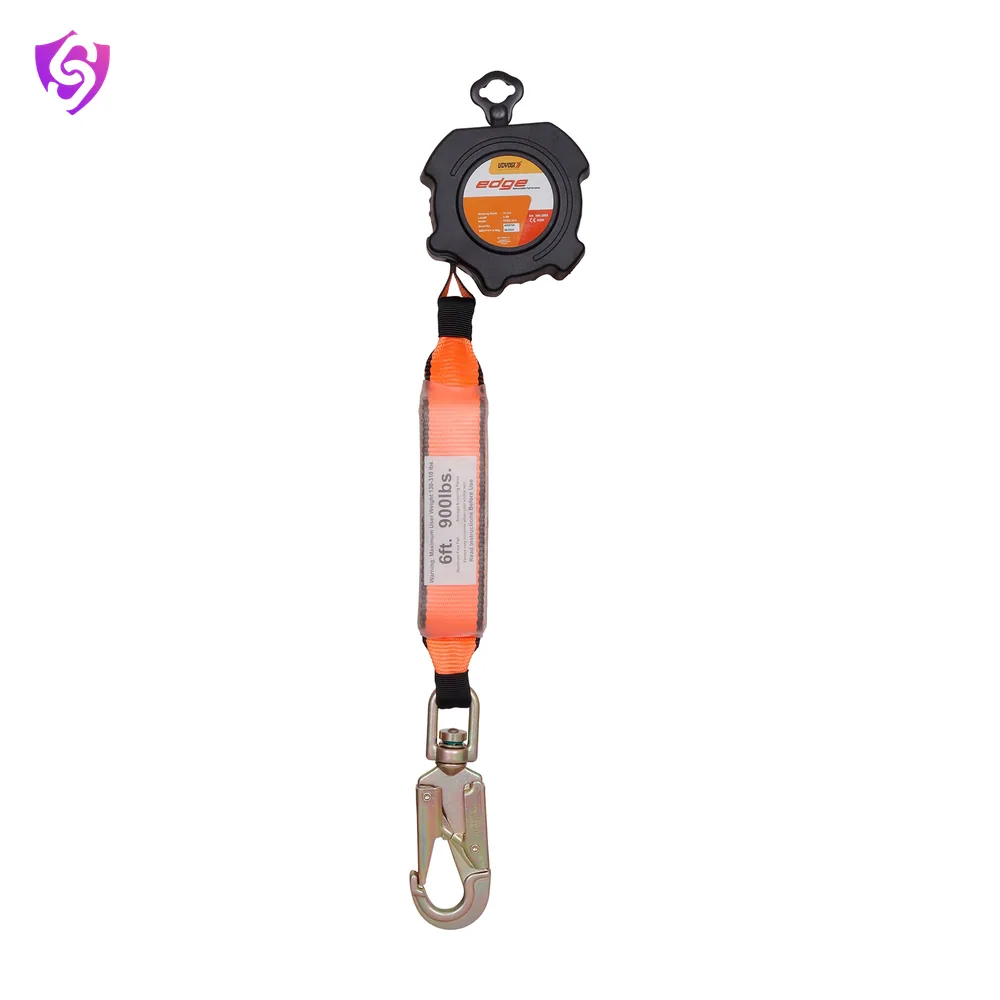

EDGE 3.5 retractable fall arresters

Self-retracting lifeline (SRL), is a safety apparatus utilized in personal fall arrest systems (PFAS).

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	EDGE 3.5
Wire Rope Material	Galvanized Steel
Rope Dia	Ø4.8 mm
Breaking Strength	15 kN (Minimum)
Safe Working Load Capacity	100 kg
Feature	Retractable fall arresters quickly detect a fall and arrest it in a short distance. The SRL disperses the energy of a fall over a short distance, reducing the force on the user's body and avoid the free fall
Weight	1.45 kg Approx.
Length	3.50 meter

Key features

Retractable fall arresters quickly detect a fall and arrest it in a short distance.
They don't restrict movement and are easy to use Vertical and up to 40% Horizontal movement even with minimal effort.
They can withstand harsh conditions, including extreme weather, chemicals, and impacts.
They disperse the energy of a fall over a short distance, reducing the force on the user's body and avoid the free fall.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
