PSA AG10K Hub A rescue kits

Name: Udyogi PSA AG10K Hub A rescue kits
Brand: Udyogi

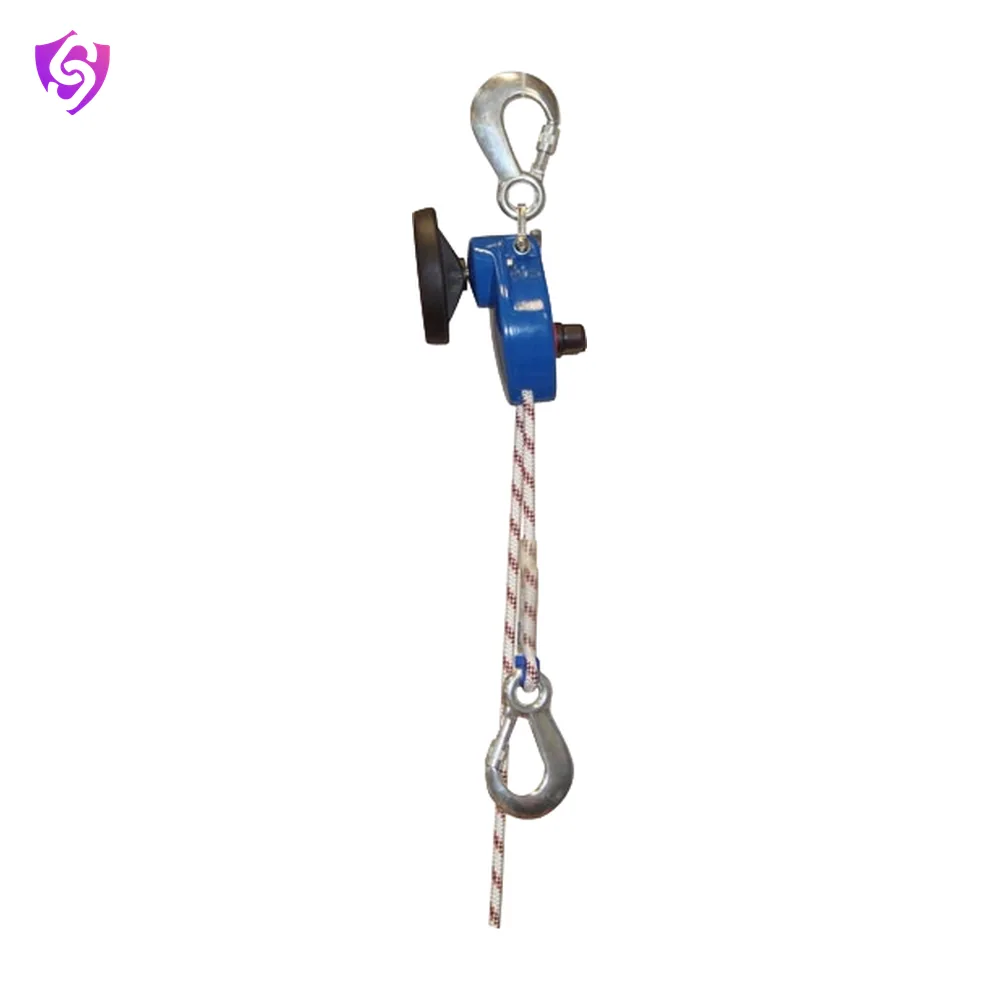

The PSA Secure AG10K Hub A is a descend and evacuation system for emergency situations on wind turbines and other elevated structures.

EN 341EN 1496

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	PSA AG10K Hub A
Material	Aluminium Housing
Maximum Descend Distance	60m
Maximum Descend Speed	0.7m/s
Safe Working load	225kg
Rope Material	9mm Mountaineering kernmantle Rope Clamp jaws to hold the device steadily at any point
Feature	AG10 HUB A with carabinercand long axis nut to add drilling machine plastic hand wheel with 60m Abseiling rope.
Certificate	Certified EN341:2011 and EN1496:2017
Rope Length	60/100/120/160/200 meter
Weight	1.1 kg (approx. only device)

Key features

Rescue equipment AG10K Hub A is mainly designed as a descent and evacuation system in emergency situations, for wind turbines and other elevated structures.
Centrifugal braking mechanism helps control the speed of descend.
Clamp cleats on the devices help in staying suspended at a height.
Available with Power drill machine, carabiner, long axis nut to add the drilling machine plastic hand wheel with 60m abseiling rope.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
