Udyogi

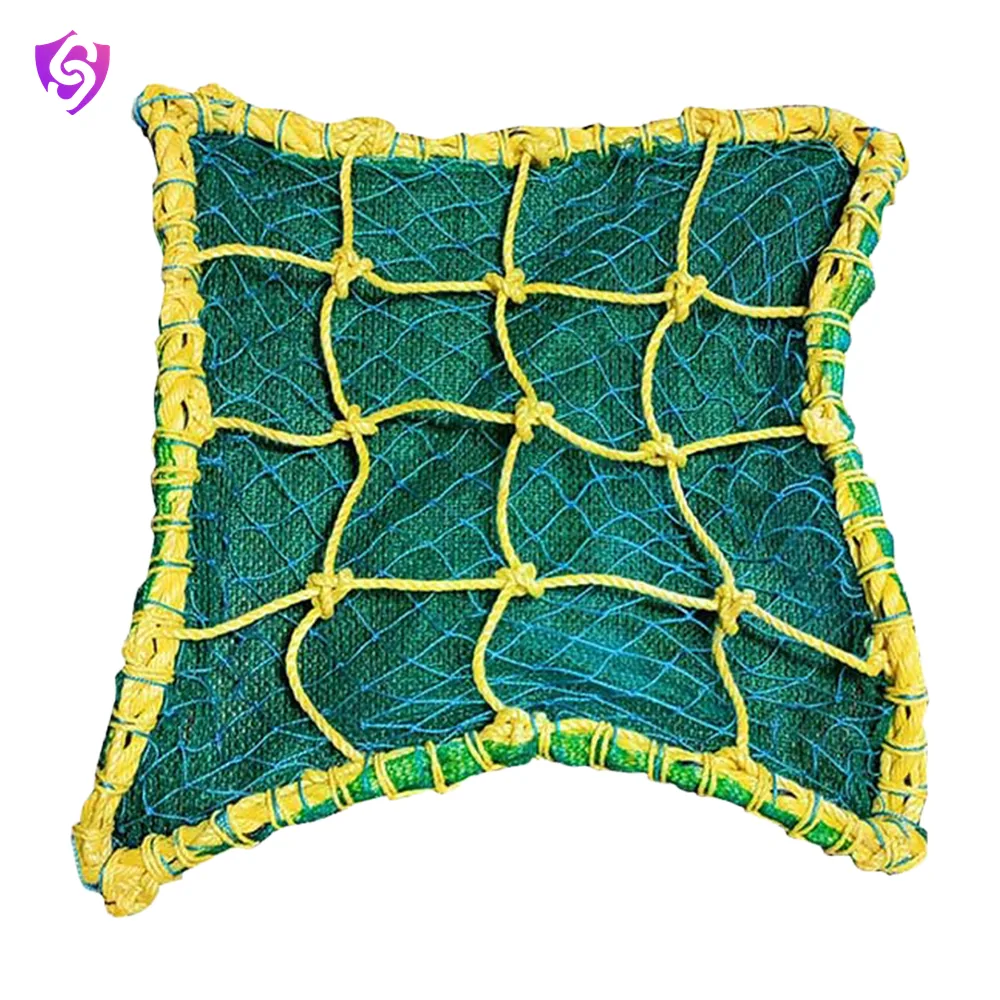

SN003 Plus - Triple Layer Safety Net

Name: Udyogi SN003 Plus - Triple Layer Safety Net
Brand: Udyogi

4 mm Triple Layer Safety Net

IS 5175

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Border Rope	12 mm PP Rope (ISI Marked).
1st Layer	4 mm PP Rope, having mesh size 100mm x 100mm.
Fabrication Type	Hand Knotted.
2nd Layer	0.75 mm Overlay HDP Net, having mesh size 20-25mm.
3rd Layer	120 GSM Monofilament Net. Monofilament UV Stabilized Net with Welding / Grinding Splatter Resistant.
Tie Rope & Tie Cord	12 mm dia PP rope of 2 meters length at all 4 corners of the border rope only, and tie cord of 2 meters at every 1.5 meter interval.
Standard Size	10x3 Mtr / 10x5 Mtr / 10x10 Mtr
Standard / Approved	Rope Certified to IS 5175:1992, Safety Net as per IS:11057:1984.

Key features

Triple-Layer Protection – Heavy-duty 4mm polypropylene rope net combined with two additional monofilament layers for maximum fall and debris safety.
Reinforced 12mm border rope with breaking strength over 2200 kgf for secure installation.
Extra monofilament layers prevent even small tools, materials, and particles from falling through.
Durable construction designed to withstand harsh outdoor conditions.
Ideal for construction sites, industrial plants, and public safety zones requiring both fall arrest and debris control.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
