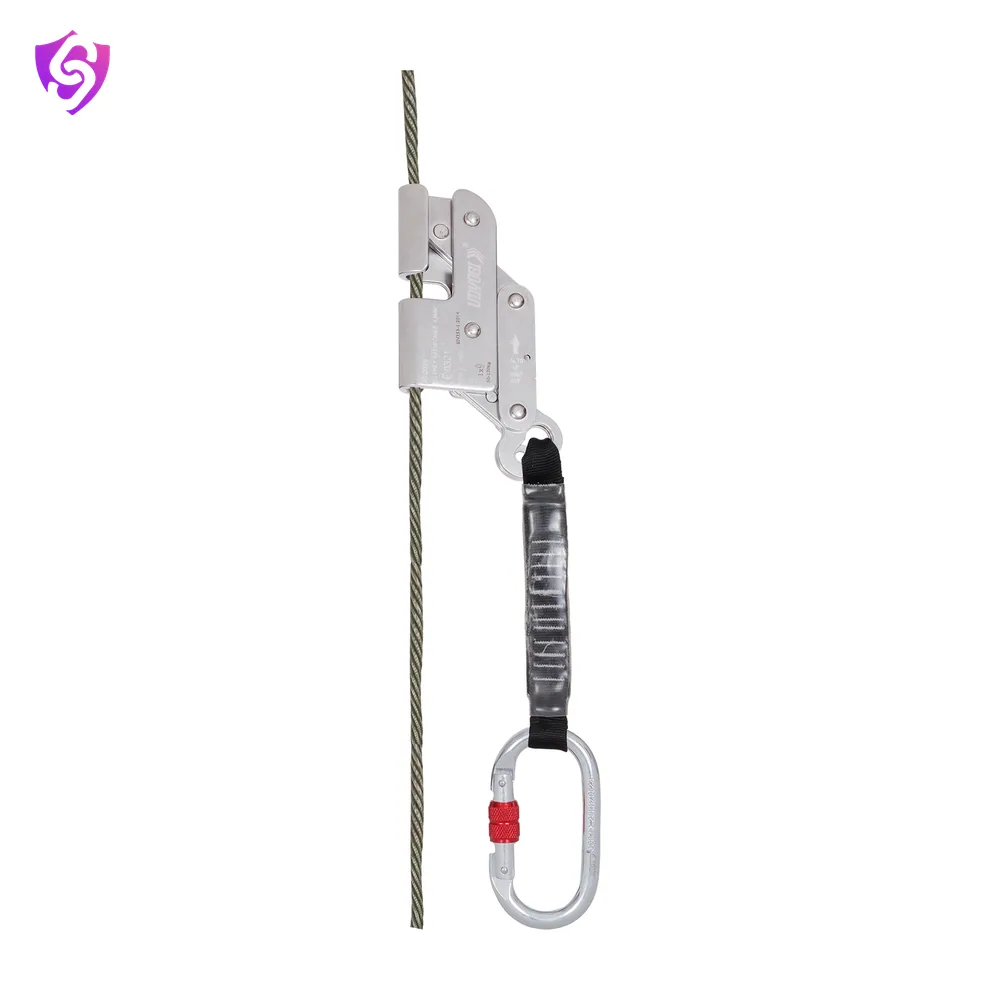

UB2020S rope grabs

The wire rope fall arrester with Integrated Shock Absorber is a guided-type fall arrest system designed for vertical wire rope lifelines.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	UB2020S
Material	Stainless Steel
Rope Dia	Ø8 mm
Breaking Strength	15 kN (Minimum)
Feature	Anti-Upside-Down Device with carabiner. Rope grabs are designed to lock onto a lifeline in the event of a fall, arresting the fall immediately. It works with the lifeline to provide shock absorption
Weight	0.65 kg Approx.
Eye Size	11 mm
Required Rope Material	Stainless steel wire rope

Key features

Anti-Upside-Down Device with carabiner.
Rope grabs are designed to lock onto a lifeline in the event of a fall, arresting the fall immediately.
Rope grabs work with the lifeline to provide shock absorption.
Some rope grabs are designed to be hands-free, allowing the operator to move up and down the lifeline without having to manually adjust the rope length.
Rope grabs can be adjusted to work at the required length.
Some rope grabs are lightweight, making them suitable for emergency ascending climbing kits.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
