Udyogi

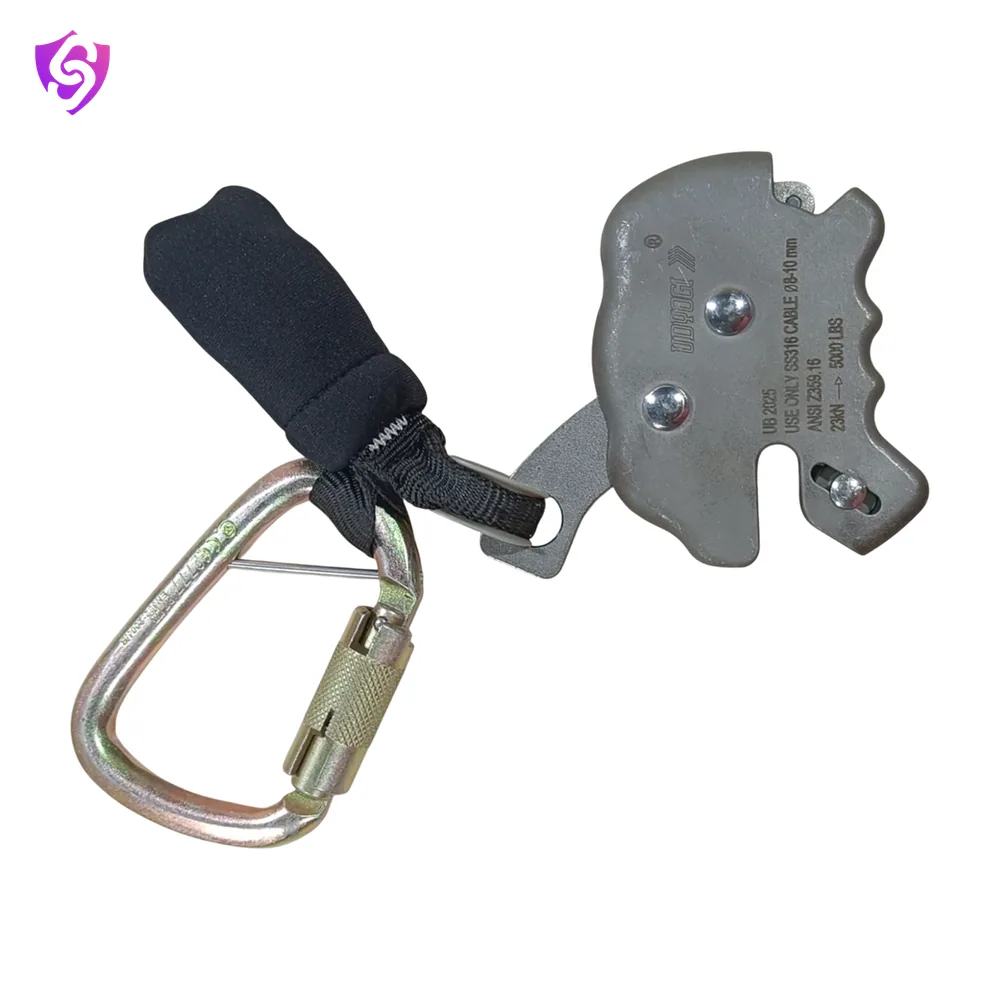

UB2025 rope grabs

The wire rope fall arrester is a guided-type fall arrest system designed for vertical wire rope lifelines.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Udyogi
Model	UB2025
Material	Stainless Steel
Rope Dia	Ø8-10 mm
Breaking Strength	23 kN 5000 lbs
Feature	Anti-Upside-Down Device with carabiner. Rope grabs are designed to lock onto a lifeline in the event of a fall, arresting the fall immediately. It works with the lifeline to provide shock absorption
Weight	0.65 kg Approx.
Eye Size	14.5 mm
Required Rope Material	Stainless steel wire rope

Key features

Anti-Upside-Down Device with integrated fall arrester and captive pin lock carabiner.
Automatic Fall arrest: Locks instantly on the lifeline in the event of a fall, providing immediate protection.
Hands-free operation: Allows continuous protection, no requirement of any manual adjustment.
Durable & Corrosion Resistant: Built for harsh industrial Environment like towers, ladders, and confined spaces.

Applications

Construction and steel erection
Telecom and power towers
Ports, shipyards and tank cleaning
Maintenance at height

Care and replacement

Inspect harnesses, lanyards and connectors before every use. Remove from service any equipment that has arrested a fall, or shows cuts, burns, chemical damage or deformed hardware. Have equipment inspected by a competent person at least every twelve months.
