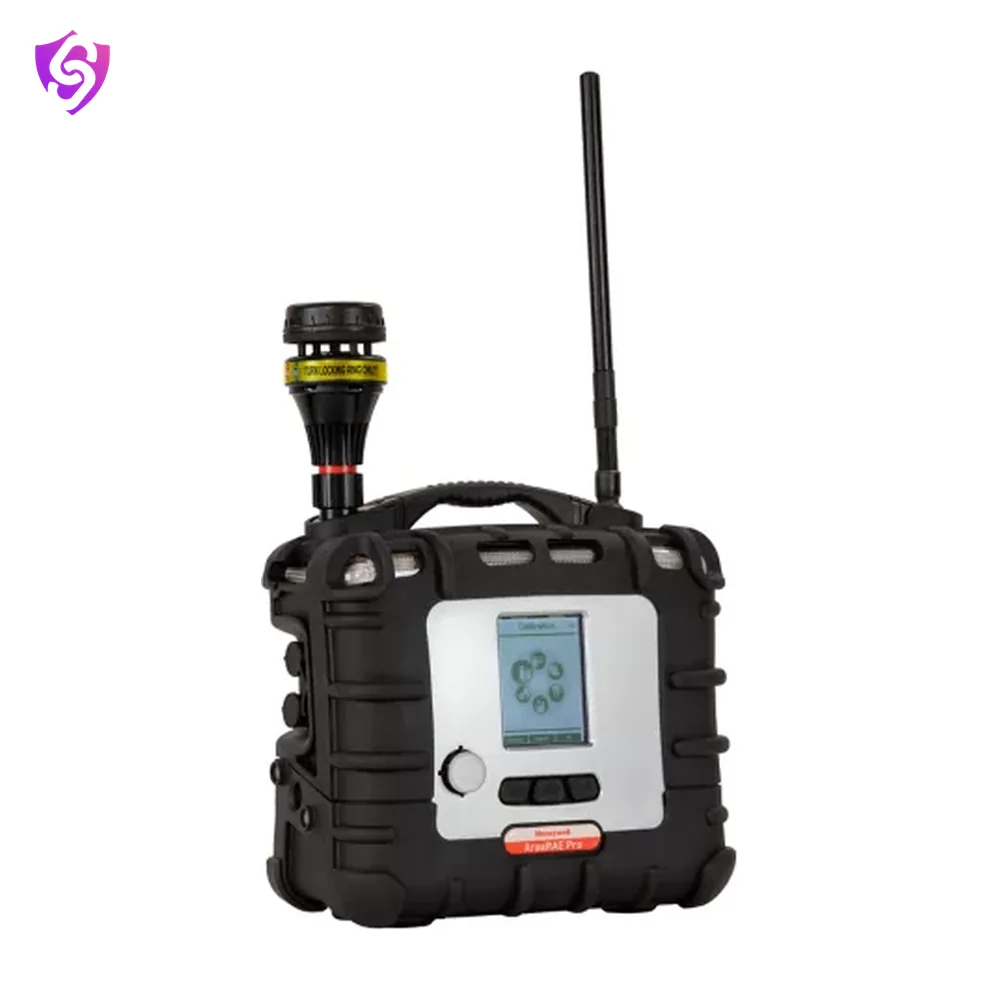

AreaRAE Pro Portable Gas Monitor
Once signed in, you may be able to access additional documents for your account.
DatasheetSpecifications, standards, care- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Warranty | 6 Months to 4 Years |
| Alarm Included | Yes |
| Alarm Type | Audible, Visual, Vibrating |
| Datalogging Interval | 1 Min |
| Datalogging Capable | Yes |
| Datalogging | 90 Days |
| Display Included | Yes |
| Display Type | LCD |
| User Options | 3 operation and programming keys |
| Communication Ports | USB |
| Sampling Pump Included | Yes |
| Wireless Technology | BLE, MESH, WiFi |
| Weight range | 6.3 to 6.5 kg |
| Dimension | H: 314 mm W: 306 mm D: 166 mm |
| Humidity Range | 0 to 95% RH (Non-Condensing) |
| Sensor Range | VOC (0-2000ppm), LEL (0-100%LEL), CO2 (0-50000ppm), NH3 (0-100ppm), CO (0-2000ppm), Cl2 (0-50ppm), ETO (0-500ppm), H2 (0-2000ppm), HCL (0-15ppm), HCN (0-50ppm), HF (0.5-10ppm), H2S (0-1000ppm), O2 (0-30%), SO2 (0-20ppm), NO (0-250ppm), NO2 (0-20ppm), PH3 (0-20ppm), Gamma (0.01 μSv/h to 0.2 mSv/h) |
| Sensor Ports | 7 |
| Wireless Communication | Wi-Fi |
| Wireless Enabled | Yes |
| Gas Type | VOC, LEL, CO2, NH3, CO, Cl2, ETO, H2, HCL, HCN, HF, H2S, O2, SO2, NO, NO2, PH3, Gamma |
| GPS | Standard Equipment in Every Unit |
| Wireless Approvals | IEEE 802.11 b/g Wi-Fi |
| Performance Class | ISA-12.13.01 / LEL CSA C22.2 No. 152 / MIL-STD-810G and 461F |
| Operating Hours | 12 to 20 Hours |
| Data Interval | 1 to 3600 Sec |
| Communication | ISM Modem / USB / Wi-Fi |
| Data Storage | 24 MB |
| Keypad Type | 3 Operation and Programming Keys |
| Minimum Temperature | -20 degree Celsius / -20°C / -4 degree Fahrenheit |
| Maximum Temperature | 140 degree Fahrenheit / 50°C / 60 degree Celsius |
Key features
- Monitors up to seven threats, including Gamma radiation , VOCs, combustibles, Toxics and Oxygen
- Ppb performance level on VOCs measurement
- Dedicated gamma sensor slot
- Local weather station
- Part of ConneXt Safety Solutions with ISM and Wi-Fi wireless configurations
- Wireless technology sends real-time data to command station up to two miles (3km) away
- Secondary radio module (Mesh) act as a communication Hub for other wireless devices
- Ruggedized, portable, and weather-resistant design for harsh environments
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
