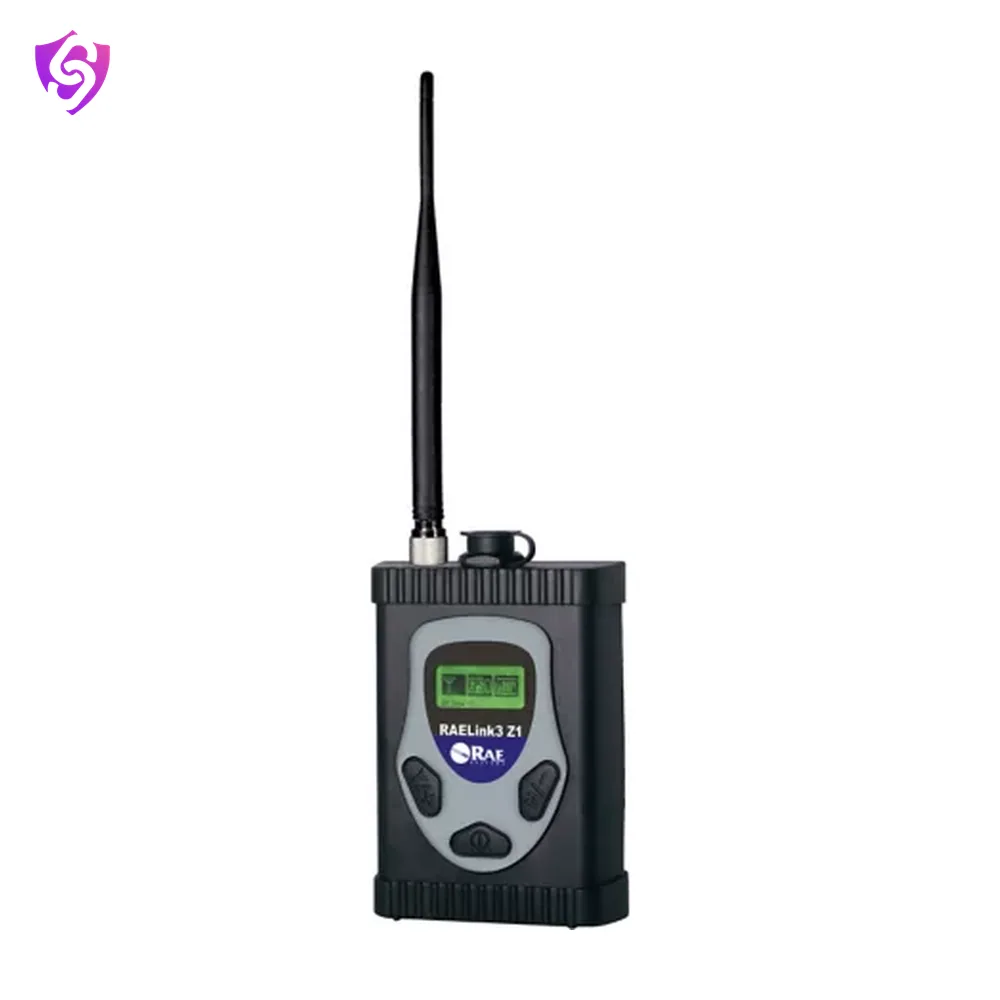

RAELink 3 Wireless Transmitter

The RAELink3 wireless transmitter enables a central ProRAE Guardian base station to view sensor and alarm data from RAE Systems portable monitors and select third-party devices for improved situational awareness and faster incident response.

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Display Type	LCD
Weight range	17.3 oz
Size	L: 4.73 in W: 3.4 in H: 1.85 in
Humidity Range	0 to 95% RH (Non-Condensing)
Range	Up to 1.2 miles (2 km)
Wireless Frequency	ISM License-Free Band 2.4 GHz
Wireless Approvals	FCC Part 15
Digital Interface	RS232
Battery Backup	7.4V/1650 mAh
Radio Module	Bluetooth 2.0
Keypad Type	Three Operation and Programming Keys
Minimum Temperature	-4°F
Maximum Temperature	131°F
Battery Run Time	Up to 18 Hours Continuous Operation on a Charge
Battery Capacity	1650 mAh
Standards	US and Canada: Class I, Division 1, Groups A, B, C, D, T4
Ingress Protection	IP65
Housing Material	Stainless Steel
Application	CBRNE / Clandestine Labs / Confined Space Entry / Decontamination / Emergency Response / Environmental Cleanups/Remediation / Fence Line Monitoring / Hazmat Response / Indoor Air Quality / Leak Detection / Marine and Offshore Wells / Perimeter Monitoring / Plant Shutdown and Turn-Around / Urban Search and Rescue / Venue Protection / Worker Exposure Monitoring
Industry	Energy / Government & Public Sector
