Honeywell

BW™ Max XT II Multi Gas Detector

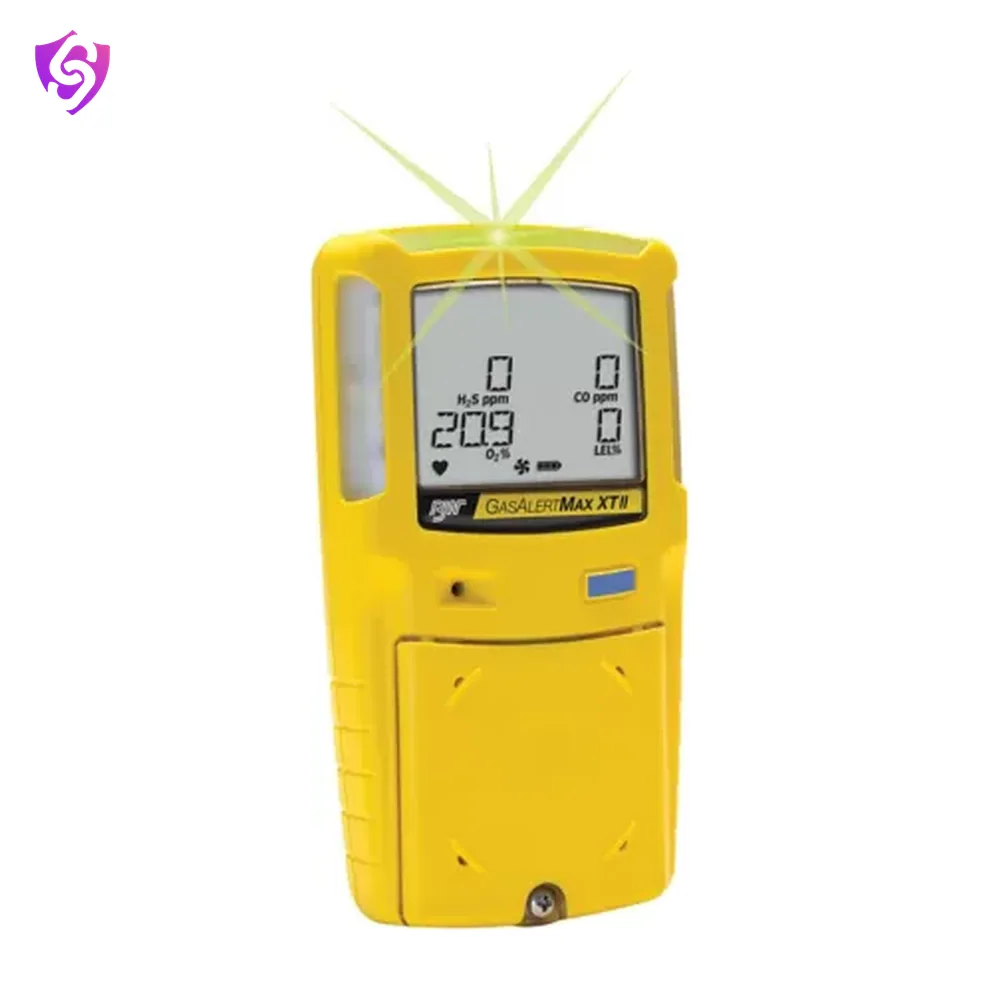

Name: Honeywell BW™ Max XT II Multi Gas Detector
Brand: Honeywell

Once signed in, you may be able to access additional documents for your account.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	11.5 ounce av / 328 gram
Weight range	328 g gram
Instrument Size	5.1 x 2.8 x 2.0 in. / 13.1 x 7.0 x 5.2 cm
Sensor Range	CO: 0-1,000 ppm / H2S: 0-200 ppm / LEL: 0-100% and 0-5.0% v/v / O2: 0 to 30.0%
Humidity Range	10 to 100% RH (Non-Condensing) percent / 10%-100% percent
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	122 degree Fahrenheit / 50 degree Celsius
Alarm Included	Yes
Series Name	Honeywell BW Max XT II
Languages	English, French, German, Spanish, Portuguese
Alarm Type	Audible (95 dB) / Vibrating / Visual
Alarm Settings	Low, High, STEL, TWA, OL (Over Limit), Low Battery, Pump
Charging Time	6 hours
Battery Run Time	13 Hours hours / 8 Hours @-20°C hours / 8-13 hours
Batteries Required	Yes
Batteries Included	Yes
Standards	ATEX: X g II 1 G Ga Ex ia IIC T4 / BR-Exia IIC T4 / IECEx: Ga Ex ia IIC T4 / UL: Class I, Div 1, Group A, B, C, D
Datalogging Capable	Yes
Datalogging	375 hours at 15-second intervals / Standard Datalogging and Event Logging
Display Type	LCD
Display Readout	Low, High, STEL, TWA, OL (Over Limit), Low Battery, Pump
Display Included	Yes
Filter Included	Yes
User Options	Calibration IR Lock / Confidence Beep / Confidence Interval / Datalog Interval / Detector Identification / Force Block Test / Force Bump Test when Overdue / Force Calibration when Overdue / Language Choices (Five) / Latching Alarms / Location Selection / Low Alarm Acknowledge / Safe Display Mode / Safety (Sensor) Lock / Sensor Configuration / Set Custom Start Up Message
Sampling Pump Range	75 ft meter / 75ft (23m) meter
Sampling Pump Included	Yes
Sensor Type	Semi-Conductor Pressure Sensor
Number of Sensors Included	4
Operating Life	2 years
Warranty	2 Years Including All Sensors / Full two year warranty including all sensors
