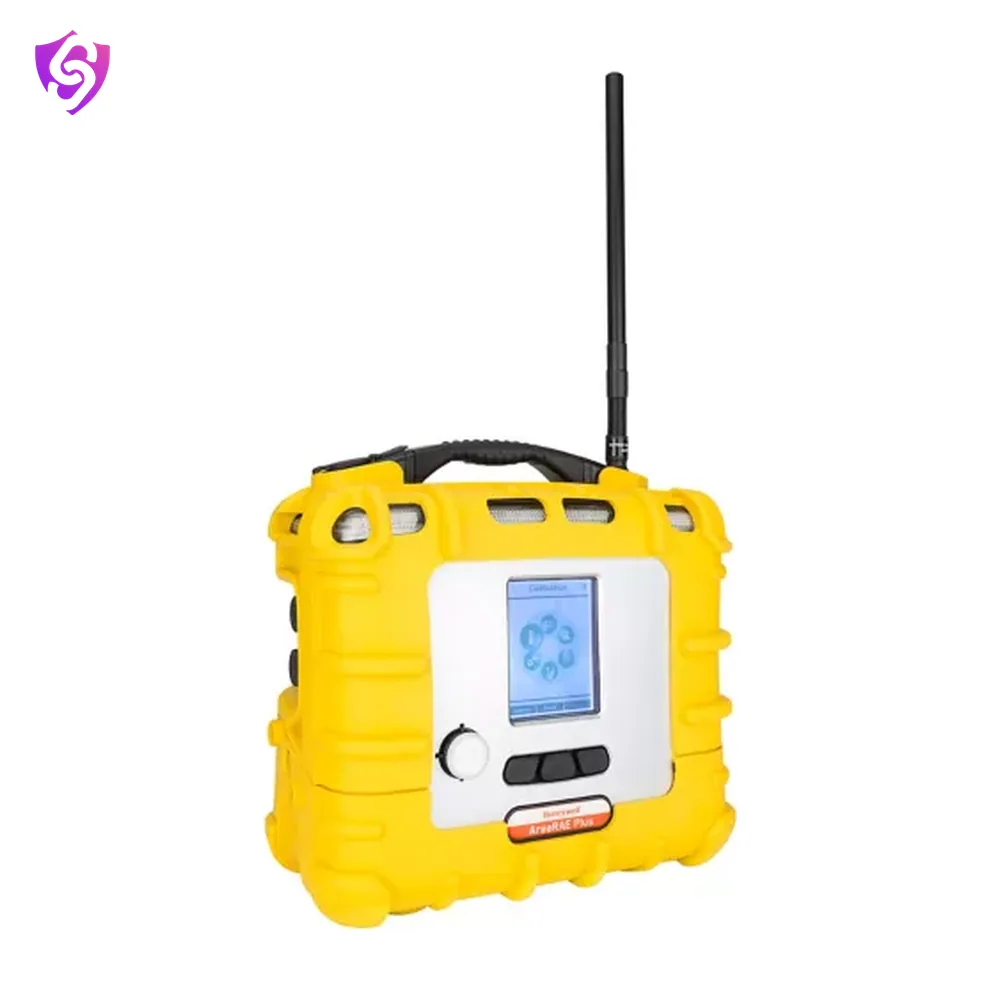

AreaRAE Plus/Pro Multi-Gas Detector

Elevate your gas detectors’ potential with Honeywell's expert maintenance services!

Specifications

Brand	Honeywell
Warranty	Four years for O2 Liquid Oxygen sensors
Alarm Type	Audible, Visual, Vibrating
Datalogging	Continuous data logging (90 days for 7 gas sensors, 1 Gamma
User Options	3 operation and programming keys
Wireless Technology	BLE, MESH, WiFi, LORA
Instrument Size	12.36” x 12.04” x 6.53”
Humidity Range	0%-95%
Sensor Range	VOC (0-2000ppm), LEL (0-100%LEL), CO2 (0-50000ppm), NH3 (0-100ppm), CO (0-2000ppm), Cl2 (0-50ppm), ETO (0-500ppm), H2 (0-2000ppm), HCL (0-15ppm), HCN (0-50ppm), HF (0.5-10ppm), H2S (0-1000ppm), O2 (0-30%), SO2 (0-20ppm), NO (0-250ppm), NO2 (0-20ppm), PH3 (0-20ppm)
Gas Type	VOC, LEL, CO2, NH3, CO, Cl2, ETO, H2, HCL, HCN, HF, H2S, O2, SO2, NO, NO2, PH3
Battery Run Time	20
Standards	US and Canada: Class 1, Division 2, Groups A, B, C, D
Ingress Protection	IP65
Sampling Pump Range	100ft (30m)
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	140 degree Fahrenheit / 60 degree Celsius
Weight	14.33 US Pound / 6.5 kilogram
Industry	Energy / Government & Public Sector

Monitors up to seven threats, including VOCs, combustibles, Toxics and Oxygen
Optional meteorological sensor for tracking toxic plumes
7R+ photoionization detector (PID) for monitoring VOCs at parts per million
Secondary radio module (Mesh) act as an communication Hub for other wireless devices
Ruggedized, portable, and weather-resistant design for harsh environments
Part of ConneXt Safety Solutions with ISM and Wi-Fi wireless configurations
