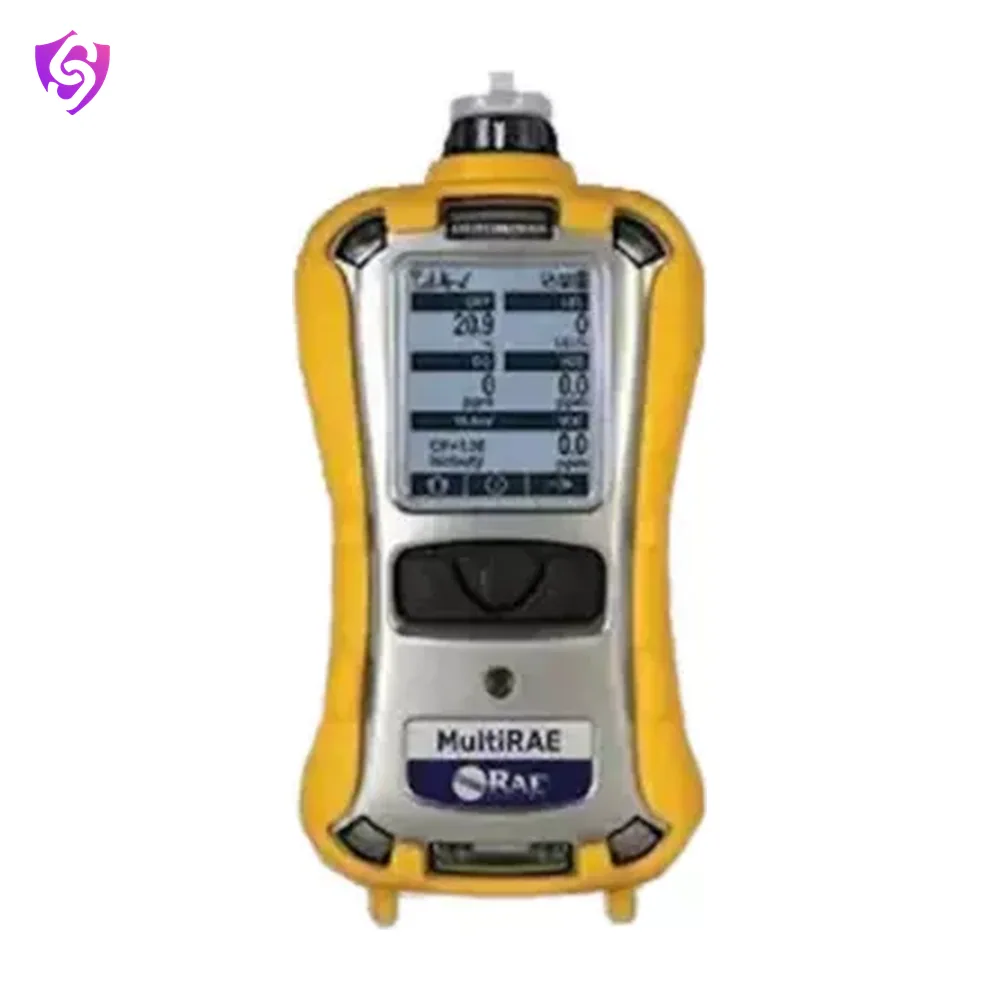

MultiRAE Portable Multi Gas Monitor
Elevate your gas detectors’ potential with Honeywell's expert maintenance services!
ATEXIECEX
DatasheetSpecifications, standards, care
- Test certificate available on request
Specifications
| Brand | Honeywell |
|---|---|
| Weight | 31 ounce av / 880 gram |
| Weight range | 880 g |
| Instrument Size | 7.6 in x 3.8 in x 2.6 in D / [193 mm x 96.5 mm x 66 mm] |
| Sensor Range | Carbon Dioxide (CO2) 0 to 50,000 ppm, Ammonia (NH3) 0 to 100 ppm, Carbon Monoxide (CO) 0 to 500 ppm, Carbon Monoxide (CO), EXT. RANGE 0 to 2,000 ppm, Carbon Monoxide (CO), H2-COMP. 0 to 2,000 ppm, Carbon Monoxide (CO) + 0 to 500 ppm, Hydrogen Sulfide (H2S) COMBO 0 to 200 ppm, Chlorine (CL2) 0 to 50 ppm, Chlorine Dioxide (CLO2) 0 to 1 ppm, Ethylene Oxide (ETO-A) 0 to 100 ppm, Ethylene Oxide (ETO-B) 0 to 10 ppm, Formaldehyde (HCHO) 0 to 10 ppm, Hydrogen Cynaide (HCN) 0 to 50 ppm, Hydrogen Sulfide (H2S) 0 to 100 ppm, Methyl Mercaptan (CH3-SH) 0 to 10 ppm, Nitric Oxide (NO) 0 to 250 ppm, Nitrogen Dioxide (NO2) 0 to 20 ppm, Oxygen (O2) 0 to 30% Vol., Oxygen (LIQ O2) 0 to 30% Vol., Phosphine (PH3) 0 to 20 ppm, Phosphine (PH3 H) 0 to 20 ppm, Sulfur Dioxide (SO2) 0 to 20 ppm / NH3 (0-100ppm), CO (0-2000ppm), H2S (0-200ppm), CL2 (0-50ppm), CLO2 (0-1ppm), ETO (0-100ppm), HCHO (0-10ppm), HCN (0-50ppm), CH3-SH (0-10ppm), NO (0-250ppm), NO2 (0-20ppm), O2 (0-30%vol), PH3 (0-20ppm), SO2 (0-20ppm), VOC (0-5000ppm), LEL (0-100%LEL), CO2 (0-50000ppm) |
| Humidity Range | 0 to 95% RH (Non-Condensing) / 0%-95% |
| Minimum Temperature | -20 degree Celsius / -4 degree Fahrenheit |
| Maximum Temperature | 122 degree Fahrenheit / 50 degree Celsius |
| Alarm Included | Yes |
| Series Name | MultiRAE |
| Languages | Arabic, Chinese, Czech, Danish, Dutch, English, French, German, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish, and Turkish |
| Alarm Type | Audible (95 dB @30 cm) / Vibrating / Visual (Flashing Bright Red LEDs) |
| Charging Time | 6 / 9 |
| Battery Run Time | 12-18 hours / AA Batteries (6 Hours) hours / Extended Duration Li-Ion (18 Hours) hours / Rechargeable Li-Ion (12 Hours) hours |
| Batteries Required | Yes |
| Batteries Included | Yes |
| Calibration Procedures | AutoRAE 2 Test / Bump Test |
| Calibration | Automatic with AutoRAE 2 Test and Calibration System or Manual |
| Standards | ATEX: 0575 II 1G Ex ia IIC T4 Ga / ATEX: 2G Ex ia d IIC T4 Gb with IR Sensor Installed / ATEX: I M1 Ex ia I Ma / CSA: Class I, Div 1, Group A, B, C, D, T4 / CSA: Class II, Div 1, Group E, F, G T85°C / IECEx/ANZEx: Ex ia I Ma / IECEx/ANZEx: Ex ia IIC T4 Ga / IECEx/ANZEx: Ex ia d IIC T4 Gb with IR Sensor Installed / IECEx: Ex ia IIC T4 Ga / IECEx: Ex ia d IIC T4 Gb with IR Sensor Installed / IECEx: I M1 Ex ia I Ma |
| Certifications - Performance | ISA-12.13.01 / LEL CSA C22.2 No. 152 / Performance Tests: MIL-STD-810G and 461F |
| Datalogging Interval | 1 min |
| Datalogging Capable | Yes |
| Datalogging | Continuous Datalogging (6 Months for 5 Sensors at 1 Min Intervals, 24/7) / User-Configurable Datalogging Intervals (from 1 to 3,600 Secs) |
| Display Type | Monochrome Graphic Display with Backlighting |
| Display Readout | Battery Status, Datalogging On/Off / Man Down Alarm On/Off / PID Measurement Gas and Correction Factor / Real-Time Reading of Gas Concentrations / Visual Compliance Indicator / Wireless On/Off and Reception Quality, STEL, TWA, Peak, and Minimum Values |
| Display Matrix | 128 x 160 |
| Display Included | Yes |
| User Options | 3 operation and programming keys (Mode, Y/+, and N/-). Multiple User Options can be selected / User-Configurable Datalogging Intervals |
| Sampling Pump Rate | 250 |
| Sampling Pump Range | 100ft (30m) |
| Sampling Pump Included | Yes |
Key features
- Optional integrated wireless
- 25 field-interchangeable sensor options, including PID, NDIR, and exotics like ammonia, chlorine, and formaldehyde
- Five local and remote alarms, including man down
- Dust-tight and waterproof (IP65-rated)
- Onboard gas libraries include 190 VOCs and 55 combustible gases
- Longest battery run-time in its class
- Intuitive, icon-driven interface
- Large buttons for easy navigation even with up to three glove layers
- Continuous data logging – six months for five sensors 24/7
- Fully automated bump testing and calibration with AutoRAE 2
- Device Management with Honeywell Sotera™ Express
Applications
- Confined space entry
- Oil, gas and petrochemical
- Wastewater and sewage
- Steel and chemical plants
Care and replacement
Keep sensors and filters clean, charge batteries as directed and record bump tests and calibrations.
