Honeywell

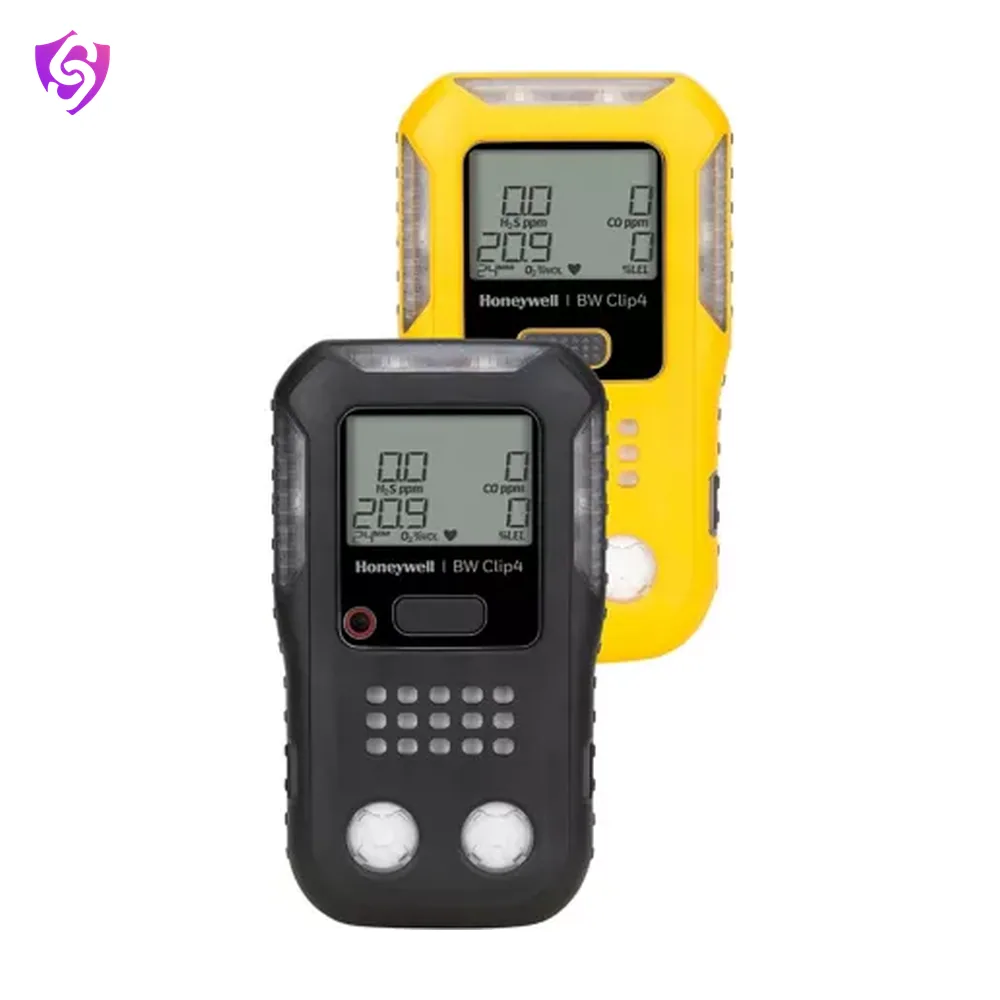

BW™ Clip4 Multi-Gas Detector

Name: Honeywell BW™ Clip4 Multi-Gas Detector
Brand: Honeywell

The latest in wearable 4-gas detection. Just clip it on and get the job done.

ATEXIECEX

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Weight	233 gram / 8.2 ounce av
Instrument Size	12.0 x 6.8 x 3.2 cm / 4.7 x 2.7 x 1.3 in.
Weight range	233 g gram
Humidity Range	5 to 95% RH (Non-Condensing) percent / 5%-95% percent
Sensor Range	H2S (0-100ppm), CO (0-1000ppm), O2 (0-25%vol), LEL (0-100%LEL) / Hydrogen Sulfide (H2S) 0-100 ppm, Carbon Monoxide (CO) 0-1,000 ppm, Oxygen (O2) 0-25% Vol., Combustible Gases (LEL) 0-100% LEL
Minimum Temperature	-20 degree Celsius / -4 degree Fahrenheit
Maximum Temperature	131 degree Fahrenheit / 50 degree Celsius
Alarm Settings	Low, High, STEL, TWA, OL (Over Limit)
Alarm Type	Audible (95 dB) / Vibrating / Visual
Alarm Included	Yes
Series Name	Honeywell BW Clip4
Batteries Required	Yes
Batteries Included	Yes
Battery Run Time	2 Years hours
Certifications - Performance	Class I, Div 1, Group A, B, C, D Class I, Zone 0, Group IIC, ATEX: II 1G Ex ia IIC T4 Ga, IECEx: Ex ia IIC T4 Ga, CE
Standards	ATEX: II 1G Ex ia IIC T4 Ga / CE European Conformity / IECEx: Ex ia IIC T4 Ga / UL: Class I, Div 1, Group A, B, C, D / UL: Class I, Zone 0, Group IIC
Datalogging Capable	Yes
Datalogging	70 most recent events
Display Included	Yes
Display Readout	Real-Time Gas Concentrations Shown on LCD
Display Type	LCD
User Options	Adjust STEL Period (5-15 min in 1 min Intervals) / Bump Test Interval / Calibration Due Date (1 to 365 Days, or Set to Zero for Off) / Calibration Interval / Calibration Span Levels / Individual Sensor Enable/Disable / Latching Alarms / Select Combustible Gases Measurement: 0-100% LEL or Methane Gas 0-5.0% v/v / Stealth Mode
Number of Sensors Included	4
Sensor Type	Infrared (IR)
Warranty	2 Years Including Sensors and Battery / Full two-year warranty including sensors and battery
Combustible Concentration	0-100% LEL, Methane Gas 0-5.0% v/v
Background Gas	Hydrogen Sulfide (H2S), Carbon Monoxide (CO), Oxygen (O2), Combustible Gases (LEL)
Combustible	Yes
Gas Type	H2S, CO, O2, LEL
Decibels	95 decibel
