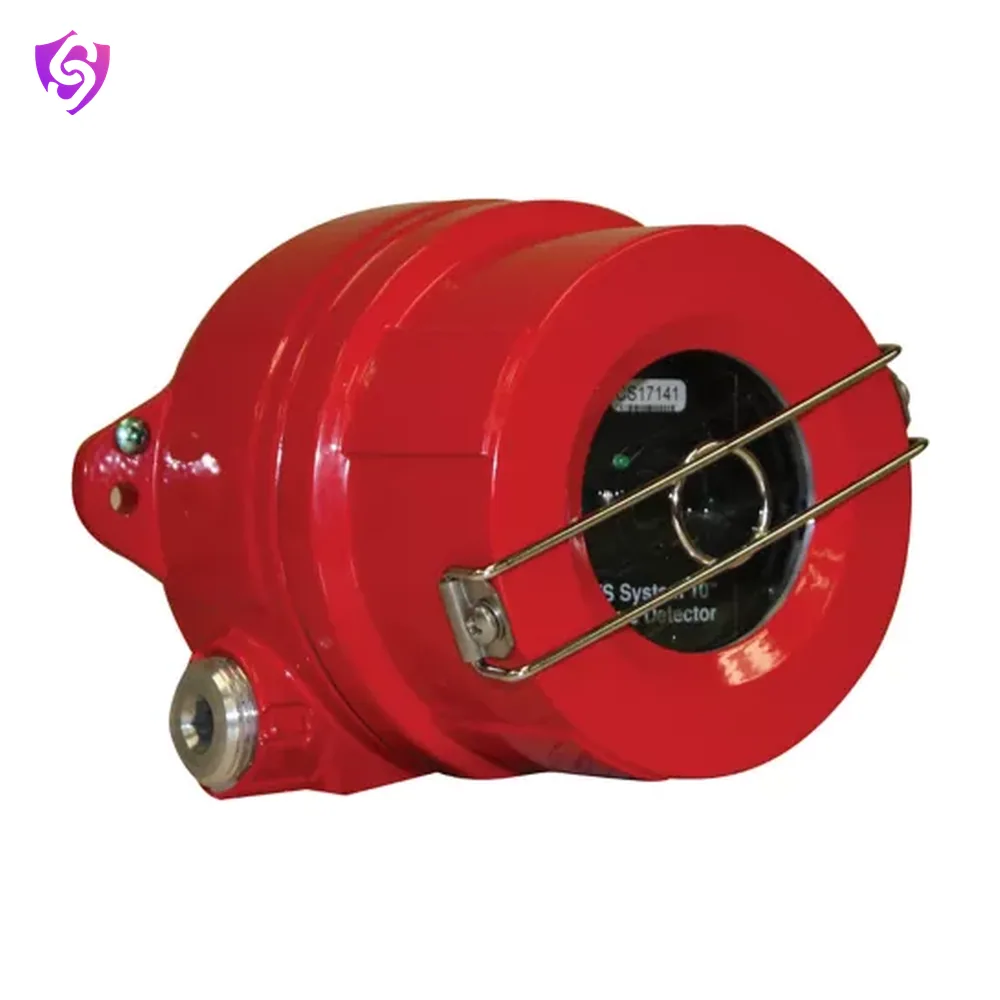

FS10 Flame Detector

A high-speed microprocessor based fire detection and process control system specially designed for liquid and powder coating applications, the FS System 10™ quickly detects the presence of a flame, reacts by initiating a shutdown of the electrostatic finishing process in a matter of milliseconds: and effectively interr

DatasheetSpecifications, standards, care

Test certificate available on request

Specifications

Brand	Honeywell
Warranty	2 Years from Date of Shipping
Alarm Included	Yes
Display Type	LCD
Filter Included	No
Relay Included	Yes
Sampling Pump Included	No
Replacement Parts	Electronics Module for Model FS10-R30s
Weight range	3.8 lbs
Dimension	Dia: 4.81 in D: 4.65 in
Humidity Range	10 to 90% RH (Non-Condensing)
Number of Analog Outputs	1
Analog Output Signal Type	mA
Filter Required	No
Relay Rated Load	1A @24V DC
Relay Output Configuration	SPST
Relay Circuit Resting Configuration	NO
Sensing Method	Infrared
Wireless Enabled	No
Output Signal Type	mA

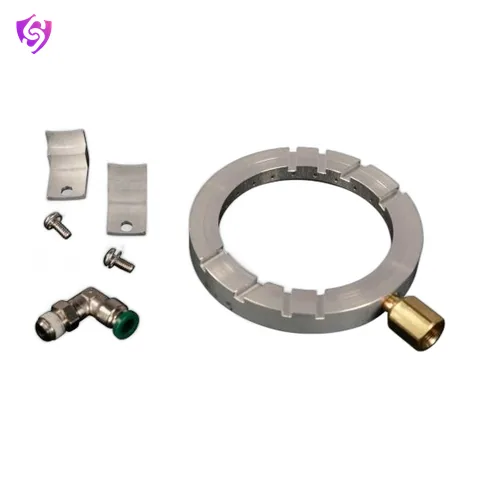

Mounting	Swivel Bracket Assembly (Optional)
Spectral Sensitivity	Near Band IR: 0.7 to 1.1 microns / Visible: 400 to 700 Nanometers / Wide Band IR: 0.7 to 3.5 microns
Sensitivity	45 ft and 30 ft to 1 sq.ft Gasoline Fire
Field of View	90° (± 45° Horizontal and Vertical)
Conduit Entries	(2) 3/4 in NPT
Minimum Temperature	-40˚C
Analog Output Signal Current	4 mA
Operating Current	85 mA
Power Requirement	24 VDC
Batteries Required	Yes
Batteries Included	Yes

Key features

Multi-Spectral digital electro-optical infrared fire detector
Immune to false alarms caused by arcs or corona discharges
Built-in automatic 'through the lens' self-test
Not sensitive to background radiant energy sources such as paint heaters
Not affected by absorbing smoke or paint solvent mist in liquid pant spray booths
Sees through paint, powder or oil residue on detector’s lens
Digital communications with RS-485 interface
FirePic™: retrieval of recorded pre-fire data
SnapShot™: dynamic graphical display of what the detector sees
